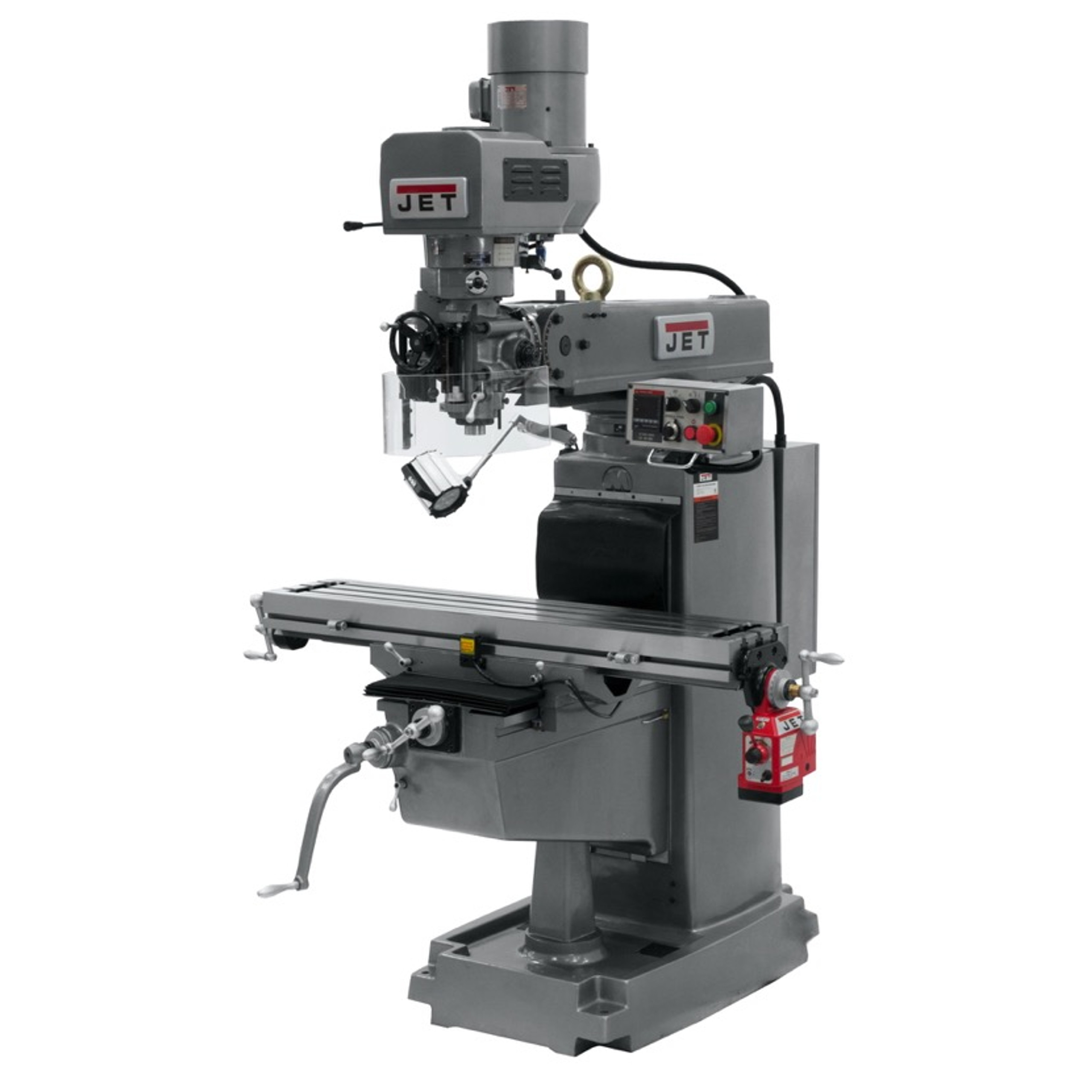

JPW Industries 690601 | JTM-1050EVS2/230 Mill With X-Axis Powerfeed

Constructed using the Meehanite casting process, the JTM-1050EVS2/230, 10" x 50" Electronic Variable Speed Milling Machine provides consistent and reliable operation. The newly designed column and base incorporates a rigid, robust design that is easily leveled without lifting the machine. JET Mills have features you've come to expect and are backed by the industry-leading JET Two Year Warranty

JPW Industries - 690601 - Features

• JET designed Certified Meehanite casting with enhanced ribbing ensures rigidity and tolerance retention
• Swing away control box houses an e-stop and puts all controls at the operators fingertips
• The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor
• Automatic oiler releases 3 to 6 cc/cy of lubrication at adjustable time intervals
• For added safety, the heavy-duty spindle break stops the spindle and interrupts the power, preventing accidental start-ups
• The electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessories
• CSA/CUS Certified
• Class 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applications
• Spindle head is internally cooled extending bearing, belt and motor life
• Table and ways are hardened up to 54 HRC and precision ground for greater accuracy
• The X and Y-Axis are coated with Turcite-B for reduced vibration and smooth movements
• Swing away safety shield
• LED work lamp
• Chip pan
• Dual locks on all moveable surfaces
• Way covers
• Drawbar
• Tool box with tools

JPW Industries - 690601 - Product Categories

• JET Metalworking
• Milling
• Vertical Mills
• 10 x 50 EVS2

JPW Industries - 690601 - Specifications

Brand Name	JET (JPW Industries)
Manufacturer Part Number	690601
Item Description	JTM-1050EVS2/230 Mill With X-Axis Powerfeed
Style (Type)	EVS
Powerfeed	X-Axis
Spindle Taper (In. x TPI)	R-8
Table Size (L x W) (In.)	10 x 50
Quill Diameter (In.)	3-3/8
Number of Spindle Speeds	Variable
Range of Spindle Speeds (RPM)	60 - 4,500
Quill Down Feed Rates (IPR)	.0015 - .003 - .006
Spindle Travel (In.)	5
Head Movement (Deg.)	90R & L 45 F & B
Max Distance Spindle to Table (In.)	20-3/4
Distance Spindle to Column (Max.) (In.)	26-3/4
Distance Spindle to Column (Min.) (In.)	4-3/4
Collet Capacity	1/8 - 7/8
Table Longitudinal Travel (In.)	35-1/3
Table Longitudinal Travel With Powerfeed (In.)	29-7/8
Table Cross Travel (In.)	14-3/4
T-Slots Number and Size (In.)	3 and 5/8
T-Slot Centers (In.)	2-1/2
Work Table Weight Capacity (Lbs.)	840
Travel of Knee (In.)	16-1/8
Travel of Ram (In.)	15-7/8
Saddle Width (In.)	11-1/2
Column Width (In.)	20
Inverter Type	Delta, B
Motor (HP)	3 HP, 230V, 3Ph
Overall Dimensions (L x W x H) (In.)	66 x 63 x 87
Weight (Lbs.)	2,860
Width	63.0000
Weight	2860.0000
Length	66.0000
Height	87.0000
