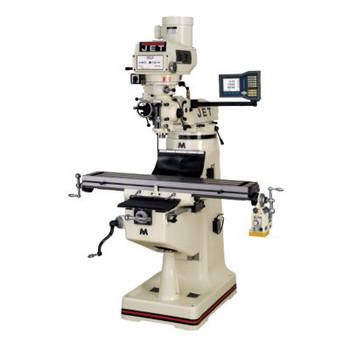

JPW Industries 690402 | JTM-4VS-1 Mill with 411 DRO and X-Axis TPFA
JPW Industries 690402 | JTM-4VS-1 Mill with 411 DRO and X-Axis TPFA
Accept Credit Cards
Official PayPal Seal

JPW Industries 690402 | JTM-4VS-1 Mill with 411 DRO and X-Axis TPFA

assets/images/jpw-120.png
Availability: In Stock
Part Number: WC690402
0 Review(s)
Write a Review
$13,406.86
Retail Price:$14,153.99
Your Savings:$747.13(5%)
Have a question or need a quote?

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

JPW Industries 690402 | JTM-4VS-1 Mill with 411 DRO and X-Axis TPFA


https://www.autotoolworld.com/assets/icons/features.jpg

JPW Industries - 690402 - Features

  • Meehanite casting
  • Precision bored and honed milling head
  • Large diameter quill is chromed
  • High precision Class 7 spindle bearings
  • Chrome plated motor shaft with lower bearing support
  • Spindle head is internally cooled
  • Satin chrome finished dials
  • Heavy-duty splined motor drive
  • One-piece quill pinion and shaft
  • Three-stage power downfeed with automatic stop
  • Heavy-duty spindle brake
  • Locks on all movable surfaces
  • Precision hardened and ground ways and table
  • Adjustable gibs throughout
  • Internal coolant tank built into casting base for use with coolant system (Coolant pump not included)
  • Includes: JTM-4VS-1 Mill with 411 DRO and X-Axis TPFA - 690402
  • One-Shot Lubrication System
  • Way Covers
  • Draw Bar
  • Tool Box with Tools
  • Tolerance Test Sheet
  • Specifications
  • Length: 63 in.
  • Width: 65.5 in.
  • Height: 85 in.
  • Weight: 2500 lbs.
  • Collet Capacity: 1/8-in - 7/8-in
  • Distance Spindle to Column: 19-in
  • Head Movement (deg.): 90 Degrees Left and Right & 45 Degrees Front and Back
  • Motor: 2HP, 115/230V, 1Ph, Prewired 230V
  • Number of Spindle speeds: Variable
  • Quill Diameter: 3-3/8-in
  • Quill Down feed Rates (IPR): 0.0015 - 0.003 - 0.006
  • Quill Travel: 5-in
  • Spindle Taper: R-8
  • T-Slot Centers: 2-1/2-in
  • T-Slots Number and Size: 3-in and 5/8-in
  • Table Cross Travel: 12-in
  • Table Longitudinal Travel: 34-in
  • Table Size: 9-in x 49-in
  • Travel of Knee: 16-in
  • Travel of Ram: 14-1/2-in



https://www.autotoolworld.com/assets/icons/specs.jpg

JPW Industries - 690402 - Specifications

Brand NameJPW Industries
Manufacturer Part Number690402
Item DescriptionJTM-4VS-1 Mill with 411 DRO and X-Axis TPFA
