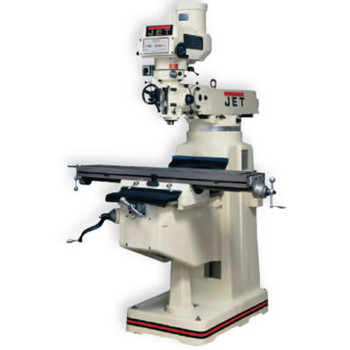

JPW Industries 690322 | JTM-1054R Mill with 300S DRO and X-TPFA
JPW Industries 690322 | JTM-1054R Mill with 300S DRO and X-TPFA
Accept Credit Cards
Official PayPal Seal

JPW Industries 690322 | JTM-1054R Mill with 300S DRO and X-TPFA

assets/images/jpw-120.png
Availability: In Stock
Part Number: WC690322
0 Review(s)
Write a Review
$19,779.74
Retail Price:$20,882.01
Your Savings:$1,102.27(5%)
Have a question or need a quote?

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

JPW Industries 690322 | JTM-1054R Mill with 300S DRO and X-TPFA


https://www.autotoolworld.com/assets/icons/features.jpg

JPW Industries - 690322 - Features

  • Meehanite casting
  • Hardened and ground table certified to be 52C Rockwell hardness
  • Chrome lead screws and Turcite B on X and Y axis
  • Boxed style ways on Y and Z axis
  • Satin chrome finished dials
  • Precision bored and honed milling head
  • Large diameter quill is chromed
  • High precision Class 7 spindle bearings
  • Auxiliary fan cools the spindle head
  • Chrome plated motor shaft has lower bearing support
  • Motor pulleys are ground to increase belt lift
  • One piece quill pinion and shaft
  • Three stage power downfeed with automatic stop
  • Heavy duty spindle brake
  • Locks on all movable surfaces
  • Internal coolant tank built into base for use with coolant system (coolant pump not included)
  • Collet Capacity: 1/8-in - 7/8-in
  • Distance Spindle to Column: 26-in
  • Head Movement (deg.): 90 degrees; R and L
  • Max Distance Spindle to Table: 20-in
  • Number of Spindle Speeds: Variable
  • Quill Diameter: 3-3/8-in
  • Quill Travel: 5-in
  • Quill Travel w/ Powerfeed Engaged: 5-in
  • Spindle Taper: R-8
  • T-Slot Centers: 2-1/2-in
  • T-Slots Number and Size: 3 and 5/8-in
  • Table Cross Travel: 12-in
  • Table Longitudinal Travel: 38-in
  • Table Size: 10-in x 54-in
  • Travel of Knee: 17-1/2-in
  • Travel of Ram: 20-1/2-in



https://www.autotoolworld.com/assets/icons/specs.jpg

JPW Industries - 690322 - Specifications

Brand NameJPW Industries
Manufacturer Part Number690322
Item DescriptionJTM-1054R Mill with 300S DRO and X-TPFA
