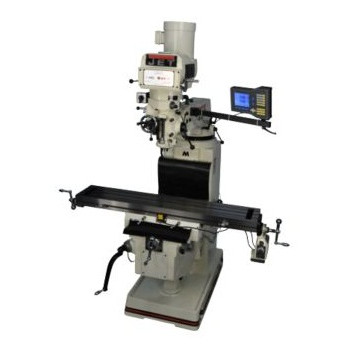

JPW Industries 690270 | JTM-1054R, Mill with 411 DRO and X-TPFA
JPW Industries 690270 | JTM-1054R, Mill with 411 DRO and X-TPFA
Accept Credit Cards
Official PayPal Seal

JPW Industries 690270 | JTM-1054R, Mill with 411 DRO and X-TPFA

assets/images/jpw-120.png
Availability: In Stock
Part Number: WC690270
0 Review(s)
Write a Review
$18,711.05
Retail Price:$19,753.76
Your Savings:$1,042.71(5%)
Have a question or need a quote?

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

JPW Industries 690270 | JTM-1054R, Mill with 411 DRO and X-TPFA


https://www.autotoolworld.com/assets/icons/features.jpg

JPW Industries - 690270 - Features

  • Meehanite casting, hardened and ground table certified to be 52C Rockwell hardness
  • Chrome lead screws on X and Y axis
  • Boxed style ways on Y and Z axis
  • Turcite B on X and Y axis
  • Satin chrome finished dials, and large diameter quill is chromed
  • Precision bored and honed milling head
  • High precision Class 7 spindle bearings
  • Auxiliary fan cools the spindle head
  • Chrome plated motor shaft has lower bearing support
  • Motor pulleys are ground to increase belt life
  • One piece quill pinion and shaft
  • Return To Top
  • Weight: 3400 lbs.
  • Collet Capacity: 1/8 - 7/8
  • Cross Travel (Y-axis): 17-in
  • Distance Spindle to Column: 26-in
  • Distance Spindle to Table: 20-in
  • Head Movement: 90 Degrees Right and Left
  • Longitudinal Table Travel (X-axis): 38-in
  • Motor: 5 HP, 3 Ph 230V/460V
  • Number of Spindle Speeds: Variable
  • Number of T-Slots: 3
  • Pre-Wired: 230V
  • Quill Diameter: 4-1/8-in
  • Quill Down Feed Rates: 0.0015 - 0.003 - 0.006 IPR
  • Quill Travel: 5-in
  • Range of Spindle Speeds: 80 - 3,800 RPM
  • Spindle Taper: R-8
  • T-Slot Centers: 2-1/2-in
  • T-Slot Size: 5/8-in
  • Table Size: 10-in x 54-in
  • Travel of Knee: 17-1/2-in
  • Travel of Ram: 20-1/2-in
  • Worktable Weight Capacity: 800 lbs.



https://www.autotoolworld.com/assets/icons/specs.jpg

JPW Industries - 690270 - Specifications

Brand NameJPW Industries
Manufacturer Part Number690270
Item DescriptionJTM-1054R, Mill with 411 DRO and X-TPFA
