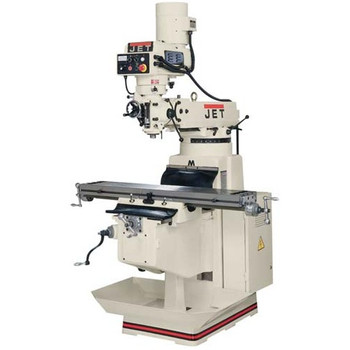

JPW Industries 690155 | JTM-1050EVS/230, Mill with 3-axis ACU-RITE 200S DRO Knee and X & Y Powerfeed Installed
JPW Industries 690155 | JTM-1050EVS/230, Mill with 3-axis ACU-RITE 200S DRO Knee and X & Y Powerfeed Installed
Accept Credit Cards
Official PayPal Seal

JPW Industries 690155 | JTM-1050EVS/230, Mill with 3-axis ACU-RITE 200S DRO Knee and X & Y Powerfeed Installed

assets/images/jpw-120.png
Availability: In Stock
Part Number: WC690155
0 Review(s)
Write a Review
$20,157.26
Retail Price:$21,280.56
Your Savings:$1,123.30(5%)
Have a question or need a quote?

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

JPW Industries 690155 | JTM-1050EVS/230, Mill with 3-axis ACU-RITE 200S DRO Knee and X & Y Powerfeed Installed


https://www.autotoolworld.com/assets/icons/features.jpg

JPW Industries - 690155 - Features

  • Runs quieter and smoother than conventional variable speed head mills
  • Low maintenance head has less moving parts
  • No belt slippage allows more power at the spindle
  • Meehanite casting, hardened and ground table
  • Chrome lead screws on X and Y axis, and chrome plated motor shaft with bearing support at end
  • Turcite B on X and Y axis
  • Large diameter quill is chromed
  • High precision Class 7 spindle bearings
  • No fuse breaker power connection
  • Heavy duty motor drive
  • One piece quill pinion and shaft
  • Three stage power downfeed with automatic stop
  • Heavy duty spindle brake
  • Double locks on all moveable surfaces
  • Hardened and ground square vertical knee ways and cross ways
  • Adjustable gibs throughout
  • Internal coolant tank built into base for use with coolant system (coolant pump not included)
  • Weight: 3000 lbs.
  • Collet Capacity: 1/8 - 7/8
  • Cross Travel (Y-axis): 15-1/4-in
  • Distance Spindle to Column: 26-in
  • Distance Spindle to Table: 19-in
  • Head Movement: 90 Degrees Right and Left; 45 Degrees Front and Back
  • Longitudinal Table Travel (X-axis): 30-in
  • Motor: 3 HP, 3 Ph 230V Only
  • Number of Spindle Speeds: variable
  • Number of T-Slots: 3
  • Pre-Wired: 230V
  • Quill Diameter: 3-3/8-in
  • Quill Down Feed Rates: 0.0015 - 0.003 - 0.006 IPR
  • Range of Spindle Speeds: 10 - 3,600 RPM
  • Spindle Taper: R-8
  • T-Slot Centers: 2-1/2-in
  • T-Slot Size: 5/8-in
  • Table Size: 10-in x 50-in
  • Travel of Knee: 14-1/4-in
  • Travel of Ram: 20-1/2-in
  • Worktable Weight Capacity: 720 lbs.



https://www.autotoolworld.com/assets/icons/specs.jpg

JPW Industries - 690155 - Specifications

Brand NameJPW Industries
Manufacturer Part Number690155
Item DescriptionJTM-1050EVS/230, Mill with 3-axis ACU-RITE 200S DRO Knee and X & Y Powerfeed Installed
