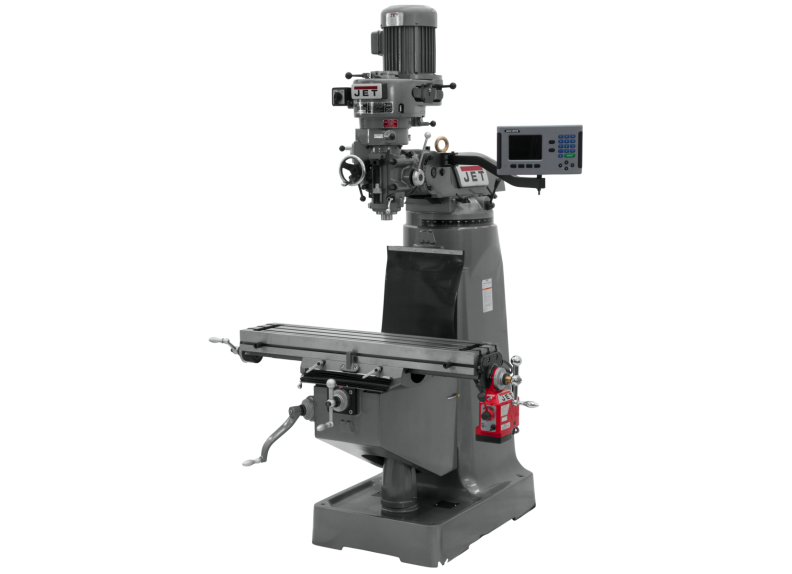

JPW Industries 690114-2 | JTM-2 Mill with ACU-RITE 203 DRO and X-Axis Powerfeed
JPW Industries 690114-2 | JTM-2 Mill with ACU-RITE 203 DRO and X-Axis Powerfeed
Accept Credit Cards
Official PayPal Seal

JPW Industries 690114-2 | JTM-2 Mill with ACU-RITE 203 DRO and X-Axis Powerfeed

assets/images/jpw-120.png
Availability: In Stock
Part Number: JT9-690114-2
0 Review(s)
Write a Review
$19,421.85
Retail Price:$20,943.08
Your Savings:$1,521.23(7%)
Have a question or need a quote?

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

JPW Industries 690114-2 | JTM-2 Mill with ACU-RITE 203 DRO and X-Axis Powerfeed

Three-stage power down feed with auto stop, high precision Class 7 spindle bearings and the rugged stability of Meehanite® castings ensures you get everything you need from the JTM-1 and 2 models. The internally cooled spindle head prevents seizing, and JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty




https://www.alldataresource.com/assets/images_commscope/features.jpg

JPW Industries - 690114-2 - Features

  • Certified Meehanite® castings
  • Heavy duty splined motor drive
  • Internal coolant tank built into base for use with coolant system (Coolant pump not included)
  • Large Diameter quill is chromed
  • One shot lubrication system
  • Precision bored and honed milling head
  • Precision hardened and ground ways
  • Spindle head is internally cooled
  • Three stage power downfeed with automatic stop
  • Tolerance test sheet included



https://www.autotoolworld.com/assets/icons/specs.jpg

JPW Industries - 690114-2 - Specifications

Brand NameJPW Industries
Item DescriptionJTM-2 Mill with ACU-RITE 203 DRO and X-Axis Powerfeed
Stock NumberJT9-690114-2
Collet Capacity1/8 - 7/8
Distance Spindle to Column (Max.) (In.)19
Max Distance Spindle to Table (In.)17-1/2
Model NumberJTM-2
Motor (HP)2 HP, 115/230V, 1Ph
Number of Axis2
Number of Spindle Speeds8
Overall Dimensions (L x W x H) (In.)57 x 64 x 82
PowerfeedX-Axis
Prop 65Cancer and Reproductive Harm
Quill Diameter (In.)3-3/8
Quill Down Feed Rates (IPR).0015 - .003 - .006
Range of Spindle Speeds (RPM)80 - 2,720
Spindle Taper (In. x TPI)R-8
Spindle Travel (In.)5
Style (Type)Step Pulley R8
T-Slot Centers (In.)2-1/2
Table Cross Travel (In.)12-1/2
Table Longitudinal Travel (In.)23-7/8
Table Longitudinal Travel With Powerfeed (In.)20-2/7
Table Size (L x W) (In.)9 x 42
Travel of Knee (In.)14-1/2
Travel of Ram (In.)13-3/8
Warranty2 Year
Work Table Weight Capacity (Lbs.)550
Gross Weight2200.0
Net weight2200.0



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

JPW Industries - 690114-2 - Documents and Downloads

JPW Industries 690114-2 Specification SheetClick to View
