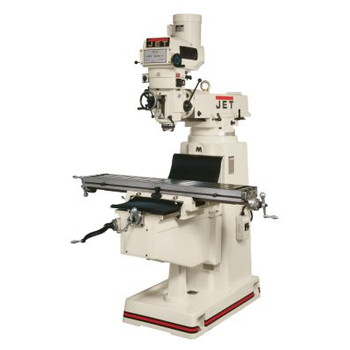

JPW Industries 690055 | JTM-1055, 10 in. x 54 in. Table, #40 Taper, 5HP, 3Ph, 230/460V

assets/images/jpw-120.png
Availability: In Stock
Part Number: WC690055
0 Review(s)
Write a Review
$16,038.30
Retail Price:$16,932.08
Your Savings:$893.78(5%)
Have a question or need a quote?

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

JPW Industries 690055 | JTM-1055, 10 in. x 54 in. Table, #40 Taper, 5HP, 3Ph, 230/460V


https://www.autotoolworld.com/assets/icons/features.jpg

JPW Industries - 690055 - Features

  • Meehanite casting
  • Hardened and ground table certified to be 52C Rockwell hardness
  • Chrome lead screws on X and Y axis
  • Boxed style ways on Y and Z axis
  • Turcite B on X and Y axis
  • Satin chrome finished dials
  • Precision bored and honed milling head
  • Large diameter quill is chromed
  • High precision Class 7 spindle bearings
  • Auxiliary fan cools the spindle head
  • Chrome plated motor shaft has lower bearing support
  • Motor pulleys are ground to increase belt lift
  • One piece quill pinion and shaft
  • Three stage power downfeed with automatic stop
  • Heavy duty spindle brake
  • Locks on all movable surfaces
  • Internal coolant tank built into base for use with coolant system (coolant pump not included)
  • Includes: JTM-1055, 10-in x 54-in Table, #40 Taper, 5HP, 3Ph, 230/460V - 690055
  • One Shot Lubrication System
  • Way Covers
  • Draw Bar
  • Tool Box
  • Specifications
  • Return To Top
  • Collet Capacity: 1/8-in - 7/8-in
  • Distance Spindle to Column: 26-in (max)
  • Head Movement (deg.): 90 degrees R & L
  • Max Distance Spindle to Table: 20-in
  • Motor: 5 HP, 3 Ph 230/460V
  • Number of Spindle Speeds: Variable
  • Pre-Wired: 230V
  • Quill Diameter: 4-1/8-in
  • Quill Down feed Rates (IPR): .0015 - .003 - .006
  • Spindle Taper: NST #40
  • T-Slot Centers: 2-1/2-in
  • T-Slots Number and Size: 3 and 5/8-in
  • Table Cross Travel: 17-in
  • Table Longitudinal Travel: 38-in
  • Table Size: 10-in x 54-in
  • Travel of Knee: 17-1/2-in
  • Travel of Ram: 20-1/2-in
  • Work table Weight Capacity: 800 lbs.



https://www.autotoolworld.com/assets/icons/specs.jpg

JPW Industries - 690055 - Specifications

Brand NameJPW Industries
Manufacturer Part Number690055
Item DescriptionJTM-1055, 10 in. x 54 in. Table, #40 Taper, 5HP, 3Ph, 230/460V
