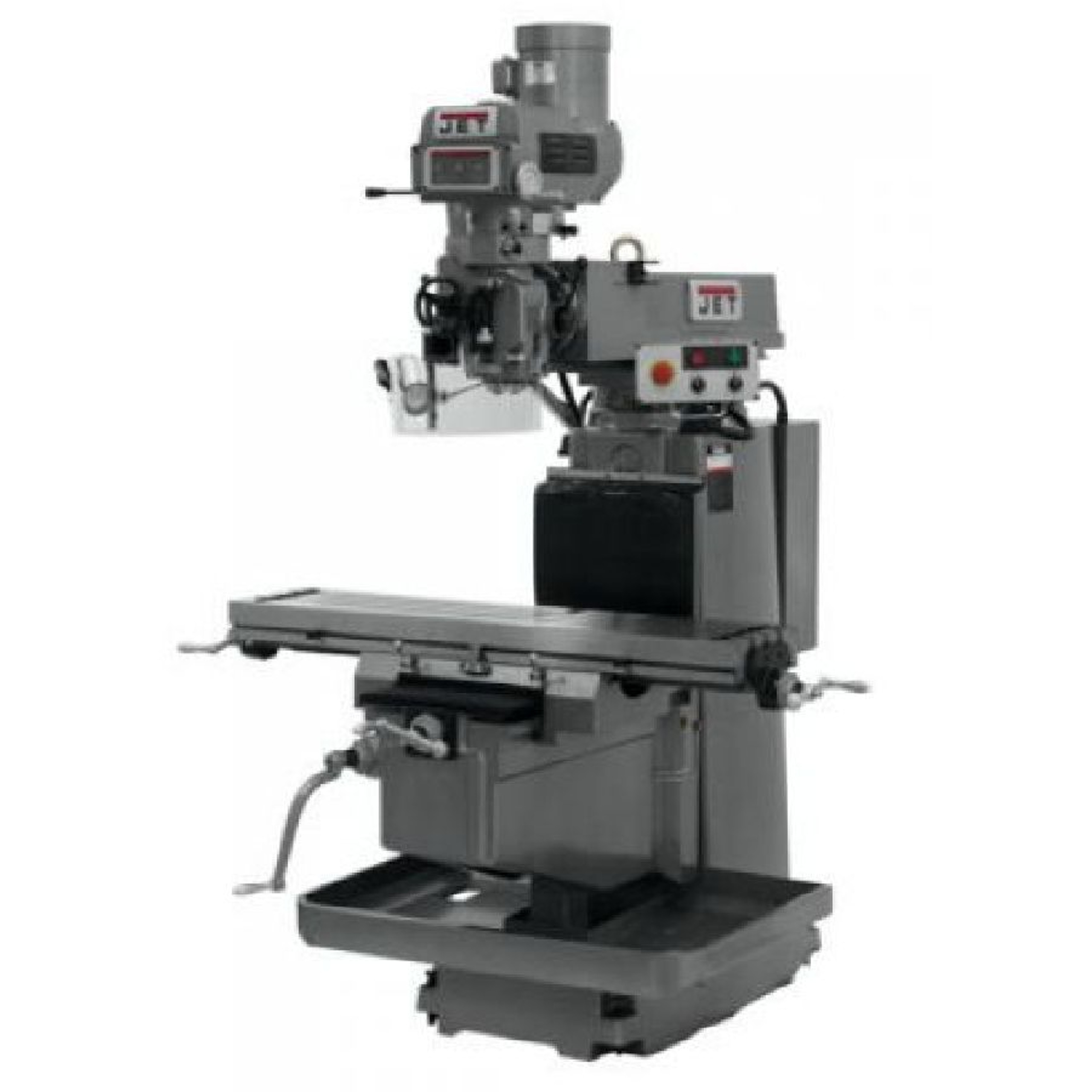

JPW Industries 690025 | JTM-1254VS Variable Speed Vertical Mill Machine 230/460V, 3Ph

The JET JTM-1254RVS and JTM-1254VS combine durability, strength and precision engineering, resulting in 12" x 54" Variable Speed Vertical Milling Machines that turn out high quality components. Designed for ease of use, Jet Mills provide ongoing automatic lubrication and quick nut spindle feed along with the JET exclusive new casting, providing the end-user with an easier solution to leveling the machine without raising it up off the floor. These heavy-duty mills are offered in both R-8 & NT-40 Spindles with all the features you've come to expect backed by the industry-leading JET Two Year Warranty.

JPW Industries - 690025 - Features

• Certified Meehanite Castings
• Precision bored and honed milling head
• High precision Class 7 spindle bearings
• Quick Spindle Feed Nut
• Three-stage power downfeed with automatic stop
• Heavy-duty spindle brake
• Precision hardened and ground ways and table
• Three Precision ground t-slots
• Turcite B on X & Y Axis
• Adjustable gibs throughout
• CSA/CUS: Following strict guidelines and electrical requirements, these JET Mills are CSA/CUS certified
• Spindle Guard
• Spindle Brake for rapid stopping of the spindle
• Automatic Lubrication every 180 minutes with a flow of 3-6cc reduces maintenance
• Quick nut for spindle feed
• JET exclusive new casting provides the end-user an easier solution to leveling the machine without raising it up off the floor
• Way covers
• STANDARD EQUIPEMENT
• Spindle Safety Guard
• Led Machine Lamp
• Dual Locks on All Moveable Surfaces
• Chip Pan
• Draw bar
• Tool box with tools

JPW Industries - 690025 - Product Categories

• JET Metalworking
• Milling
• Vertical Mills
• 12 x 54 Variable Speed

JPW Industries - 690025 - Specifications

Brand Name	JET (JPW Industries)
Manufacturer Part Number	690025
Item Description	JTM-1254VS Variable Speed Vertical Mill Machine 230/460V, 3Ph
Style (Type)	Variable Speed NT40
Spindle Taper (In. x TPI)	NST #40
Table Size (L x W) (In.)	12 x 54
Quill Diameter (In.)	4-1/8
Number of Spindle Speeds	Variable
Range of Spindle Speeds (RPM)	80 - 3,800
Quill Down Feed Rates (IPR)	.0015–.003–.008
Spindle Travel (In.)	5
Head Movement (Deg.)	90R & L
Max Distance Spindle to Table (In.)	23
Distance Spindle to Column (Max.) (In.)	27-3/4
Distance Spindle to Column (Min.) (In.)	7-1/2
Table Longitudinal Travel (In.)	33 7/8
Table Longitudinal Travel With Powerfeed (In.)	33-7/8
Table Cross Travel (In.)	15-1/3
T-Slots Number and Size (In.)	3 and 5/8
T-Slot Centers (In.)	2-1/2
Work Table Weight Capacity (Lbs.)	925
Travel of Knee (In.)	19-1/4
Travel of Ram (In.)	25
Saddle Width (In.)	25-5/8
Column Width (In.)	14 1/4
Motor (HP)	5HP, 230/460V, 3Ph
Prewired (V.)	230V, **SURCHARGE APPLIES FOR 460V RE-WIRE
Overall Dimensions (L x W x H) (In.)	92-1/8 x 79-7/8 x 104-1/4
Weight (Lbs.)	3969
Width	79.8750
Weight	3969.0000
Height	104.2500
Length	92.1250
