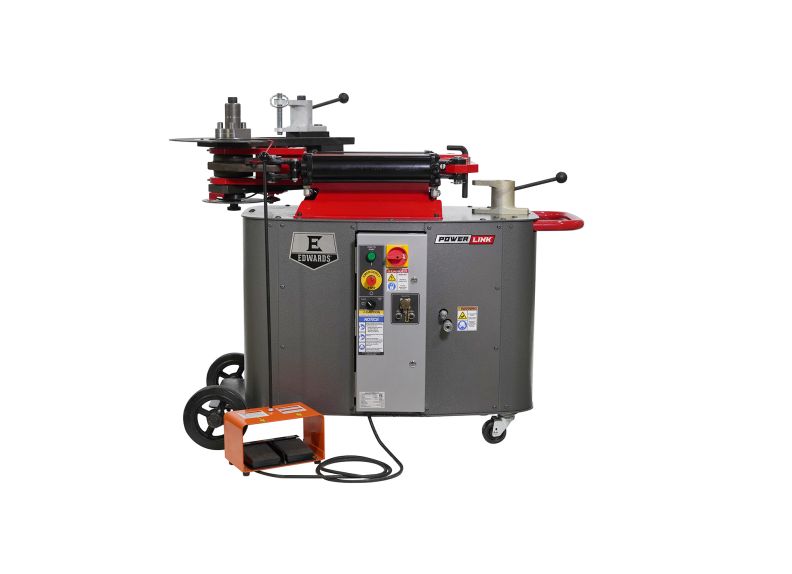

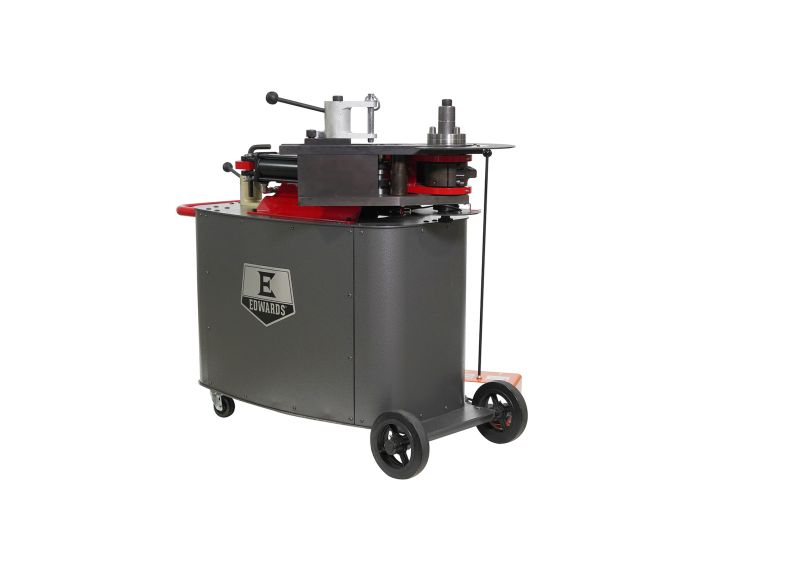

JPW Industries 62 | HPST2375 Rotary Draw Bender PowerLink Source

Our newest innovation to the Edwards PowerLink System makes this rotary draw bender a power source for the complete lineup of Edwards PowerLink Hydraulic Tools. Powered by a 120v 2HP motor, this dual cylinder rotary draw style bender produces up to a 180° bend in one stroke. The open-style drop on tooling, adjustable auto stop, and heavy-duty mobile cart ensures this hydraulic rotary draw bender is simple to use and improves operator productivity. Whether you are bending an ornamental piece or a complete vehicle chassis our new rotary draw bender is the solution. Simply Plug In & Power Up any of our Edwards Hydraulic Tools into your HPST2375 rotary draw bender and turn your shop into a fabricator’s paradise. Things to Know Before Purchase All capacities are based on A53 grade A (mild steel) 48,000 psi tensile materials; heavy wall and high tensile materials may reduce rotary draw bending machine capacity. Consult Edwards Manufacturing to review material specifications.

JPW Industries - 62 - Features

• The first non Ironworker tool including The PowerLink™ System. Our trademarked system increases your capabilities by turning your rotary draw pipe and tube bender into a power source for our line of Hydraulic Tools.
• 120V 2HP Motor can be plugged in any standard garage/shop electrical outlet.
• Dual Cylinder Rotary Draw Bender Produces Consistent 180° Bends in One Stroke.
• Open Style Drop on Tooling for Quick and Easy Die Changes.
• Heavy Duty Mobile Cart for Mobility Around Your Shop and Ease of Storage.
• Auto Stop Feature can be set to Desired Bend for accuracy and Repeatability.
• Large Easy to Read Degree Wheel.
• Easy-to-use foot pedal controls.
• Hydraulic rotary draw pipe and tube bender is made in the U.S.A.

JPW Industries - 62 - Specifications

Brand Name	JPW Industries
Item Description	HPST2375 Rotary Draw Bender PowerLink Source
Stock Number	ED1-62
Model Number	HPST2375
Aluminum Pipe Schedule 40	2-1/2" (.156")
Chromoly Round Tube Wall	2" (.1/8")
Input Power	120V
Minimum Center line Radius	1/2"
Minimum OD	0.25
Prop 65	Cancer and Reproductive Harm
Round Capacity (Mild Steel) (In.)	1
Round Pipe Sch. 40 Capacity (In.)	2
Round Tube Capacity (In.)	2-1/2"
Square Tube Capacity (In.)	2" (.125)
Warranty	1 Year
Gross Weight	770.0
Net weight	770.0
