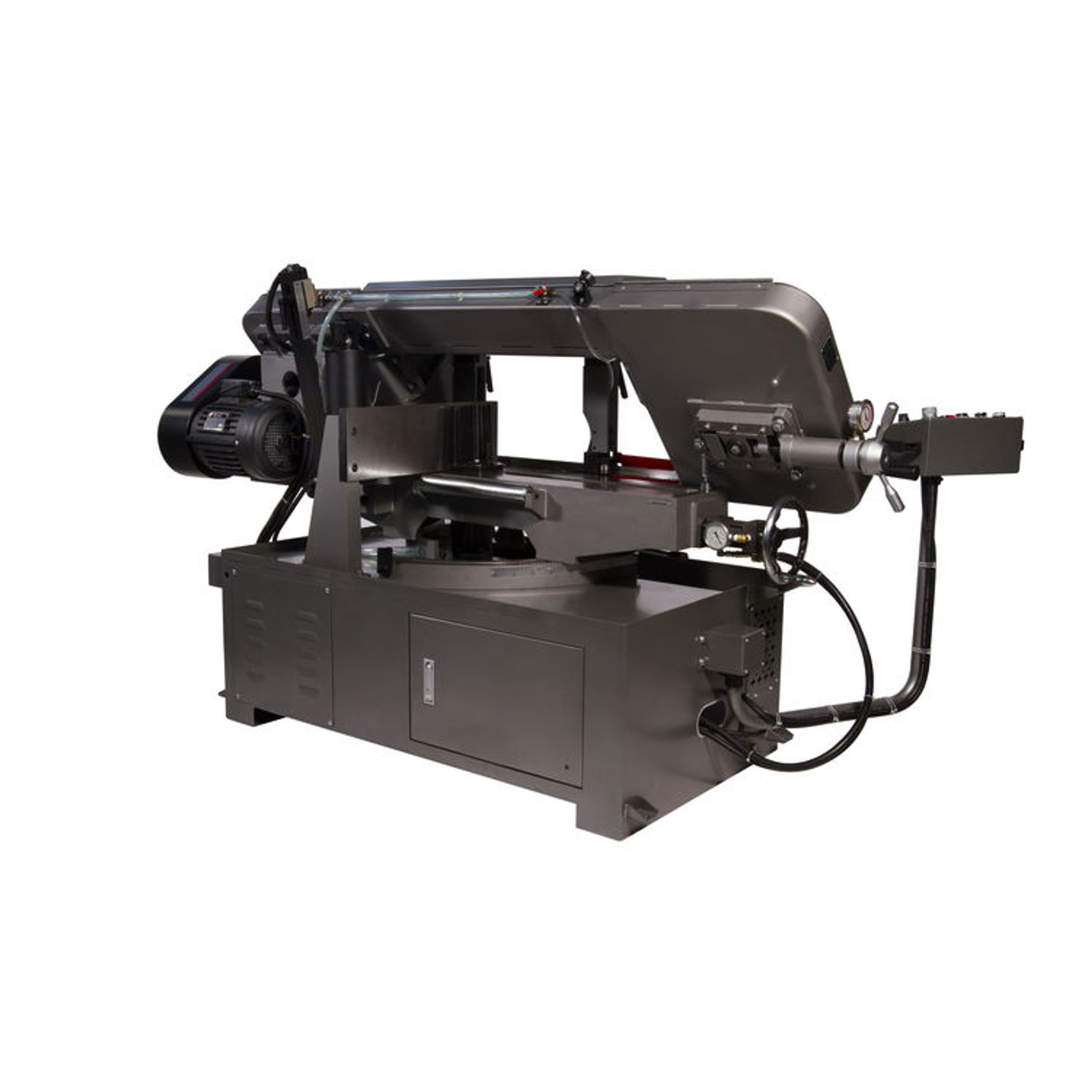

JPW Industries 424475 | HBS-1220MSAH, 12" x 20" Semi-Automatic Mitering Variable Speed Bandsaw with Hydraulic

This JET large capacity , semi-automatic horizontal bandsaw is loaded with features that allow the operator the ability to fine tune the blade speed easily and quickly on a convenient swing away control panel. The sturdy head raises automatic while the mitering head allows the user to cut up to a 45 angle. The hydraulic downfeed control is easily adjusted, enabling feed rates to evolve with various types of material while the hydraulic vise makes set up easier for the operator.

JPW Industries - 424475 - Features

• Heavy duty construction reduces vibration and deflection
• CSA/US: Following strict guidelines and electrical requirements, this JET Saw is CSA/US certified
• Automatic blade breakage sensor detects accidental breakage and interrupts the power
• Blade is fully guarded for operator safety
• Auto shut off at the end of the cut
• Mitering head - the workpiece remains fixed while the head swivels to cut any angle 0 tp 45
• Semi-Automatic bow raises after cut to predetermined height
• Blade Tensioning Meter
• Built-in self propelled blade brush prevents chip build up in blade guides
• Hydraulic downfeed control is easily adjusted enabling feed rates to evolve with the various types of materials
• Variable speed drivetrain allows theoperator to fine tune the blade speed quickly & easily
• Auxiliary roller support on back of vise
• One piece blade cover makes chanaging blades extremely easy
• Circulating coolant system through both blade guides
• Swing away control arm puts the controls at the Operator fingertips
• Hydraulic vise makes set up easier for the operator

JPW Industries - 424475 - Product Categories

• JET Metalworking
• Sawing
• Mitering Horizontal Bandsaws

JPW Industries - 424475 - Specifications

Brand Name	JET (JPW Industries)
Manufacturer Part Number	424475
Item Description	HBS-1220MSAH, 12" x 20" Semi-Automatic Mitering Variable Speed Bandsaw with Hydraulic
Round at 45 Degrees (In.)	11-7/32
Round at 90 Degrees (In.)	11-13/16
Rectangle at 45 Degrees (In.)	12-9/16 x 11-7/32
Rectangle at 90 Degrees (In.)	16-1/2 x 11-13/16 ; 18-1/8 x 8-5/8 ; 19-1/4 x 4
Head Movement (Deg.)	45
Blade Size (In.)	1 x 0.037 x 156
Blade Wheel Diameter (In.)	17-3/32 x 1-3/16
Blade Speed (SFPM)	Variable, 90-370
Bed Height (In.)	27-1/2
Motor (HP)	3 HP , 230/460V, 3-Ph
Prewired (V.)	230V, Surcharge applies for 460V re-wire
Maximum Vise Opening (In.)	19-5/8
Overall Dimensions (L x W x H) (In.)	87-3/4 x 31.5 x 53
Height	53.0000
Length	87.7000
Weight	1625.0000
Width	32.3000
