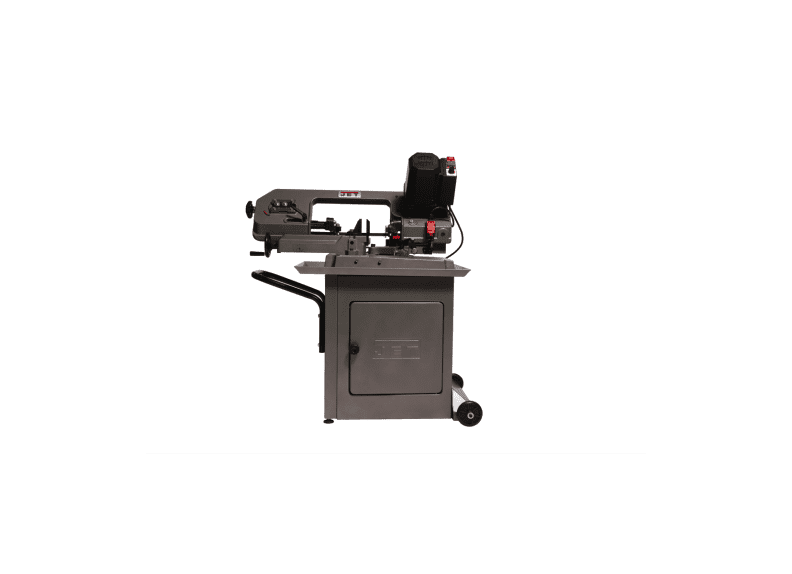

JPW Industries 414558 | HBS-56MVS, Variable Speed, Mitering 5" x 6" Horizontal Bandsaw, .5HP 115V

This JET Variable Speed, Mitering bandsaw packs the features in a small package. The exclusive 5x6 Portable Variable Speed Mitering Bandsaw includes a newly designed motor with a 3-step gear transmission for unprecedented torque output. The versatile swiveling head allows precision cuts without the hassle of moving the material.

JPW Industries - 414558 - Features

• Heavy duty casted head for years of sawing
• New DC motor with 3-step geaer transmission increases torque output
• Ball bearing supported blade wheel
• CSA/US: Following strict guidelines and electrical requirements, this JET saw is CSA/US certified
• Blade is fully guarded
• Automatic shut-off after cut
• Head swivels for a maximum cut at 45 & 60
• Variable Speed gives you the ability to cut various materials
• Hardened Ferrous 82-130 SFPM
• Ferrous 130-180 SFPM
• Non-Ferrous, Plastic, Wood 180-230 SFPM
• Quick speed changes with the turn of a dial, no more belt changes
• Fully adjustable ball bearing blade guides
• Front legs feature leveling pads
• Wheels come standard for ease of movement around your shop

JPW Industries - 414558 - Product Categories

• JET Metalworking
• Sawing
• Manual & Semi-Auto Horizontal Bandsaws

JPW Industries - 414558 - Specifications

Brand Name	JET (JPW Industries)
Manufacturer Part Number	414558
Item Description	HBS-56MVS, Variable Speed, Mitering 5" x 6" Horizontal Bandsaw, .5HP 115V
Round at 45 Degrees (In.)	3-3/4
Round at 90 Degrees (In.)	5
Rectangle at 45 Degrees (In.)	3-3/4 x 2-1/3
Rectangle at 60 Degrees (In.)	1-1/4 x 1-3/4 , 5 x 1-3/4
Rectangle at 90 Degrees (In.)	5 x 6 , 2 x 6
Throat Depth (In.)	5
Vise Swivels (Deg.)	0 - 60
Blade Size (In.)	1/2 x 0.025 x 64-1/2
Blade Wheel Diameter (In.)	7-3/8
Bed Height (In.)	28
Motor (HP)	1/2 HP, 115V, Single Phase
Overall Assembled (Bow Lowered) (L x W x H)	38.58 x 20.47 x 47.3
Weight (Lbs.)	147
Shipping Weight (Lbs.)	147
Weight	176.0000
Width	17.5000
Height	41.0000
Length	18.0000
