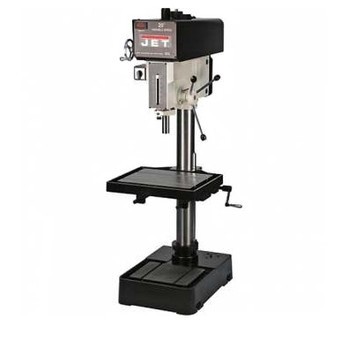

JPW Industries 354223 | J-2223VS, 20 in. 2 HP 3-Phase Variable Speed Drill Press

The 20-in 2 HP 3-Phase Variable Speed Drill Press has a drilling capacity of 1-in in steel and has ideal operating speeds of 300 to 2,000 RPM.

JPW Industries - 354223 - Features

• Has a large cast iron head with a massive 3-in quill that allows for greater accuracy
• The head casting features a permanently lubricated ball bearing head spindle assembly that uses four heavy-duty ball bearings mounted in an enclosed quill for a prolonged tool life
• Includes a massive T-slotted production work table that can rotate all the way around the column
• Has a heavy-duty 4-1/2-in diameter ground steel column which provides this maximum head and table support and reduced vibration
• Has a 6-in stroke for deep hole applications and a depth stop is standard to make sure that all of your hole depths are precise
• Comes standard with external #3 morse taper
• Designed to handle work piece up to 150 lbs.
• Includes: J-2223VS, 20-in 2 HP 3-Phase Variable Speed Drill Press - 354223
• Weight: 750 lbs.
• Base Work Table: 15-1/4-in x 12-1/16-in
• Cast-Iron Drilling Capacity: 1-1/4-in
• Cast-Iron Tapping Capacity: 3/4-in
• Column Diameter: 4-1/2-in
• Drilling Capacity: 1-in
• Drills to Center of Circle: 20-in
• Motor: 2 HP, 3 Ph 230V
• Spindle Distance to Table: 32-3/8-in
• Spindle Taper: MT-3
• T-Slots: 2
• T-Slots Size: 5/8-in
• Table Size: 18-1/8-in X 14-3/4-in
• Table Travel: 32-3/8-in

JPW Industries - 354223 - Specifications

Brand Name	JPW Industries
Manufacturer Part Number	354223
Item Description	J-2223VS, 20 in. 2 HP 3-Phase Variable Speed Drill Press
