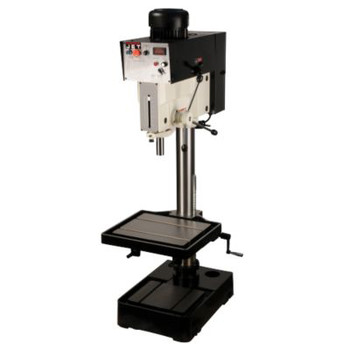

JPW Industries 354214 | J-2232AC, 20 in. Vs Drill Press 220V, 3Ph
JPW Industries 354214 | J-2232AC, 20 in. Vs Drill Press 220V, 3Ph
Accept Credit Cards
Official PayPal Seal

JPW Industries 354214 | J-2232AC, 20 in. Vs Drill Press 220V, 3Ph

assets/images/jpw-120.png
Availability: In Stock
Part Number: WC354214
0 Review(s)
Write a Review
$5,799.56
Retail Price:$6,122.78
Your Savings:$323.22(5%)
Have a question or need a quote?

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

JPW Industries 354214 | J-2232AC, 20 in. Vs Drill Press 220V, 3Ph


https://www.autotoolworld.com/assets/icons/features.jpg

JPW Industries - 354214 - Features

  • Variable spindle speeds from 65 to 2,000 RPM
  • MT-3 spindle taper
  • Latest AC inverter variable speed technology
  • High torque at all speeds both forward and reverse
  • Continuous speed adjustment while in operation
  • Front mounted LED spindle RPM readout
  • Forward and reverse for taping
  • Emergency stop
  • Front mounted positive control depth stop
  • Large precision ground T-slot production table for easy set ups
  • Heavy duty casted head for more accuracy and rigidity
  • Includes: J-2232AC, 20-in Vs Drill Press 220V, 3Ph - 354214
  • Length: 25 in.
  • Width: 39 in.
  • Height: 72 in.
  • Weight: 792 lbs.
  • Base Work Table: 14-3/4-in x 11-13/16-in
  • Column Diameter: 4-1/2-in
  • Distance Column to Spindle: 10-7/16-in
  • Drilling Capacity Cast Iron: 1-1/2-in
  • Drilling Capacity Mild Steel: 1-3/8-in
  • Drills to Center of Circle (in): 20-in
  • Max Distance - Spindle to Table (in): 30-1/4-in
  • Max Distance Spindle to Table ( in.): 30-1/4-in
  • Motor: 2HP, 220V, 3Ph
  • Number of Spindle Speeds: Variable
  • Quill Diameter: 3-in
  • Quill Feed: 6
  • Quill Travel: 6-in
  • Range of Spindle Speeds (RPM): 65 - 2,000
  • Spindle Distance to Base: 43-5/16-in
  • Spindle Taper: MT-3
  • T-Slots Number and Size: 2 & 5/8-in
  • Table Size: 22-in x 18-3/4-in
  • Table Travel: 18-in
  • Tapping Capacity Cast Iron: 7/8-in
  • Tapping Capacity Mild Steel: 3/4-in
  • Work Table Weight Capacity (lbs.): 176 lbs.



https://www.autotoolworld.com/assets/icons/specs.jpg

JPW Industries - 354214 - Specifications

Brand NameJPW Industries
Manufacturer Part Number354214
Item DescriptionJ-2232AC, 20 in. Vs Drill Press 220V, 3Ph
