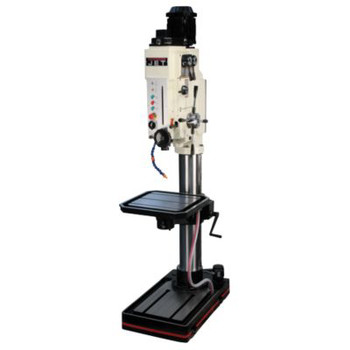

JPW Industries 354051 | J-2360, 30 in. Direct Drive Drill Press 4HP
JPW Industries 354051 | J-2360, 30 in. Direct Drive Drill Press 4HP
Accept Credit Cards
Official PayPal Seal

JPW Industries 354051 | J-2360, 30 in. Direct Drive Drill Press 4HP

assets/images/jpw-120.png
Availability: In Stock
Part Number: WC354051
0 Review(s)
Write a Review
$25,044.41
Retail Price:$26,440.07
Your Savings:$1,395.66(5%)
Have a question or need a quote?

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

JPW Industries 354051 | J-2360, 30 in. Direct Drive Drill Press 4HP


https://www.autotoolworld.com/assets/icons/features.jpg

JPW Industries - 354051 - Features

  • Direct drive round column drill press with mechanical clutch
  • Two speed forward and reverse switch
  • Mechanical power feed clutch engagement
  • Heavy duty quill and spindle
  • Tempered, ground spindle with internal taper mounted in precision bearings for maximum accuracy, minimizing deflection
  • Speed and feed selectors are located on one side of the drill head for convenience and ease of operation
  • Oversized base is precision ground with T-slots for added versatility and stability
  • Spindle gear box is equipped with steel hardened, ground, shafts and gears
  • Spindle gear box is internally lubricated in a continuous oil bath for long term smooth operation.
  • Tilting table, 45 degrees left and right
  • Power feed can be disengaged manually
  • Automatic tool ejector
  • Manual quill lock
  • Coolant system
  • Low voltage at switch
  • Length: 108 in.
  • Width: 30 in.
  • Height: 53 in.
  • Weight: 2405 lbs.
  • Auto: 0.003, 0.006, 0.010, 0.014
  • Base Slots Number & Size: 5/8-in
  • Distance Base to Spindle: 50-in
  • Distance Column to Spindle: 15-in
  • Drilling Capacity Cast Iron: 2-5/32-in
  • Drilling Capacity Mild Steel: 2-in
  • Max Distance - Spindle to Table (in): 30-1/2-in
  • Max Distance Spindle to Table ( in.): 30-1/2-in
  • Motor: 4 HP, 230/460V, 3 Ph, Prewired 230V
  • Number of Powerfeeds: 4
  • Number of Spindle Speeds: 9
  • Number of T-Slots: 3
  • Quill Diameter: 3.465-in
  • Quill Down Feed Rates (IPR): 0.003, 0.006, 0.010, 0.014
  • Quill Travel: 10-in
  • Quill Travel w/ Powerfeed Engaged: 10-in
  • Range of Spindle Speeds (RPM): 55, 98, 156, 198, 346, 456, 576, 822, 1338
  • Spindle Distance to Base: 50-in
  • Spindle Distance to Table (max./in.): 30-1/2-in
  • Spindle Distance to Table (min./in.): 2-3/4-in
  • Spindle Taper: MT-4
  • T-Slot Size: 5/8-in
  • Table Size: 22-in x 19-in
  • Tapping Capacity Cast Iron: 2-in
  • Tapping Capacity Mild Steel: 1-3/4-in
  • Work Table Weight Capacity (lbs.): 400 lbs.



https://www.autotoolworld.com/assets/icons/specs.jpg

JPW Industries - 354051 - Specifications

Brand NameJPW Industries
Manufacturer Part Number354051
Item DescriptionJ-2360, 30 in. Direct Drive Drill Press 4HP
