JPW Industries 323375 | GH-1440-1 Lathe with 203 DRO and Taper Attachment

The new JET GH-1440-1 and GH-1440-3 Geared Head engine lathes weigh over one ton and come equipped with precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for the ultimate working durability. The enclosed gearbox design, standard coolant system, and lead screw cover provide a smooth and quiet operation while maintaining peak performance. The GH-1440-1 and GH-1440-3 also includes a patented electronic chuck key docking station that prevents startup without the chuck key when safely docked.

JPW Industries - 323375 - Features

• V-way bed design is induction hardened and ground
• Splined, not keyed, shafts are utilized
• D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
• Independent leadscrew and feed rod
• Adjustable gibs are incorporated in the carriage and slideways
• Safety on/off switch
• Emergency Stop within easy reach of the Operator
• Electronic Chuck Key Docking Station
• Chuck Guard
• Foot Brake
• Gearbox provides larger threading and feed capabilities with no gear changes
• Spindle actuation control is apron mounted
• Gap bed section provided for larger diameter work
• Inch-metric dials are standard
• Compound and cross slide have backlash elimination

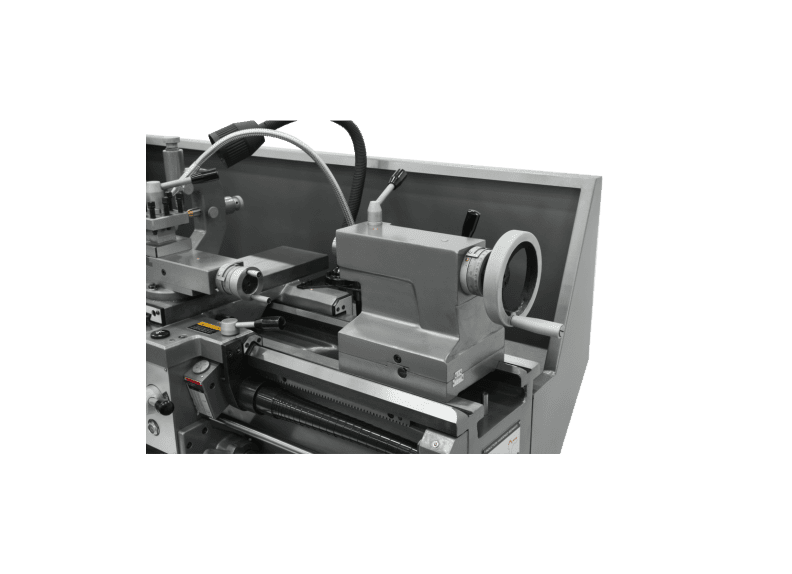

• Tailstock may be offset for turning tapers and includes an inch-metric graduated quill
• Front removable chip tray
• Spindle jog button for easy gear engagement and spindle inching
• Coolant system
• Full length splash guard
• STANDARD ACCESSORIES
• 6" 3-Jaw Chuck
• 8" 4-Jaw Chuck
• 12" Face Plate
• Steady & Follow Rest
• Metric Change Gears
• Lead Screw Cover
• LED Work Lamp
• Micro Carriage Stop
• Chuck Guard

JPW Industries - 323375 - Product Categories

• JET Metalworking
• Turning
• JET Lathes
• W 13"-14" Geared Head Lathes

JPW Industries - 323375 - Specifications

Brand Name	JET (JPW Industries)
Manufacturer Part Number	323375
Item Description	GH-1440-1 Lathe with 203 DRO and Taper Attachment
Digital Readout	ACU-RITE 203
Accessory 1	Taper Attachment
Swing Over Bed (In.)	14
Swing Over Cross Slide (In.)	8-1/5
Swing Through Gap (In.)	20
Length of Gap (In.)	9-3/8
Distance Between Centers (In.)	40
Spindle Bore (In.)	1-1/2
Spindle Mount	D1-4
Number of Spindle Speeds	12
Range of Spindle Speeds (RPM)	40-1800
Spindle Taper with Sleeve	MT-5
Number of Longitudinal and Cross Feed Rates	40
Range of Longitudinal Feeds (IPR)	0.0012 - 0.0294
Range of Cross Feeds (IPR)	0.0004 - 0.0103
Number of Inch Threads	40
Range of Inch Threads (TPI)	4-112
Number of Metric Threads	23
Range of Metric Threads	0.45-7.5
Max Tool Size (In.)	5/8 x 5/8
Compound Slide Travel (In.)	3-1/2
Cross Slide Travel (In.)	6-3/8
Carriage Travel (In.)	37-1/2
Tailstock Spindle Travel (In.)	4-3/4
Taper in Tailstock Spindle	MT-3
Follow Rest Capacity (In.)	2-5/8
Steady Rest Capacity (In.)	3-1/2
Width of Bed (In.)	10-1/5
Motor (HP)	3HP, 230V, 1PH
Prewired (V.)	230V
Overall Dimensions (L x W x H) (In.)	74-4/5 x 28 x 46
Weight (Lbs.)	2336
Width	30.0000
Weight	2336.0000
Height	56.5000
Length	74.8000
