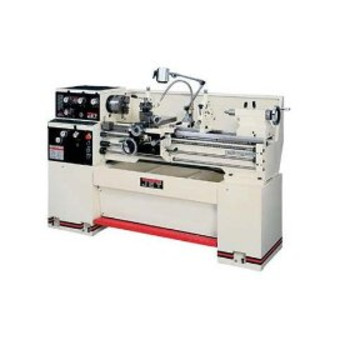

JPW Industries 321920 | GH-1460ZX Large Spindle Bore Precision Lathe


https://www.autotoolworld.com/assets/icons/features.jpg

JPW Industries - 321920 - Features

  • Uniquely designed exclusively by JET
  • ISO 9001 certified manufacturer
  • 3-1/8-in bore spindle is supported by two tapered and one ball bearing
  • Chrome molybdenum headstock gears are hardened, ground, and shaved
  • Universal gearbox allows inch, metric, diametral, and module pitch threads, no change gears required
  • Carriage Feature one-shot lubrication and Turcite B on bed sliding surfaces
  • T-slotted compound slide featuring a four-way tool post
  • One-piece cast iron base absorbs vibration allowing heavier cuts
  • High quality ANSI Class 50 wear-resistant cast iron bed ways are hardened and ground
  • Removable gap allows up to 23-5/8-in diameter work
  • Five position automatic carriage stop increases productivity
  • Attractive chrome control levers, dials, and knobs complete this impressive package
  • Carriage Travel: 55-in
  • Compound Slide Travel: 5-1/8-in
  • Cross Slide Travel: 9-in
  • Distance Between Centers: 60-in
  • Follow Rest Capacity: 1/2-in - 3-1/2-in
  • Horsepower: 7.5
  • Length of Gap: 12-1/4-in
  • Maximum Tool Size: 1 x 1
  • Motor Type: Three Phase
  • Number of Inch Threads: 61
  • Number of Longitudinal and Cross Feed Rates: 122
  • Number of Metric Threads: 24
  • Number of Spindle Speeds: 12
  • Pre-Wired: 230V
  • Range of Cross Feeds: .0006 - .0365
  • Range of Inch Threads (TPI): 1-5/8 - 72
  • Range of Longitudinal Feeds (IPR): .0015 - .0913
  • Range of Metric Threads: .05 - 20
  • Range of Spindle Speeds: 42 - 1800 RPM
  • Spindle Bore: 3-1/8-in
  • Spindle Mount: D1-8
  • Spindle Taper with Sleeve: MT-7 (MT-5)
  • Steady Rest Capacity: 3/8-in - 7-in
  • Swing Over Bed: 14-in
  • Swing Over Cross Slide: 7-5/8-in
  • Swing Through Gap: 23-5/8-in
  • Tailstock Spindle Travel: 5-in
  • Taper in Tailstock Spindle: MT-4
  • Voltage: 230/460V
  • Width of Bed: 13-3/8-in



https://www.autotoolworld.com/assets/icons/specs.jpg

JPW Industries - 321920 - Specifications

Brand NameJPW Industries
Manufacturer Part Number321920
Item DescriptionGH-1460ZX Large Spindle Bore Precision Lathe
