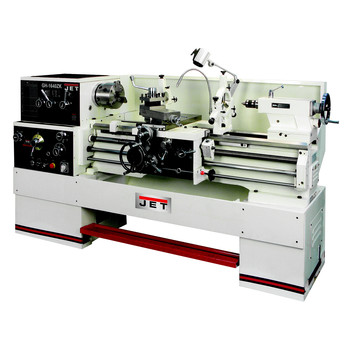

JPW Industries 321852 | GH-1640ZK 2 in. Lathe with Taper Attachment
JPW Industries 321852 | GH-1640ZK 2 in. Lathe with Taper Attachment
Accept Credit Cards
Official PayPal Seal

JPW Industries 321852 | GH-1640ZK 2 in. Lathe with Taper Attachment

assets/images/jpw-120.png
Availability: In Stock
Part Number: WC321852
0 Review(s)
Write a Review
$18,536.87
Retail Price:$19,569.87
Your Savings:$1,033.00(5%)
Have a question or need a quote?

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

JPW Industries 321852 | GH-1640ZK 2 in. Lathe with Taper Attachment


https://www.autotoolworld.com/assets/icons/features.jpg

JPW Industries - 321852 - Features

  • Lathe bed is made of cast iron with low vibration and high rigidity
  • Two precision-ground v-slideways, reinforced by supersonic frequency hardening, offer precision guidance for the carriage
  • The headstock is cast from high-grade, low-vibration cast iron with the spindle supported by a cylindrical bearing at the front, a tapered roller bearing, and a ball bearing
  • Lathe adopts a three-axle sliding common gear mechanism which together with the thread selection change mechanism and doubling mechanism, enable it to cut a comprehensive range of metric, modular, and diametrical pitch threads eliminating the need for gear changes where special thread is required
  • Use the hand wheel or the feed direction handle to move the bed-mounted rack and pinion, and make quick travel of the apron for better positioning
  • Cross-slide is mounted on the saddle and used for cross feed operations moving on an adjustable dovetailed slide
  • T-slotted compound rest can be rotated 360 degrees allowing tapers to be turned
  • Length: 40 in.
  • Width: 16 in.
  • Weight: 3877 lbs.
  • Carriage Travel: 36 3/8 in.
  • Compound Slide Travel: 5 1/8 in.
  • Follow Rest Capacity: 1/2 - 3 1/8 in.
  • Horsepower: 5 - 7 1/2 HP
  • Motor Type: Geared Head
  • Number of Longitudinal and Cross Feeds: 122
  • Number of Metric Threads: 24
  • Number of Spindle Speeds: 12
  • Pre-Wired: 230V
  • Range of Cross Feeds: 0.0006 - 0.0365 in./rev.
  • Range of Inch Threads: 1 5/8 - 72 TPI
  • Range of Longitudinal Feeds: 0.0015 - 0.0913 in./rev.
  • Range of Metric Threads: 0.5 - 20
  • Range of Spindle Speeds: 42 - 1,800 RPM
  • Steady Rest Capacity: 7/16 - 3 15/16 in.
  • Swing Over Bed: 16 in.
  • Swing Over Cross Slide: 10 in.
  • Swing Through Gap: 23 5/8 in.
  • Taper in Tailstock Spindle: MT-4
  • Voltage: 230V/460V
  • Width of Bed: 12 1/4 in.



https://www.autotoolworld.com/assets/icons/specs.jpg

JPW Industries - 321852 - Specifications

Brand NameJPW Industries
Manufacturer Part Number321852
Item DescriptionGH-1640ZK 2 in. Lathe with Taper Attachment
