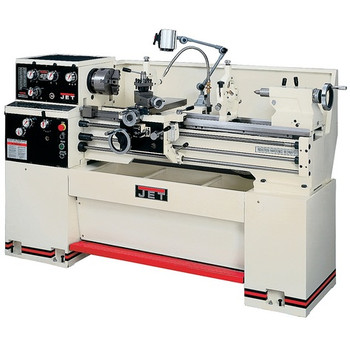

JPW Industries 321537 | GH-1340-3 Lathe with Newall DP700 DRO and Collet Closer


https://www.autotoolworld.com/assets/icons/features.jpg

JPW Industries - 321537 - Features

  • Hardened and ground gears are featured in the headstock and gearbox
  • D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
  • Headstock is constantly oiled during operation
  • Splined, not keyed, shafts are utilized
  • Gearbox gives larger threading and feed capabilities with no gear changes
  • V-way bed design is induction hardened and ground
  • Gap bed section provided for larger diameter work
  • Independent leadscrew and feed rod
  • Spindle actuation control is apron mounted
  • Inch-metric dials are standard
  • Compound and cross slide have backlash elimination
  • Adjustable gibs are incorporated in the carriage and slideways
  • Tailstock may be offset for turning tapers and includes an inch-metric graduated quill
  • Includes: GH-1340-3 Newall DP700 DRO and Collet Closer - 321537
  • Heavy-Duty Stand
  • 6-in 3-Jaw Direct Mount Chuck with Top Reversing Jaws
  • 8-in 4-Jaw Chuck
  • 12-in Faceplate
  • 4-Way Tool Post
  • Steady and Follow Rest
  • Micro-Carriage Bed Stop
  • Front Removable Chip Tray
  • Spindle Jog Button
  • Foot Brake
  • Coolant System with Splash Guard
  • Metric Change Gears
  • Halogen Work Lamp
  • Centers and Headstock Center Sleeve
  • Threading Dial
  • Tool Box and Tools
  • Specifications
  • Weight: 2358 lbs.
  • Carriage Travel: 37-1/2-in
  • Compound Slide Travel: 3-1/2-in
  • Cross Slide Travel: 6-3/8-in
  • Follow Rest Capacity: 2-3/4-in
  • Horsepower: 3
  • Maximum Tool Size: 5/8-in x 5/8-in
  • Motor Type: Three Phase
  • Number of Inch Threads: 40
  • Number of Spindle Speeds: 12
  • Pre-Wired: 230V
  • Range of Cross Feeds: 0.0003 - 0.0103 in/rev.
  • Range of Inch Threads: 4 - 112 TPI
  • Range of Longitudinal Feeds: 0.0012 - 0.0294 in/rev.
  • Range of Spindle Speeds: 40 - 1,800 RPM
  • Spindle Bore: 1-1/2-in
  • Spindle Mount: D1-4
  • Spindle Taper with Sleeve: MT-5 (MT-3)
  • Steady Rest Capacity: 3-3/4-in
  • Swing Over Bed: 13-in
  • Swing Over Cross Slide: 7-1/2-in
  • Swing Through Gap: 19-in
  • Tailstock Spindle Travel: 4-3/4-in
  • Taper in Tailstock Spindle: MT-3
  • Voltage: 230/460V
  • Width of Bed: 10-1/2-in



https://www.autotoolworld.com/assets/icons/specs.jpg

JPW Industries - 321537 - Specifications

Brand NameJPW Industries
Manufacturer Part Number321537
Item DescriptionGH-1340-3 Lathe with Newall DP700 DRO and Collet Closer
