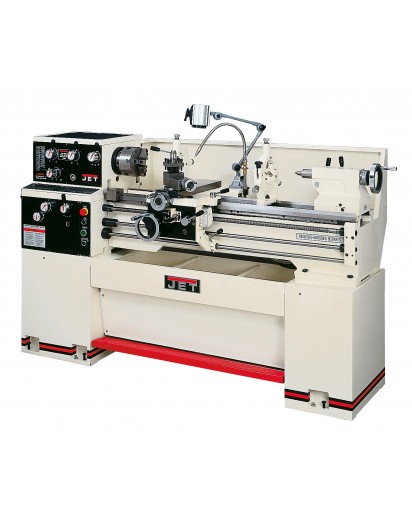

JPW Industries 321459 | Gh-1340W-3 Lathe Machine With Acu-Rite 200S Dro Installed

The JET exclusive Geared head engine lathe design features precision bearings supporting the hardened and ground spindle and splined, instead of keyed shafts are utilized in the constantly oiled gearbox. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.

JPW Industries - 321459 - Features

• 1-1/2" bore spindle supported by precision tapered bearings
• Hardened and ground gears are featured in the headstock and gearbox
• D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
• Headstock is constantly oiled during operation
• Splined, not keyed, shafts are utilized
• Gearbox provides larger threading and feed capabilities with no gear changes
• V-way bed design is induction hardened and ground
• Gap bed section provided for larger diameter work
• Independent leadscrew and feed rod
• Spindle actuation control is apron mounted
• Inch-metric dials are standard
• Compound and cross slide have backlash elimination
• Adjustable gibs are incorporated in the carriage and slideways
• Tailstock may be offset for turning tapers and includes an inch-metric graduated quill
• Tolerance test certificate included
• Heavy duty stand
• 6" 3 jaw direct mount chuck with top reversing jaws
• 8" 4-jaw independent chuck
• 12" face plate
• Four-way tool post
• Steady and follow rest
• Micro-carriage bed stop
• Front removable chip tray
• Spindle jog button
• Foot brake
• Coolant system with splash guard
• Metric Change Gears
• Halogen Work Lamp
• Specifications
• Size 13 x 40
• Digital Readout ACU-RITE 200S
• Swing Over Bed (In.) 13
• Swing Over Cross Slide (In.) 7-1/2
• Swing Through Gap (In.) 19
• Distance Between Centers (In.) 40
• Spindle Bore (In.) 1-1/2
• Spindle Mount D1-4
• Spindle Taper with Sleeve MT-5 (MT-3)
• Number of Spindle Speeds 12
• Range of Spindle Speeds (RPM) 40 - 1,800
• Number of Longitudinal and Cross Feed Rates 40
• Range of Longitudinal Feeds (IPR) .0012 - .0294
• Range of Cross Feeds (IPR) .0003 - .0103
• Number of Inch Threads 40
• Range of Inch Threads (TPI) 4 - 112
• Number of Metric Threads 22
• Range of Metric Threads .45 - 7.5
• Max Tool Size (In.) 5/8 x 5/8
• Compound Slide Travel (In.) 3-1/2
• Cross Slide Travel (In.) 6-3/8
• Carriage Travel (In.) 37-1/2
• Tailstock Spindle Travel (In.) 4-3/4
• Taper in Tailstock Spindle MT-3
• Follow Rest Capacity (In.) 2-3/4
• Steady Rest Capacity (In.) 3-3/4
• Width of Bed (In.) 10-1/2
• Motor (HP) 3 HP, 230/460V, 3Ph
• Prewired (V.) 230
• Weight (Lbs.) 2,081
• Overall Dimensions (L x W x H) (In.) 78 x 38 x 59
• Style (Type) Engine - Geared Head
• Drive Geared Head

JPW Industries - 321459 - Specifications

Brand Name	JPW Industries
Manufacturer Part Number	321459
Item Description	Gh-1340W-3 Lathe Machine With Acu-Rite 200S Dro Installed
