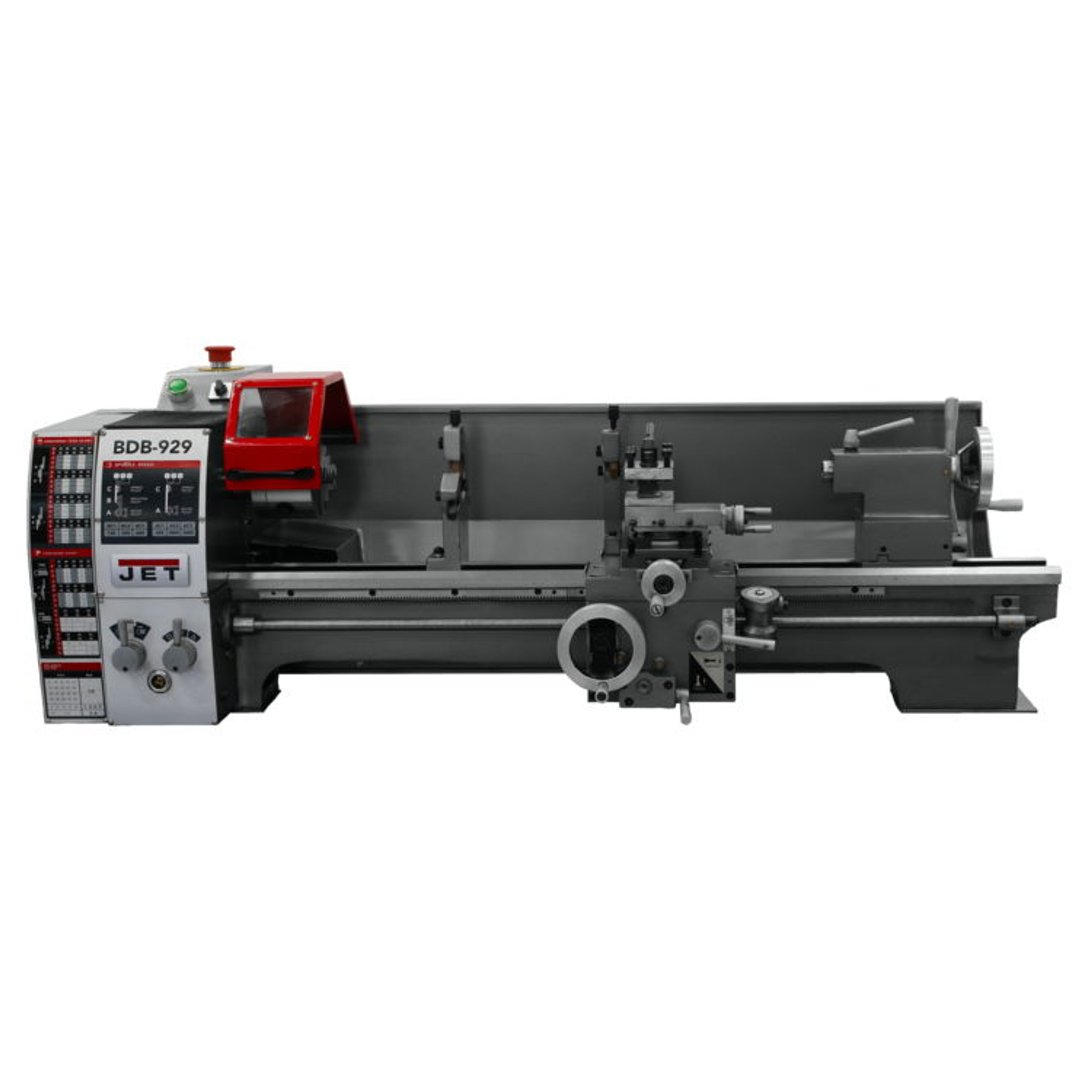

JPW Industries 321379 | BDB-929 Belt Drive Bench lathe

The BDB-929 benchtop lathe is the essential step to improving your shop’s capabilities. Engineered with precision induction hardened ground bed-ways and precision tapered roller bearings the BDB-929 delivers the smooth operation and rigidity needed to craft professional pieces.

JPW Industries - 321379 - Features

• Induction hardened and ground bedway
• Spindle supported by precision tapered roller bearings
• Safety on/off switch
• Emergency Stop within easy reach of the Operator
• Chuck Guard
• Quick change gearbox provides wide range of inch and metric threads
• Power longitudinal feed allows threading and reverse threading
• Quick locking tailstock
• Standard 1-1/2" x 8 TPI spindle mount allows for many aftermarket accessories
• Reversing switch for added versatility
• Full length splash guard
• Backlash adjustments provided throughout the carriage
• STANDARD ACCESSORIES
• 4" 3-Jaw Chuck
• 7-1/2" 4-Jaw Chuck
• 7" Face Plate
• Steady and Follow Rest
• 4-Way Toolpost
• Set of Tools
• MT-2 & MT-3 Centers
• **Some images show lathe with optional stand, p/n 321377

JPW Industries - 321379 - Product Categories

• JET Metalworking
• Turning
• JET Lathes
• 9" and 13" Belt Drive Bench Lathes

JPW Industries - 321379 - Specifications

Brand Name	JET (JPW Industries)
Manufacturer Part Number	321379
Item Description	BDB-929 Belt Drive Bench lathe
Swing Over Bed (In.)	8-3/4
Swing Over Cross Slide (In.)	5
Distance Between Centers (In.)	27.5
Spindle Bore (In.)	3/4
Spindle Mount	1-1/2 x 8TPI
Number of Spindle Speeds	6
Range of Spindle Speeds (RPM)	130-2000
Spindle Taper with Sleeve	MT-3
Number of Longitudinal and Cross Feed Rates	60
Range of Longitudinal Feeds (IPR)	0.0006-0.0368
Number of Inch Threads	27
Range of Inch Threads (TPI)	8 - 56
Number of Metric Threads	12
Range of Metric Threads	0.5 - 3.5
Max Tool Size (In.)	1/2
Compound Slide Travel (In.)	1-7/8
Cross Slide Travel (In.)	4-1/4
Carriage Travel (In.)	26.5
Tailstock Spindle Travel (In.)	1-9/16
Taper in Tailstock Spindle	MT-2
Follow Rest Capacity (In.)	1-3/4
Steady Rest Capacity (In.)	1-3/4
Width of Bed (In.)	4-1/2
Motor (HP)	3/4 HP, 115V, 1PH
Prewired (V.)	115V
Overall Dimensions (L x W x H) (In.)	51x22x20
Weight (Lbs.)	287
Width	20.0000
Weight	337.0000
Height	30.0000
Length	55.0000
