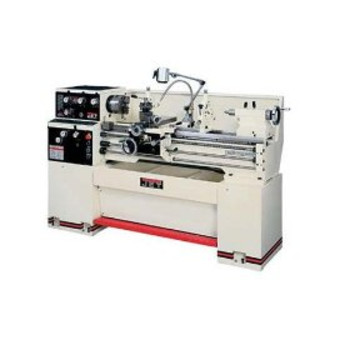

JPW Industries 321315 | GH-1460ZX Lathe with 300S DRO and Collet Closer
JPW Industries 321315 | GH-1460ZX Lathe with 300S DRO and Collet Closer
Accept Credit Cards
Official PayPal Seal

JPW Industries 321315 | GH-1460ZX Lathe with 300S DRO and Collet Closer

assets/images/jpw-120.png
Availability: In Stock
Part Number: WC321315
0 Review(s)
Write a Review
$24,479.97
Retail Price:$25,844.18
Your Savings:$1,364.21(5%)
Have a question or need a quote?

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

JPW Industries 321315 | GH-1460ZX Lathe with 300S DRO and Collet Closer


https://www.autotoolworld.com/assets/icons/features.jpg

JPW Industries - 321315 - Features

  • Uniquely designed exclusively by JET
  • ISO 9001 certified manufacturer
  • 3-1/8-in bore spindle is supported by two tapered and one ball bearing
  • Chrome molybdenum headstock gears are hardened, ground and shaved
  • Universal gearbox allows inch, metric, diametral and module pitch threads, no change gears required
  • Carriage features one-shot lubrication and Turcite-B on bed sliding surfaces
  • T-slotted compound slide featuring a four-way tool post
  • One piece cast iron base absorbs vibration allowing heavier cuts
  • High quality ANSI Class 50 wear resistant cast iron bed ways are hardened and ground
  • Removable gap allows up to 23-5/8-in diameter work on 14-in, 25-7/8-in on 16-in , 27-1/2-in on 18-in and 29-1/2-in on 22-in
  • Five position automatic carriage stop increases productivity
  • Attractive chrome control levers, dials and knobs complete this impressive package
  • Tolerance test certificate included
  • Includes: GH-1460ZX Lathe with 300S DRO and Collet Closer - 321315
  • 10-in Scroll 3-Jaw Chuck With Top Reversing Jaws
  • 12-in Independent 4-Jaw Chuck
  • 12-in Face Plate (16-in Models)
  • 16-in Face Plate (18-in Models)
  • Follow Rest
  • Large Capacity Steady Rest
  • Fully Integrated Coolant System
  • Full Length Splash Guard and Coolant Return
  • Articulating Halogen Work Lamp
  • Centrally Located Controls with Jog Button
  • Threading Dial
  • Mounting Pads and Levelers
  • Spindle Sleeve (MT-7 - MT-5)
  • Dead Center
  • Live Center
  • Carriage Travel: 55-in
  • Compound Slide Travel: 5-1/8-in
  • Cross Slide Travel: 9-in
  • Distance Between Centers: 60-in
  • Follow Rest Capacity: 1/2-in - 3-1/2-in
  • Horsepower: 7.5
  • Length of Gap: 12-1/4-in
  • Maximum Tool Size: 1 x 1
  • Motor Type: Three Phase
  • Number of Inch Threads: 61
  • Number of Longitudinal and Cross Feed Rates: 12
  • Number of Metric Threads: 24
  • Number of Spindle Speeds: 12
  • Pre-Wired: 230V
  • Range of Cross Feeds: .0006 - .0365
  • Range of Inch Threads (TPI): 1-5/8 - 72
  • Range of Longitudinal Feeds (IPR): .0015 - .0913
  • Range of Metric Threads: .05 - 20
  • Range of Spindle Speeds: 25 - 1,800 RPM
  • Spindle Bore: 3-1/8-in
  • Spindle Mount: D1-8
  • Spindle Taper with Sleeve: MT-7 (MT-5)
  • Steady Rest Capacity: 3/8-in - 7-in
  • Swing Over Bed: 14-in
  • Swing Over Cross Slide: 7-5/8-in
  • Swing Through Gap: 23-5/8-in
  • Tailstock Spindle Travel: 5-in
  • Taper in Tailstock Spindle: MT-4
  • Voltage: 230/460V
  • Width of Bed: 13-3/8-in



https://www.autotoolworld.com/assets/icons/specs.jpg

JPW Industries - 321315 - Specifications

Brand NameJPW Industries
Manufacturer Part Number321315
Item DescriptionGH-1460ZX Lathe with 300S DRO and Collet Closer
