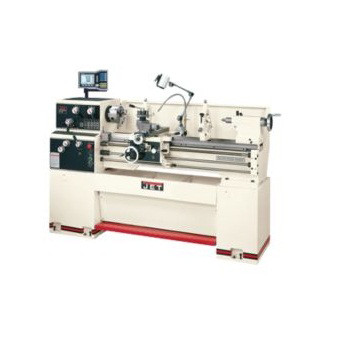

JPW Industries 321176 | GH-1440W-3 Lathe with Vue DRO and TAK
JPW Industries 321176 | GH-1440W-3 Lathe with Vue DRO and TAK
Accept Credit Cards
Official PayPal Seal

JPW Industries 321176 | GH-1440W-3 Lathe with Vue DRO and TAK

assets/images/jpw-120.png
Availability: In Stock
Part Number: WC321176
0 Review(s)
Write a Review
$14,944.85
Retail Price:$15,777.70
Your Savings:$832.85(5%)
Have a question or need a quote?

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

JPW Industries 321176 | GH-1440W-3 Lathe with Vue DRO and TAK


https://www.autotoolworld.com/assets/icons/features.jpg

JPW Industries - 321176 - Features

  • Uniquely Designed exclusively by JET
  • Hardened and ground gears are featured in the headstock and gearbox
  • D1-4 spindle is precision ground for accuracy and supported by high-quality tapered roller bearings
  • Headstock is constantly oiled during operation
  • Splined, not keyed, shafts are utilized in the headstock
  • Gearbox gives large threading and feed capabilities with no gear changes
  • V-way bed design is induction hardened and ground
  • Gap bed section provided for larger diameter work
  • Independent lead screw and feed rod
  • Spindle actuation control is apron mounted
  • Inch-metric dials are standard
  • Compound and cross slide have backlash elimination
  • Adjustable gibs are incorporated in the carriage and slide ways
  • Tailstock may be offset for turning tapers and includes an inch-metric graduated quill
  • Includes: GH-1440W-3 Lathe with Vue DRO and TAK - 321176
  • Tolerance Test Certificate
  • Heavy-Duty Stand
  • 6-in 3-Jaw Direct Mount Scroll Chuck with Top Reversing Jaw
  • 8-in 4-Jaw Independent Chuck
  • 12-in Faceplate
  • Four-way tool post
  • Steady and follow rest
  • Micro-Carriage Bed Stop
  • Front Removable Chip Tray
  • Spindle Jog Button
  • Foot Brake
  • Coolant System with Splash Guard
  • Metric Change Gears
  • Halogen Work Lamp
  • Headstock Center Sleeve
  • Specifications
  • Length: 73.75 in.
  • Width: 29.5 in.
  • Height: 47.5 in.
  • Weight: 2300 lbs.
  • Carriage Travel: 37-1/2-in
  • Compound Slide Travel: 3-1/2-in
  • Cross Slide Travel: 6-3/8-in
  • Distance Between Centers: 40-in
  • Follow Rest Capacity: 2-3/4-in
  • Horsepower: 3
  • Length of Gap: 9-3/8-in
  • Maximum Tool Size: 5/8-in x 5/8-in
  • Motor Type: Three Phase
  • Number of Inch Threads: 40
  • Number of Longitudinal and Cross Feed Rates: 40
  • Number of Metric Threads: 22
  • Number of Spindle Speeds: 12
  • Range of Cross Feeds: 0.0003 - 0.0103 IPR
  • Range of Inch Threads (TPI): 4 - 112 TPI
  • Range of Longitudinal Feeds: 0.0012 - 0.0294 IPR
  • Range of Metric Threads: .045 - 7.5
  • Range of Spindle Speeds: 40 - 1,800
  • Spindle Bore: 1-1/2-in
  • Spindle Mount: D1-4
  • Spindle Taper with Sleeve: MT-5 (MT-3)
  • Steady Rest Capacity: 3-3/4-in
  • Swing Over Bed: 14-in
  • Swing Over Cross Slide: 8-1/2-in
  • Swing Through Gap: 20-in
  • Tailstock Spindle Travel: 4-3/4-in
  • Taper in Tailstock Spindle: MT-3
  • Voltage: 230V
  • Width of Bed: 10-1/2-in



https://www.autotoolworld.com/assets/icons/specs.jpg

JPW Industries - 321176 - Specifications

Brand NameJPW Industries
Manufacturer Part Number321176
Item DescriptionGH-1440W-3 Lathe with Vue DRO and TAK
