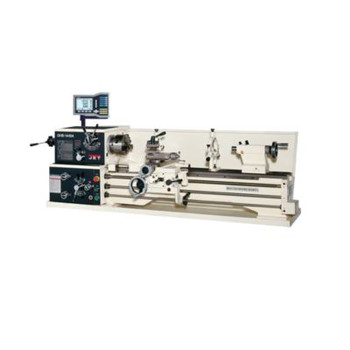

JPW Industries 321107 | GHB-1440A Lathe with ACU-RITE VUE DRO and Collet Closer

assets/images/jpw-120.png
Availability: In Stock
Part Number: WC321107
0 Review(s)
Write a Review
$10,989.51
Retail Price:$11,601.92
Your Savings:$612.41(5%)
Have a question or need a quote?

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

JPW Industries 321107 | GHB-1440A Lathe with ACU-RITE VUE DRO and Collet Closer


https://www.autotoolworld.com/assets/icons/features.jpg

JPW Industries - 321107 - Features

  • One of the most popular JET lathes now comes with an enclosed gearbox as a standard feature
  • Enclosed gearbox design provides smooth, quiet operation
  • Fast, easy speed changes
  • Hardened and ground gears are featured in the headstock and gearbox
  • D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
  • Headstock is constantly oiled during operation
  • Gearbox gives wide inch threading and feed capabilities with no gear changes
  • V-way bed design is induction hardened and ground
  • Gap bed section provided for larger diameter work
  • Independent lead screw and feed rod
  • Spindle actuation control is apron mounted
  • Compound and cross slide have backlash elimination
  • Adjustable gibs are incorporated in the carriage and slide ways
  • Tailstock may be offset for turning tapers and includes an inch-metric graduated quill
  • Includes: GHB-1440A Lathe with ACU-RITE VUE DRO and Collet Closer - 321107
  • 6-in 3-Jaw Direct Mount Scroll Chuck with Top Reversing Jaw
  • 8-in 4-Jaw Independent Chuck
  • 12-in Faceplate
  • Four-Way Tool Post
  • Steady and Follow Rest
  • Metric Change Gear
  • Splash Guard
  • Headstock Center Sleeve
  • Threading Dial
  • Tool Box with Tools
  • Oil Pan
  • Tolerance Test Sheet
  • Specifications
  • Length: 71 in.
  • Width: 32 in.
  • Height: 47 in.
  • Weight: 1050 lbs.
  • Carriage Travel: 35
  • Compound Slide Travel: 2-11/16-in
  • Cross Slide Travel: 6-5/16-in
  • Distance Between Centers: 40-in
  • Follow Rest Capacity: 2-3/4-in
  • Horsepower: 2
  • Length of Gap: 8-in
  • Maximum Tool Size: 5/8-in x 5/8-in
  • Motor Type: Single Phase
  • Number of Inch Threads: 40
  • Number of Longitudinal and Cross Feed Rates: 40
  • Number of Metric Threads: 27
  • Number of Spindle Speeds: 8
  • Range of Cross Feeds: 0.0012 - 0.0345 IPR
  • Range of Inch Threads (TPI): 4 - 112 TPI
  • Range of Longitudinal Feeds: 0.0036 - 0.0325 IPR
  • Range of Metric Threads: 0.2 - 6
  • Range of Spindle Speeds: 70 - 2,000
  • Spindle Bore: 1-1/2-in
  • Spindle Mount: D1-4
  • Spindle Taper with Sleeve: MT-5 (MT-3)
  • Steady Rest Capacity: 2-5/8-in
  • Swing Over Bed: 14-in
  • Swing Over Cross Slide: 8-25/32-in
  • Swing Through Gap: 18-3/4-in
  • Tailstock Spindle Travel: 3-3/4-in
  • Taper in Tailstock Spindle: MT-3
  • Voltage: 230V
  • Width of Bed: 7-3/8-in



https://www.autotoolworld.com/assets/icons/specs.jpg

JPW Industries - 321107 - Specifications

Brand NameJPW Industries
Manufacturer Part Number321107
Item DescriptionGHB-1440A Lathe with ACU-RITE VUE DRO and Collet Closer
