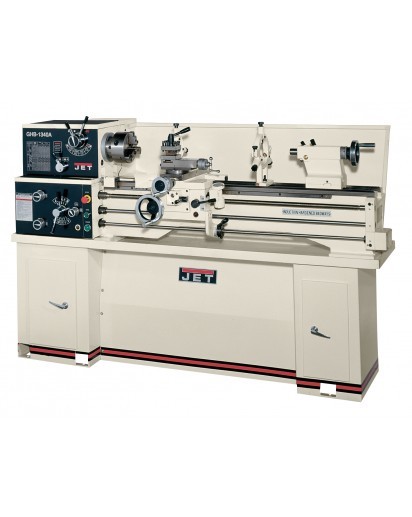

JPW Industries 321103AK | Wcghb-1340A Lathe With Acu-Rite Vue Dro And Cbs-1340A Stand

JET Geared head bench lathes are designed with an enclosed gearbox for smooth, quiet operation. Precision roller bearings support the hardened and ground spindle resulting in tight tolerances. Each JET Lathe comes loaded with features you’ve come to expect, all backed by the industry leading JET Two Year Warranty.

JPW Industries - 321103AK - Features

• Enclosed gearbox design provides smooth, quiet operation
• Hardened and ground gears are featured in the headstock and gearbox
• V-way bed is induction hardened and ground
• Gap bed section provided for large diameter work pieces
• Adjustable gibs are incorporated in the carriage and slideways
• Fast and easy speed changes
• D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
• Headstock is constantly oiled during operation
• Gear box gives wide inch threading and feed capablilities with no gear changes
• Independent leadscrew and feed rod
• Spindle accuation control is apron mounted
• Compound and cross slide have backlash adjustment
• Tailstock may be offset for turning tapers and includes an inch/metric gruduated quill
• Standard Equipment: 6" 3-jaw direct mount scroll chuck with top reversing jaws
• 8" 4-jaw independent chuck
• 12" Faceplate
• Four-way toolpost
• Steady & Follow rests
• Metric change gears
• Coolant tray
• Chuck guard
• Micro carriage bed stop
• Full length splash guard
• Toolbox with tools
• Tolerance test certificate
• Size 13 x 40
• Digital Readout ACU-RITE VUE
• Swing Over Bed (In.) 13
• Accessories Stand
• Swing Over Cross Slide (In.) 7-25/32
• Swing Through Gap (In.) 18-3/4
• Length of Gap (In.) 8
• Distance Between Centers (In.) 43
• Spindle Bore (In.) 1-3/8
• Spindle Mount D1-4
• Spindle Taper with Sleeve MT-5 (MT-3)
• Number of Spindle Speeds 8
• Range of Spindle Speeds (RPM) 70 - 2,000
• Number of Longitudinal and Cross Feed Rates 40
• Range of Longitudinal Feeds (IPR) 0.0018 - 0.0374
• Range of Cross Feeds (IPR) 0.0006 - 0.0130
• Number of Inch Threads 38
• Range of Inch Threads (TPI) 3-1/2 - 80
• Number of Metric Threads 23
• Range of Metric Threads 0.45 - 10
• Max Tool Size (In.) 5/8 x 5/8
• Compound Slide Travel (In.) 2-11/16
• Cross Slide Travel (In.) 6-5/16
• Carriage Travel (In.) 35
• Tailstock Spindle Travel (In.) 3-3/4
• Taper in Tailstock Spindle MT-3
• Follow Rest Capacity (In.) 2-3/8
• Steady Rest Capacity (In.) 2-3/4
• Width of Bed (In.) 7-3/8
• Motor (HP) 2 HP, 230V, 1Ph
• Prewired (V.) 230
• Weight (Lbs.) 1,154
• Style (Type) Bench - Geared Head
• Drive Geared Head

JPW Industries - 321103AK - Specifications

Brand Name	JPW Industries
Manufacturer Part Number	321103AK
Item Description	Wcghb-1340A Lathe With Acu-Rite Vue Dro And Cbs-1340A Stand
