JPW Industries 320039 | J-1600R-4, Radial Drill Press 7.5HP, 460
JPW Industries 320039 | J-1600R-4, Radial Drill Press 7.5HP, 460
Accept Credit Cards
Official PayPal Seal

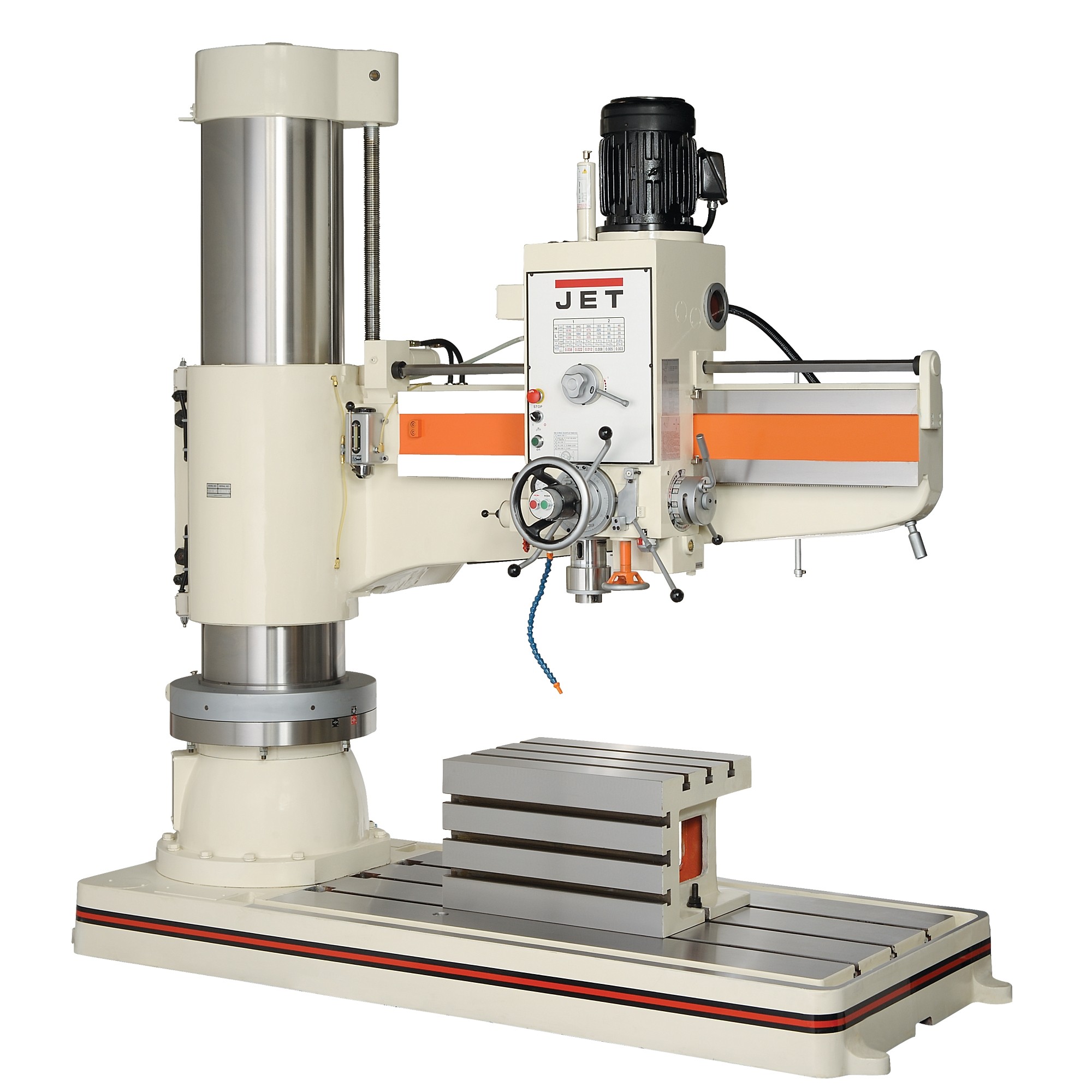

JPW Industries 320039 | J-1600R-4, Radial Drill Press 7.5HP, 460

assets/images/jpw-120.png
Availability: In Stock
Part Number: WC320039
0 Review(s)
Write a Review
$67,906.61
Retail Price:$71,690.87
Your Savings:$3,784.26(5%)
Have a question or need a quote?

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

JPW Industries 320039 | J-1600R-4, Radial Drill Press 7.5HP, 460


https://www.autotoolworld.com/assets/icons/features.jpg

JPW Industries - 320039 - Features

  • The power train gears and spline shaft are made of the finest quality, heat treated and ground nickel-chrome steel, giving extra strength and smoothness to high torque loads
  • The spindle is made of the finest case hardened steel for extra strength and wear
  • The spindle is supported by double row taper roller and thrust ball bearings at the nose, with thrust and radial axis bearings at the top
  • The spindle is built to withstand exceptionally heavy drilling and boring loads and to insure maximum accuracy
  • Push button controls are all reduced to 110V
  • Electrical circuits are located in the built-in control box at the rear of the arm- this keeps the contols dust and humidity free while making them easily accessible for maintenance
  • Entire frame is made of Meehanite and high tensile strength cast iron to handle the heaviest of jobs
  • Arm raising safety device prevents arm from dropping
  • Counter balanced mechanism for spindle return
  • 12 speeds/3 feed rates make exotic materials easier to drill, bore and tap
  • Centralized control center
  • Automatic tool ejector
  • Hydraulic head and column clamping
  • Built in work light
  • Coolant pump
  • Tool kit
  • Box table
  • Drilling Capacity Mild Steel (In.) 2-1/2
  • Drilling Capacity Cast Iron (In.) 2-7/8
  • Tapping Capacity Mild Steel (In.) 2
  • Tapping Capacity Cast Iron (In.) 2-3/8
  • Boring Capacity Steel (In.) 5
  • Boring Capacity Cast Iron (In.) 7-3/8
  • Column Diameter (In.) 17
  • Distance Spindle to Column (Min.) (In.) 13-3/8
  • Distance Spindle to Column (Max.) (In.) 62-1/4
  • Travel of Head Horizontal (In.) 44-7/8
  • Distance Base to Spindle (Min.) (In.) 13-3/8 - 63
  • Arm Travel Vertical (In.) 33-15/32
  • Table Size (L x W) (In.) 27-7/8 x 19-5/8 x 15-3/4
  • Base Dimensions (In.) 97-5/8 x 41-11/32 x 8-1/4
  • Spindle Taper (In. x TPI) MT-5
  • Quill Travel w/ Powerfeed Engaged (In.) 13
  • Number of Spindle Speeds 12 (40-1920)
  • Quill Down Feed Rates (IPR) 6 (.003 - .038)
  • Motor (HP) 7-1/2 HP, 460V, 3Ph
  • Elevating Motor 2
  • Coolant Pump Motor 1/8
  • Machine Height from Floor (In.) 124-58/64
  • Overall Dimensions (L x W x H) (In.) 112 x 55 x 116
  • Weight (Lbs.) 11,000



https://www.autotoolworld.com/assets/icons/specs.jpg

JPW Industries - 320039 - Specifications

Brand NameJPW Industries
Manufacturer Part Number320039
Item DescriptionJ-1600R-4, Radial Drill Press 7.5HP, 460
