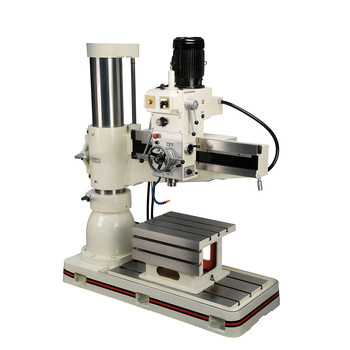

JPW Industries 320036 | J-1230R, 5HP, Radial Drill Press 230V
JPW Industries 320036 | J-1230R, 5HP, Radial Drill Press 230V
Accept Credit Cards
Official PayPal Seal

JPW Industries 320036 | J-1230R, 5HP, Radial Drill Press 230V

assets/images/jpw-120.png
Availability: In Stock
Part Number: WC320036
0 Review(s)
Write a Review
$34,794.81
Retail Price:$38,203.21
Your Savings:$3,408.40(9%)
Have a question or need a quote?

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

JPW Industries 320036 | J-1230R, 5HP, Radial Drill Press 230V


https://www.autotoolworld.com/assets/icons/features.jpg

JPW Industries - 320036 - Features

  • The powertrain gears and spline shafts are made of the finest quality, heat treated and ground nickel-chrome steel, giving extra strength and smoothness to high torque loads
  • The spindle is made of the finest case hardened steel for extra strength and wear
  • The spindle is supported by double row taper roller and thrust ball bearings at the nose, with thrust and radial axis bearings at the top
  • The spindle is built to withstand exceptionally heavy drilling and boring loads and to insure maximum accuracy
  • Push button controls are all reduced to 110V
  • Electrical circuits are located in the built-in control box at the rear of the arm- this keeps the contols dust and humidity free while making them easily accessible for maintenance
  • Entire frame is made of Meehanite and high tensile strength cast iron to handle the heaviest of jobs
  • Arm raising safety device prevents arm from dropping
  • Counter balanced mechanism for spindle return
  • 12 speeds/3 feed rates make exotic materials easier to drill, bore and tap
  • Centralized control center
  • Automatic tool ejector
  • Independent arm manual clamping system, which locks and unlocks the head and column
  • Built in work light
  • Includes: J-1230R, 5HP, Radial Drill Press 230V - 320036
  • Coolant Pump
  • Tool Kit
  • Box Table
  • Arm Travel Vertical: 34-5/8-in
  • Boring Capacity Cast Iron: 4-3/4-in
  • Boring Capacity Steel: 3-3/8-in
  • Column Diameter: 11-13/16-in
  • Coolant Pump Motor: 1/8 HP
  • Distance Base to Spindle (max/in.): 54-in
  • Distance Base to Spindle (min/in.): 19-3/8-in
  • Distance Column to Spindle (max/in.): 46-in
  • Distance Column to Spindle (min/in.): 13-3/4-in
  • Drilling Capacity: 1-7/8-in
  • Drilling Capacity Cast Iron: 2-5/16-in
  • Elevating Motor: 1 HP
  • Machine Height from Floor: 109-1/2-in
  • Motor: 2-1/2 to 5 HP, 3Ph, 230V
  • Number of Spindle Speeds: 12 (45 - 1550)
  • Quill Down Feed Rates (IPR): .002 .004 .006
  • Quill Travel: 9-7/8-in
  • Quill Travel w/ Powerfeed Engaged: 4-in
  • Spindle Taper: 4 MT
  • T-Slots Number and Size: 3 and 3/4-in
  • Table Size: 67-3/4-in x 28-in x 6-1/2-in
  • Tapping Capacity Cast Iron: 1-1/2-in
  • Tapping Capacity Mild Steel: 1-in
  • Travel of Head Horizontal: 35-in



https://www.autotoolworld.com/assets/icons/specs.jpg

JPW Industries - 320036 - Specifications

Brand NameJPW Industries
Manufacturer Part Number320036
Item DescriptionJ-1230R, 5HP, Radial Drill Press 230V
