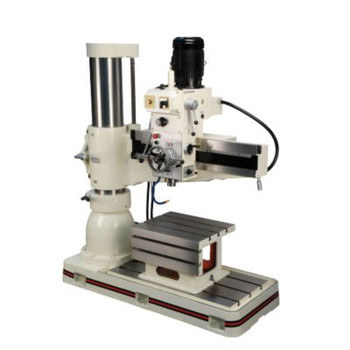

JPW Industries 320034 | J-1100R, 4 ft. Arm Radial Drill Press 230V
JPW Industries 320034 | J-1100R, 4 ft. Arm Radial Drill Press 230V
Accept Credit Cards
Official PayPal Seal

JPW Industries 320034 | J-1100R, 4 ft. Arm Radial Drill Press 230V

assets/images/jpw-120.png
Availability: In Stock
Part Number: WC320034
0 Review(s)
Write a Review
$22,492.84
Retail Price:$24,947.85
Your Savings:$2,455.01(10%)
Have a question or need a quote?

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

JPW Industries 320034 | J-1100R, 4 ft. Arm Radial Drill Press 230V


https://www.autotoolworld.com/assets/icons/features.jpg

JPW Industries - 320034 - Features

  • The power train gears and spline shaft are made of the finest quality, heat treated and ground nickel-chrome steel, giving extra strength and smoothness to high torque loads
  • The spindle is made of the finest case hardened steel for extra strength and wear
  • The spindle is supported by double row taper roller and thrust ball bearings at the nose, with thrust and radial axis bearings at the top
  • The spindle is built to withstand exceptionally heavy drilling and boring loads and to insure maximum accuracy
  • Push button controls are all reduced to 110V
  • Electrical circuits are located in the built-in control box at the rear of the arm- this keeps the controls dust and humidity free while making them easily accessible for maintenance
  • Entire frame is made of Meehanite and high tensile strength cast iron to handle the heaviest of jobs
  • Arm raising safety device prevents arm from dropping
  • Counter balanced mechanism for spindle return
  • 12 speeds/3 feed rates make exotic materials easier to drill, bore and tap
  • Centralized control center
  • Automatic tool ejector
  • Independent arm manual clamping system, which locks and unlocks head and column
  • Built in work light
  • Coolant pump
  • Length: 74 in.
  • Width: 34 in.
  • Height: 89 in.
  • Weight: 4190 lbs.
  • Arm Travel Vertical: 22-7/16-in
  • Base Dimensions: 67-3/4-in x 28-in x 6-1/2-in
  • Boring Capacity Cast Iron: 4-3/4-in
  • Boring Capacity Steel: 3-3/8-in
  • Column Diameter: 10-1/4-in
  • Coolant Pump Motor: 1/8 HP
  • Distance Base to Spindle (max/in.): 50-in
  • Distance Base to Spindle (min/in.): 18-1/2-in
  • Distance Column to Spindle (max/in.): 43-5/16-in
  • Distance Column to Spindle (min/in.): 9-5/8-in
  • Drilling Capacity Cast Iron: 2-1/4-in
  • Drilling Capacity Mild Steel: 1-3/4-in
  • Elevating Motor: 1 HP
  • Machine Height from Floor: 100-in
  • Max Distance Spindle to Table ( in.): 33-21/32-in
  • Motor: 1-1/2 to 3 HP, 230V, 3 Ph
  • Number of Spindle Speeds: 12 (44-1500)
  • Quill Down Feed Rates (IPR): 0.002, 0.004, 0.006
  • Quill Travel: 9-in
  • Quill Travel w/ Powerfeed engaged: 8-21/32-in
  • Spindle Taper: MT-4
  • T-Slots Number and Size: 3 & 3/4-in
  • Tapping Capacity Cast Iron: 1-1/4-in
  • Tapping Capacity Mild Steel: 1-in
  • Travel of Head Horizontal: 32-1/4-in



https://www.autotoolworld.com/assets/icons/specs.jpg

JPW Industries - 320034 - Specifications

Brand NameJPW Industries
Manufacturer Part Number320034
Item DescriptionJ-1100R, 4 ft. Arm Radial Drill Press 230V
