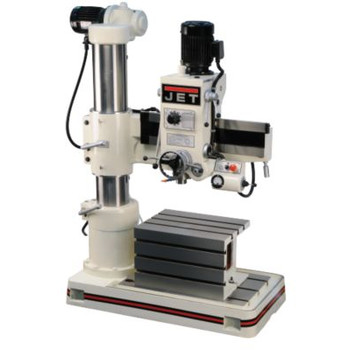

JPW Industries 320033 | J-720R, 3HP, Radial Drill Press 230/460V
JPW Industries 320033 | J-720R, 3HP, Radial Drill Press 230/460V
Accept Credit Cards
Official PayPal Seal

JPW Industries 320033 | J-720R, 3HP, Radial Drill Press 230/460V

assets/images/jpw-120.png
Availability: In Stock
Part Number: WC320033
0 Review(s)
Write a Review
$19,577.43
Have a question or need a quote?

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

JPW Industries 320033 | J-720R, 3HP, Radial Drill Press 230/460V


https://www.autotoolworld.com/assets/icons/features.jpg

JPW Industries - 320033 - Features

  • The powertrain gears and spline shafts are made of the finest quality, heat treated and ground nickel-chrome steel, giving extra strength and smoothness to high torque loads
  • The spindle is made of finest case hardened steel, for extra strength and wear
  • The spindle is supported by double row taper roller and thrust ball bearings at the nose, with thrust and radial axis bearings at the top
  • Build to withstand exceptionally heavy drilling and boring loads to insure maximum accuracy
  • Arm raising safety device prevents arm from dropping
  • Counter balanceed mechanism for spindle return
  • 6 Speeds/3 Feed rates make exotic materials easier to drill, bore and tap
  • Centralized control center
  • Automatic tool ejector
  • Independent arm electric clamping system, which locks and unlocks the head and column
  • Push botton controls are all reduced to 110VAC
  • Electrical circuits are located in the build-in control box at the rear of the arm. This keeps the controls dust-and-humidity-free while making them easilly accessible for maintenance
  • Entire frame is made of Meehanite and high tensile strength cast iron to handle the haviest of jobs
  • Build in work light
  • Includes: J-720R, 3HP, Radial Drill Press 230/460V - 320033
  • Coolant Pump
  • Tool Kit
  • Box Table
  • Specifications
  • Arm Travel Vertical: 23-13/16-in
  • Boring Capacity Cast Iron: 4-in
  • Boring Capacity Steel: 2-3/7-in
  • Column Diameter: 8-1/4-in
  • Coolant Pump Motor: 1/8 HP
  • Distance Base to Spindle (max/in.): 41-3/4-in
  • Distance Base to Spindle (min/in.): 9-5/8-in
  • Distance Column to Spindle (max/in.): 29-1/2-in
  • Distance Column to Spindle (min/in.): 8-5/8-in
  • Drilling Capacity: 1-1/2-in
  • Drilling Capacity Cast Iron: 2-in
  • Elevating Motor: 1 HP
  • Machine Height from Floor: 85-7/16-in
  • Motor: 3 HP, 3 Ph, 230/460V
  • Number of Spindle Speeds: 6 (88 - 1500)
  • Quill Down Feed Rates (IPR): .002 .004 .006
  • Quill Travel: 8-1/4-in
  • Quill Travel w/ Powerfeed Engaged: 8-1/4-in
  • Spindle Taper: 4 MT
  • T-Slots Number and Size: 3 and 3/4-in
  • Table Size: 23-5/8-in x 17-1/2-in x 15-in
  • Tapping Capacity Cast Iron: 1-in
  • Tapping Capacity Mild Steel: 3/4-in
  • Travel of Head Horizontal: 20-7/8-in



https://www.autotoolworld.com/assets/icons/specs.jpg

JPW Industries - 320033 - Specifications

Brand NameJPW Industries
Manufacturer Part Number320033
Item DescriptionJ-720R, 3HP, Radial Drill Press 230/460V
