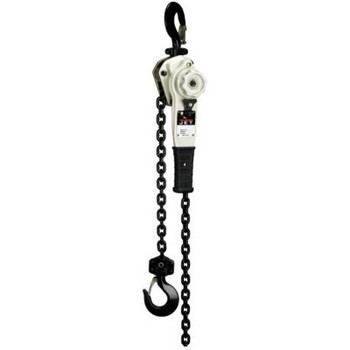

JPW Industries 210015 | JLH-100-15, 1 Ton Capacity Lever Hoist with 15 ft. Lift

JET JLH series lever hoists combine a true industrial design with highly refined quality culminating in the last lever hoist you may ever need to purchase. The attention to detail in the design of this series is second to none. The drop forged, carbon steel hooks are quenched and tempered to increase strength and will slowly stretch to indicate an overload situation. Cast steel safety latches, attached with Allen head screws and lock nuts, outclass the industry standard of stamped safety latches. The induction hardened, 100 grade load chain provides 20% more strength than the common 80 grade load chain found on inferior lever hoists. While the caged needle bearing supported load sheave provides efficient and smooth operation.The investment cast anchor plate, and all other internal parts are fully heat treated and quenched for added strength and reliability. All the internal parts are Zinc coated for additional corrosion protection. The triple spur gear drive train features alloy steel gears that have been heated treated, quenched and then case hardened for a lifetime of service. Finally, the patented fused brake disc design means little to no maintenance is required to keep these hoists operational. Every JLH lever hoist is factory tested and comes with a signed test certificate from the factory. All JLH lever hoists comply with ANSI/ASME B30.21 and HST-3 standards. Don't settle for anything less.

JPW Industries - 210015 - Features

• All steel construction and impact resistant body covers provide exceptional durability and protection
• Alloy steel hooks are industrial duty rated and rotate 360 degrees for easy rigging, the hooks will slowly stretch to indicate an overload situation and feature cast safety latches secured with Allen screws and lock nuts for additional safety
• Compact design with low headroom allows for easy installation and use in confined areas
• Slip clutch design overload protection available on all models
• Weston style brake with double pawl springs that provide increased safety redundancy and reliability
• Hardened 100 Grade load chain is 20% stronger than 80 Grade chains and will handle the harshest conditions
• With their patented design, the fused brake discs offer increased wear resistance and strength
• A powder coat industrial type finish is stronger and longer lasting providing increased protection from the elements
• Internal components are zinc plated for industrial quality corrosion resistance
• Caged needle bearing supported load sheave makes the drive train more efficient, and increases the reliability and work life of the lever hoist
• Includes: JLH-100-15, 1 Ton Capacity Lever Hoist with 15-ft Lift - 210015
• Weight: 17.61 lbs.
• Capacity: 1 Ton
• Headroom: 11.8-in
• Lever Length: 9.6-in
• Lift per Full Turn of Handle: 1.14-in
• Load Chain (dia./mm): 5.6
• Number of Falls: 1
• Rated Capacity: 2,204 lbs.
• Required Pounds of Pull to Lift Capacity: 79.3 lbs.
• Standard Lift: 15-ft

JPW Industries - 210015 - Specifications

Brand Name	JPW Industries
Manufacturer Part Number	210015
Item Description	JLH-100-15, 1 Ton Capacity Lever Hoist with 15 ft. Lift
