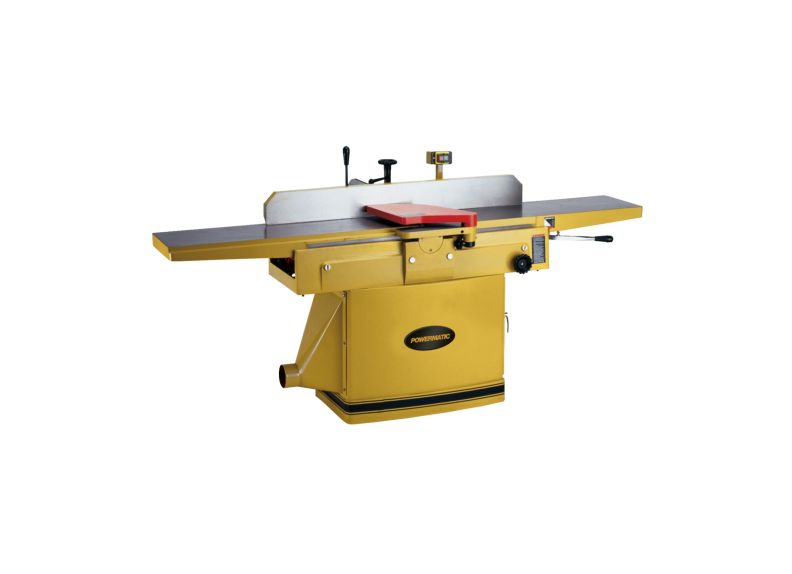

JPW Industries 1791308-4 | 12" Jointer 3HP 460V with Helical Head Cutter Head (1285HH-4)

This 12" Jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily via rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. Choose either the standard straight knife cutterhead or the helical cutterhead.

JPW Industries - 1791308-4 - Features

• Helical cutterhead with 42 two sided carbide inserts for fast knife changes with no adjustments and a quiet clean cut
• Large 12" x 84" precision ground cast iron table surface for heavy-duty work
• Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments
• Rack and pinion adjustable cast iron fence assembly for smooth fence positioning without play
• Table "lips" on both sides of cutterhead aid in noise reduction
• NOTE: The recommended max cutting depth for non-rabbeting cuts is 1/8”. The max cutting depth for rabbeting cuts is 1/2" as the manual has always stated.

JPW Industries - 1791308-4 - Specifications

Brand Name	JPW Industries
Item Description	12" Jointer 3HP 460V with Helical Head Cutter Head (1285HH-4)
Stock Number	PM9-1791308-4
Model Number	1285
Warranty	5 Year
Type of Cutterhead	Helical Head
Cutterhead Speed (RPM)	5000.0000
Cutting Capacity (W x D) (In.)	11-3/4 x 3/4
Dust Collection Minimum CFM Required (CFM)	800
Dust Port Outside Diameter (In.)	4
Number of Knives	3
Motor Power (HP)	3
Motor Voltage (V.)	460
Prewired Voltage (V.)	460
Motor Phase	3
Motor Amps	6.5
Gross Weight	880.0
Net weight	812.0
Prop 65	Cancer and Reproductive Harm
