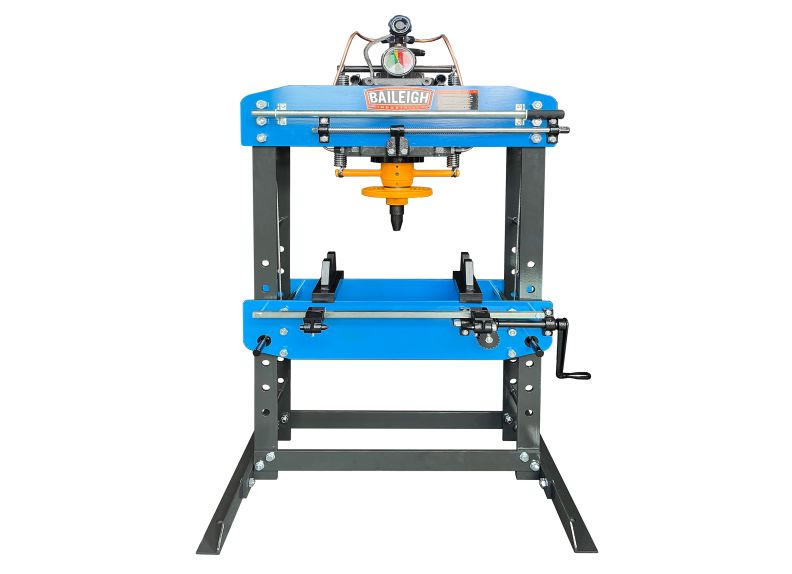

JPW Industries 1232704 | HSP-35A - 35 Ton Hydraulic Shop Press

Baileigh's HSP-35A is a 35-ton Hydraulic Shop Press with an H frame. Each machine is built using a heavy steel plate that is electro-welded together and comes standard with industrial-grade hydraulics. These 35-ton hydraulic shop presses are for serious fabrication and machine shop owners who demand only the best quality from their operation.

JPW Industries - 1232704 - Features

• 35-ton capacity.
• 24.75” working width.
• 4.5” cylinder stroke.
• Industrial-grade hydraulic components will provide years of reliable use.
• Adjustable table to fit a wide variety of applications.
• Includes pressure regulator and gauge.
• Rigid, electro-welded steel construction lets you work at full capacity with no worries about the machine flexing.
• Comes standard with a V-block set.
• Covered by a 1-year parts warranty and lifetime technical support by phone.
• Typically kept in stock for quick deliveries.
• Baileigh Industrial's brand-new line of H-Frame Shop Presses are engineered with meticulous attention to detail and unparalleled craftsmanship, these exceptional presses are set to redefine the industry standards.
• Designed to handle the toughest tasks with ease, Baileigh H-Frame Shop Presses offer unmatched strength, durability, and versatility. Whether you're shaping, bending, pressing, or straightening, these cutting-edge machines provide the ultimate precision and control, ensuring flawless results every time.

JPW Industries - 1232704 - Specifications

Brand Name	JPW Industries
Item Description	HSP-35A - 35 Ton Hydraulic Shop Press
Stock Number	BA9-1232704
Model Number	HSP-35A
Piston Stroke (In.)	4-1/2
Prop 65	Cancer and Reproductive Harm
Ram Diameter (In.)	3
Screw Stroke (In.)	2-3/4
Vertical Table Travel (In.)	22-3/8
Warranty	1 Year
Work Table Size (In.)	31 x 10-3/8
Gross Weight	772.0
Net weight	772.0
Cylinder Movable	No

JPW Industries - 1232704 - Documents and Downloads

JPW Industries 1232704 Specification Sheet

Click to View
