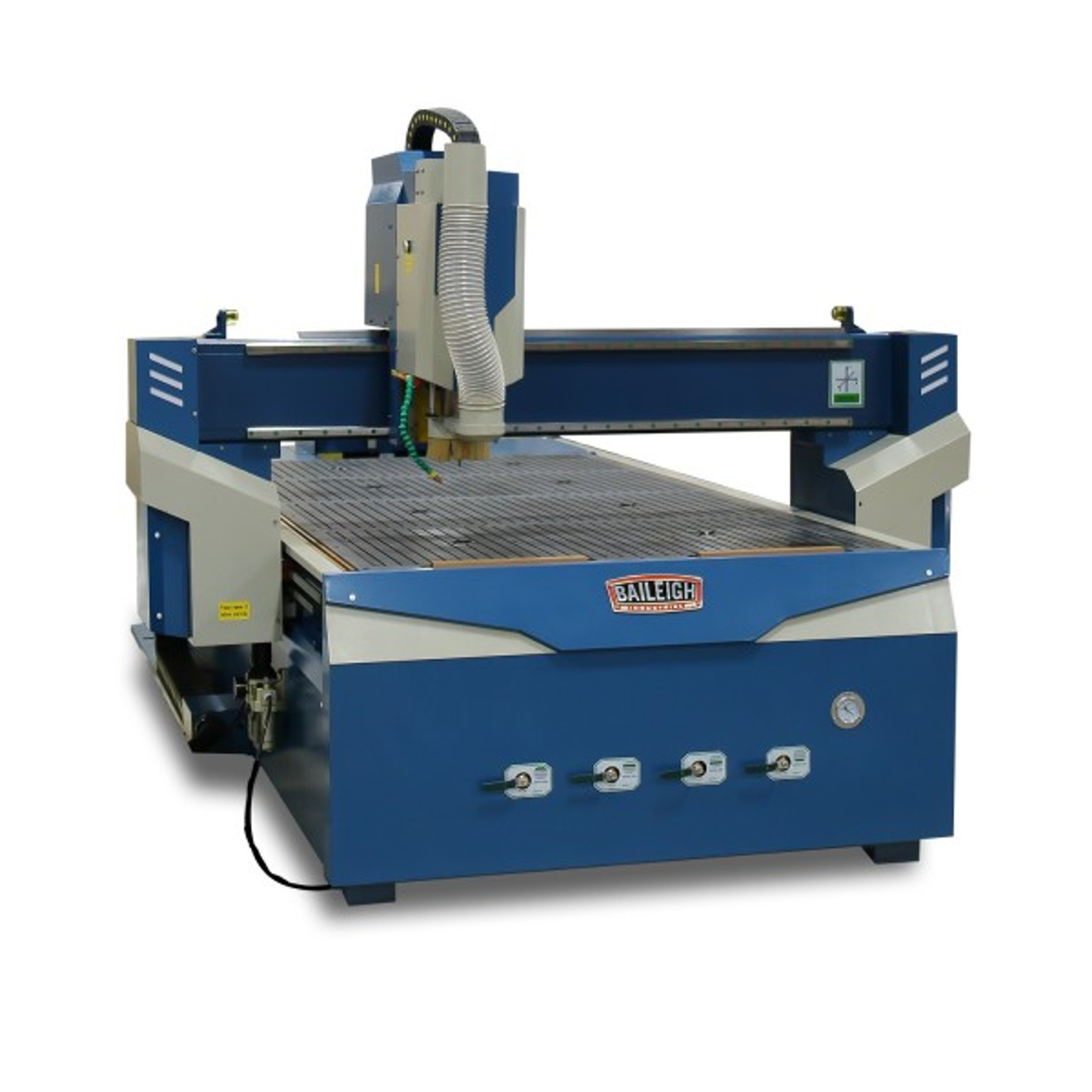

JPW Industries 1022028 | WR-84V-ATC - CNC Router Table

This large CNC router table can automatically change tooling in just 8 seconds. You can program profile switches right into your design to save time and maintain precision during industrial production runs.

JPW Industries - 1022028 - Features

• Large 4’ x 8’ table.
• Arrives pre-built
• with correct alignment. No complicated set-up process.
• Comes with software for plotting out designs on your computer, then turning them into cut patterns for the machine.
• Runs on 220-volt 3-phase power.
• Powerful 10hp spindle can tackle hard materials without flinching.
• 7.5 kilowatt air-cooled spindle will stay accurate through years of production.
• Variable spindle speed, from 3000 to 24,000 rpm.
• Servo motors ensure smooth running at both fast and slow speeds.
• High gantry is up and away from material, allowing you to see what it’s doing.
• Y axis moves far enough for the gantry to clear the table. You can take the material directly off ; no need slant it awkwardly.
• Upload your design to the table with a USB drive. Automatic tooling changes let you swap out bits with computer-controlled precision. Sensor compensates for the change in tool lengths. That change might seem tiny, but it makes a huge difference to the finished product.
• Pre-load up to 4 collets with your chosen profiles ; the router will switch between them as programmed.
• Powerful 7hp vacuum in the bed of the table holds the material in place during the cutting process.
• 4 vacuum zones allow you to turn on the valve only for the area where you’re working.
• Arrange each zone’s vacuum seal into the shape of the material to provide well-distributed suction.
• Dust shroud fits over the spindle; you can vacuum out all the dust and chips while you’re cutting.
• Fully-welded steel frame keeps the machine stable, helping the router last longer and preventing vibrations from taking the cut off-course.
• Covered by a 1-year parts warranty.
• You can count on lifetime technical support by phone from Baileigh’s team of reps, all with hands-on product experience.
• BobCAD-Cam Express Design Software (Included)
• The WR-84V-ATC comes standard with BobCAD-Cam Express programming software. You can design or plot out your project on any computer and load the table via a USB drive.

JPW Industries - 1022028 - Product Categories

• Baleigh Industrial
• Woodworking
• Cnc Router Tables

JPW Industries - 1022028 - Specifications

Brand Name	Baleigh (JPW Industries)
Manufacturer Part Number	1022028
Item Description	WR-84V-ATC - CNC Router Table
Item Number	WR-84V-ATC
Shipping Weight	4800lbs
Actual Working Area	96.5" x 50.5"
Speeds	7 (3,000 - 6,000 - 9,000 - 12,000 - 15,000 - 18,000 - 24,000 rpm)
Spindle	Air Cooled
Z Axis Stroke	8"
Maximum Moving Speed (Inches Per Minute)	394
Maximum Engraving Speed (Inches Per Minute)	394
Reposition Accuracy	0.0019
Tool Diameters	1/8”, 4mm, 6mm, & 12mm
Power	220V Three Phase
Length	132"
Width	83"
Height	70"
Horse Power	10
Weight (lbs)	4800
Table Style	Vacuum
Notes	Applicable Materials - Acrylic, Copper, Aluminum, Wood, PVC, ABS, Insulation Plate, Bakelite Plate, Honeycomb Plate, Resin, Organic Board, Aluminum Composite Panel
Shipping Dimensions (Inches)	144x82x81
