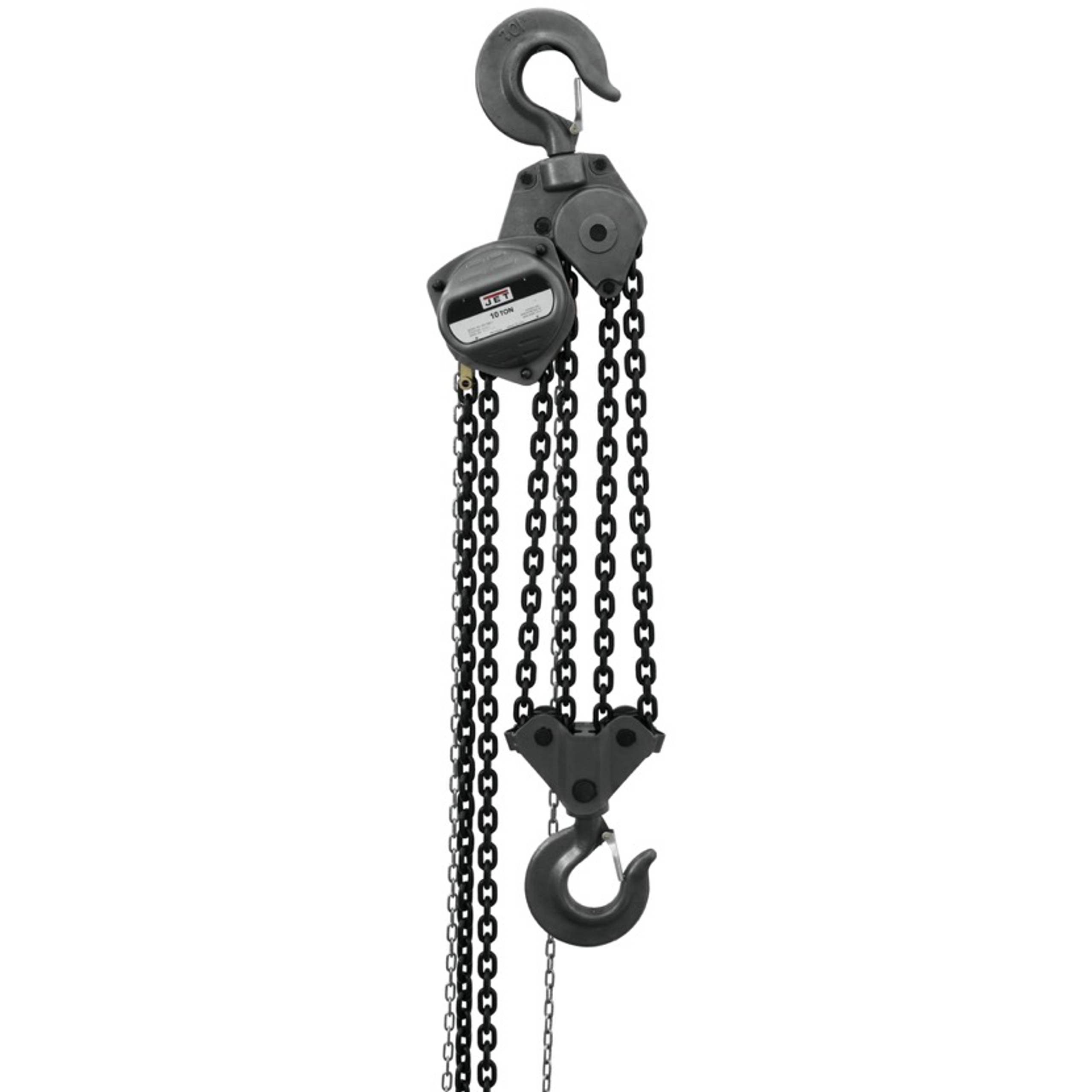

JPW Industries 101962 | 10-Ton Hand Chain Hoist with 20' Lift

JET S90 Series hand chain hoists were designed with reliability and durability to perform in light-duty industrial applications. Easily maintained and serviced, the JET S90 is available in capacities from ½ ton to 10 ton and standard lifts of 10, 15, 20, and 30 feet (custom lifts available). The JET S90 is the ideal contractor grade hoist.

JPW Industries - 101962 - Features

• Safety
• The Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security and increased safety
• Industrial rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation
• Durability
• Grade 80 black oxide coated load chain for added durability
• Intended for the harshest environments, the heat treated load plates and case hardened corrosive resistant internal parts extend the life of the hoist
• NEW! Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
• Needle bearings support the load sheave to increase efficiency and promote smooth operation
• Impact resistant all steel construction for added durability and protection
• The smaller body and lightweight design are ideal for confined areas and low headroom applications
• Standards
• This product complies with ANSI / ASME B30.16 and HST-2 Standards
• Load tested to 125% of capacity with certificate

JPW Industries - 101962 - Product Categories

• JET Lifting Systems
• Hoists
• Hand Chain Hoists
• S-90 Hand Chain Hoists

JPW Industries - 101962 - Specifications

Brand Name	JET (JPW Industries)
Manufacturer Part Number	101962
Item Description	10-Ton Hand Chain Hoist with 20' Lift
Load Capacity (Tons)	10
Lift (Ft.)	20
Overload Protection	No
Headroom (In.)	30
Hand Chain Overhaul (Ft.) to Lift Load 1Ft.	357
Hand Chain Pull Force (LBF) to Move Load	96
Load Chain Dimensions (Mm.)	10 x 30
Number of Falls	4
Weight (Lbs.)	284
Width	19.2000
Weight	280.0000
Height	16.3000
Length	22.0000
