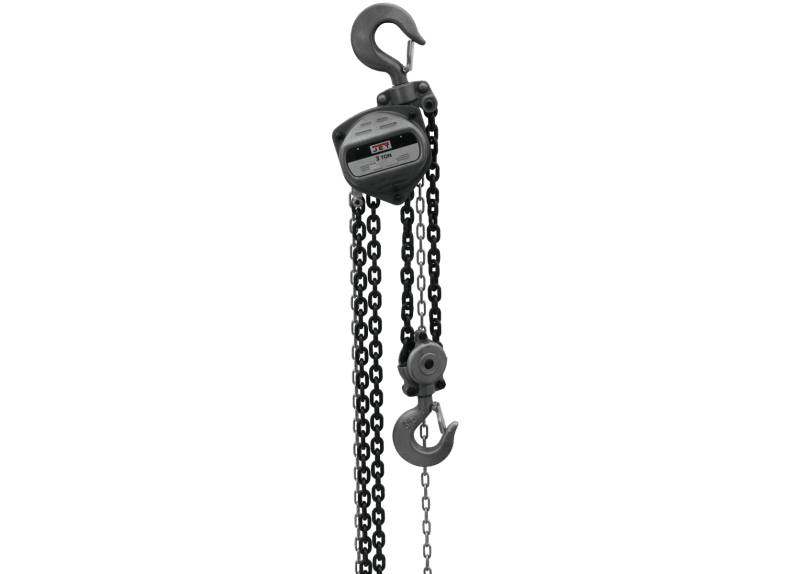

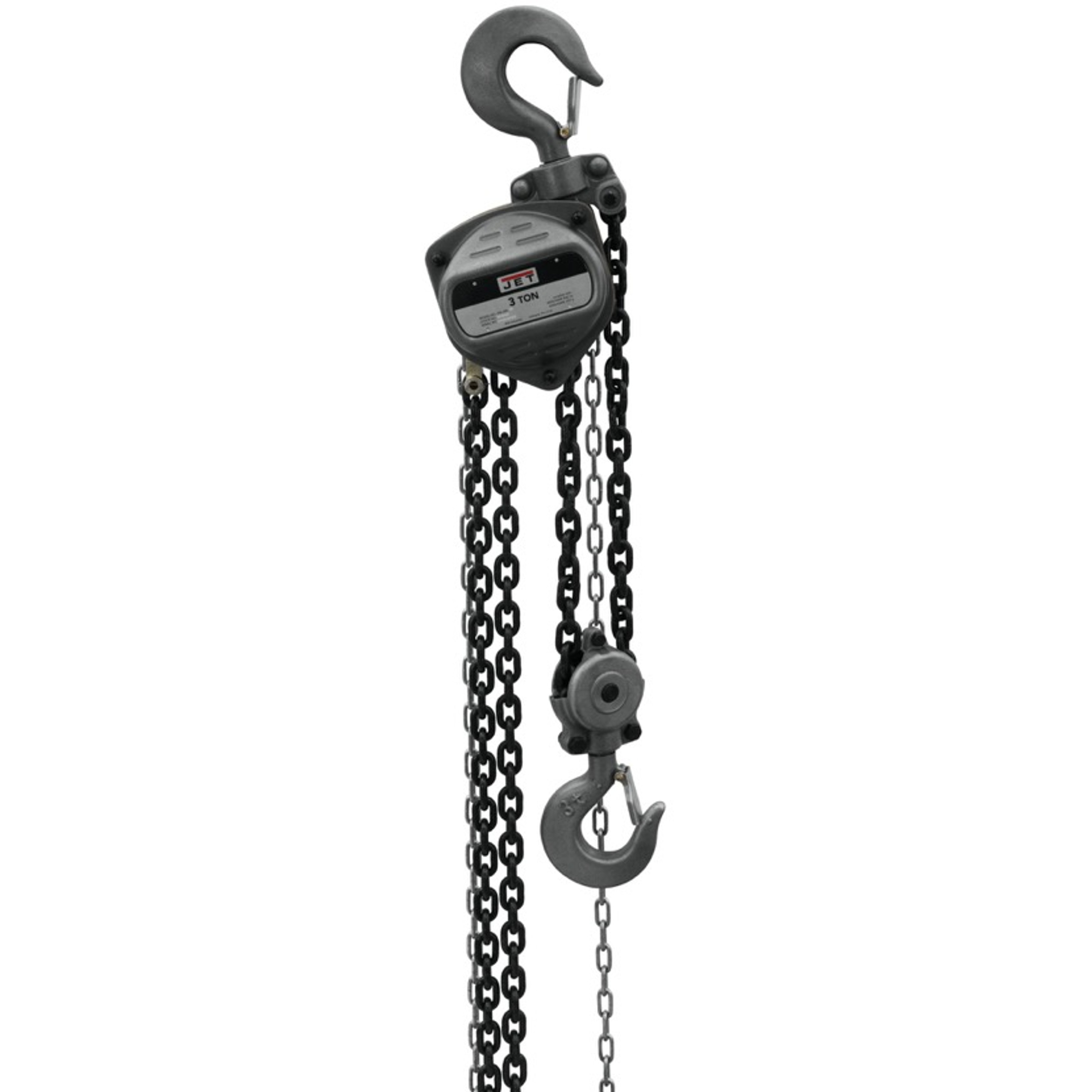

JPW Industries 101941 | 3-Ton Hand Chain Hoist with 15' Lift

JET S90 Series hand chain hoists were designed with reliability and durability to perform in light-duty industrial applications. Easily maintained and serviced, the JET S90 is available in capacities from ½ ton to 10 ton and standard lifts of 10, 15, 20, and 30 feet (custom lifts available). The JET S90 is the ideal contractor grade hoist.

JPW Industries - 101941 - Features

• Safety
• The Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security and increased safety
• Industrial rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation
• Durability
• Grade 80 black oxide coated load chain for added durability
• Intended for the harshest environments, the heat treated load plates and case hardened corrosive resistant internal parts extend the life of the hoist
• NEW! Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
• Needle bearings support the load sheave to increase efficiency and promote smooth operation
• Impact resistant all steel construction for added durability and protection
• The smaller body and lightweight design are ideal for confined areas and low headroom applications
• Standards
• This product complies with ANSI / ASME B30.16 and HST-2 Standards
• Load tested to 125% of capacity with certificate

JPW Industries - 101941 - Product Categories

• JET Lifting Systems
• Hoists
• Hand Chain Hoists
• S-90 Hand Chain Hoists

JPW Industries - 101941 - Specifications

Brand Name	JET (JPW Industries)
Manufacturer Part Number	101941
Item Description	3-Ton Hand Chain Hoist with 15' Lift
Load Capacity (Tons)	3
Lift (Ft.)	15
Overload Protection	No
Headroom (In.)	20-1/2
Hand Chain Overhaul (Ft.) to Lift Load 1Ft.	115
Hand Chain Pull Force (LBF) to Move Load	87
Load Chain Dimensions (Mm.)	8 x 24
Number of Falls	2
Weight (Lbs.)	90
Width	11.0000
Weight	72.0000
Height	8.5000
Length	15.0000
