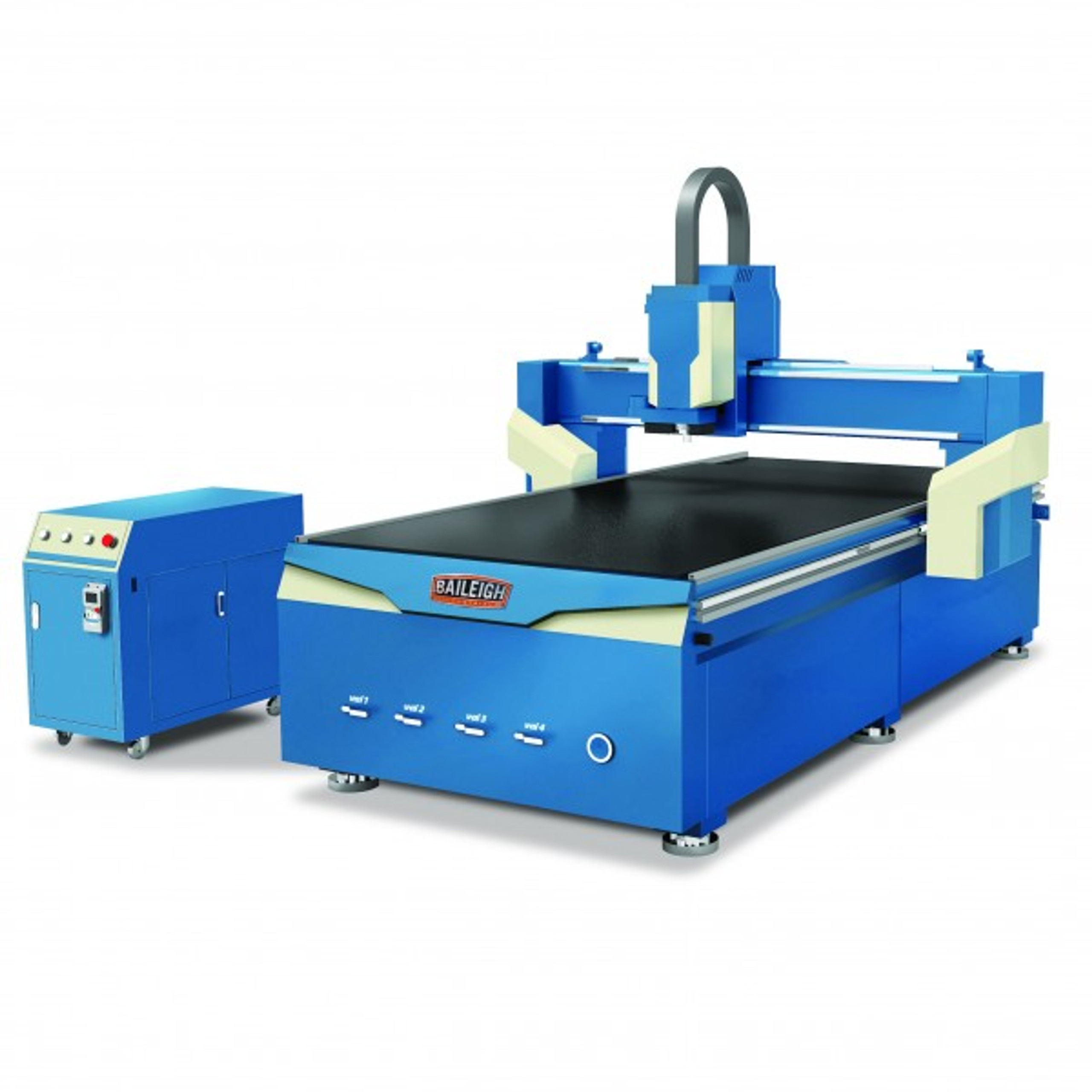

JPW Industries 1018908 | CNC Wood Router Table - WR-105V-ATC

This CNC wood router table can automatically change tooling in just 8 seconds. You can program profile switches right into your design to save time and maintain precision during industrial production runs.

JPW Industries - 1018908 - Features

• Large 5’ x 10’ table.
• Arrives pre-built
• with correct alignment. No complicated set-up process.
• CNC wood router table comes with software for plotting out designs on your computer, then turning them into cut patterns for the machine.
• This industrial router machine runs on 220-volt 3-phase power.
• Powerful 12hp spindle can tackle hard materials without flinching.
• 9 kilowatt air-cooled spindle will stay accurate through years of production.
• Variable spindle speed, from 0 to 24,000 rpm.
• Servo motors ensure smooth running at both fast and slow speeds.
• High gantry is up and away from material, allowing you to see what it’s doing.
• Y axis moves far enough for the gantry to clear the table. You can take the material directly off ; no need slant it awkwardly.
• Upload your design to the table with a USB drive. Automatic tooling changes let you swap out bits with computer-controlled precision. Sensor compensates for the change in tool lengths. That change might seem tiny, but it makes a huge difference to the finished product.
• Pre-load up to 6 collets with your chosen profiles ; the router will switch between them as programmed.
• Powerful 7hp vacuum in the bed of the wood router machine holds the material in place during the cutting process.
• 4 vacuum zones allow you to turn on the valve only for the area where you’re working.
• Arrange each zone’s vacuum seal into the shape of the material to provide well-distributed suction.
• Dust shroud fits over the spindle; you can vacuum out all the dust and chips while you’re cutting.
• Fully-welded steel frame keeps the machine stable, helping the router last longer and preventing vibrations from taking the cut off-course.
• CNC wood router table covered by a 1-year parts warranty.
• You can count on lifetime technical support by phone from Baileigh’s team of reps, all with hands-on product experience.
• BobCAD-Cam Express Design Software (Included)
• The WR-105V-ATC comes standard with BobCAD-Cam Express programming software. You can design or plot out your project on any computer and load the table via a USB drive. To learn more or download a free trial, click the BobCAD-Cam logo above.

JPW Industries - 1018908 - Product Categories

• Baleigh Industrial
• Woodworking
• Cnc Router Tables

JPW Industries - 1018908 - Specifications

Brand Name	Baleigh (JPW Industries)
Manufacturer Part Number	1018908
Item Description	CNC Wood Router Table - WR-105V-ATC
Item Number	WR-105V-ATC
Shipping Weight	5500lbs
Actual Working Area	118" x 59"
Speeds	Variable
Spindle	Air Cooled
RPM	0-24000
Z Axis Stroke	8"
Maximum Moving Speed (Inches Per Minute)	2362
Maximum Engraving Speed (Inches Per Minute)	984
Reposition Accuracy	0.0015
Tool Diameters	SK16
Power	220V Three Phase
Length	140"
Width	110"
Height	89"
Horse Power	12
Weight (lbs)	3200
Table Style	Vacuum
Notes	applicable Materials - Acrylic, Copper, Aluminum, Wood, PVC, ABS, Insulation Plate, Bakelite Plate, Honeycomb Plate, Resin, Organic Board, Aluminum Composite Panel
Shipping Dimensions (Inches)	156” x 94” x 90”
Machine Dimensions (L x W x H)	152” x 91.14” x 77.5”
