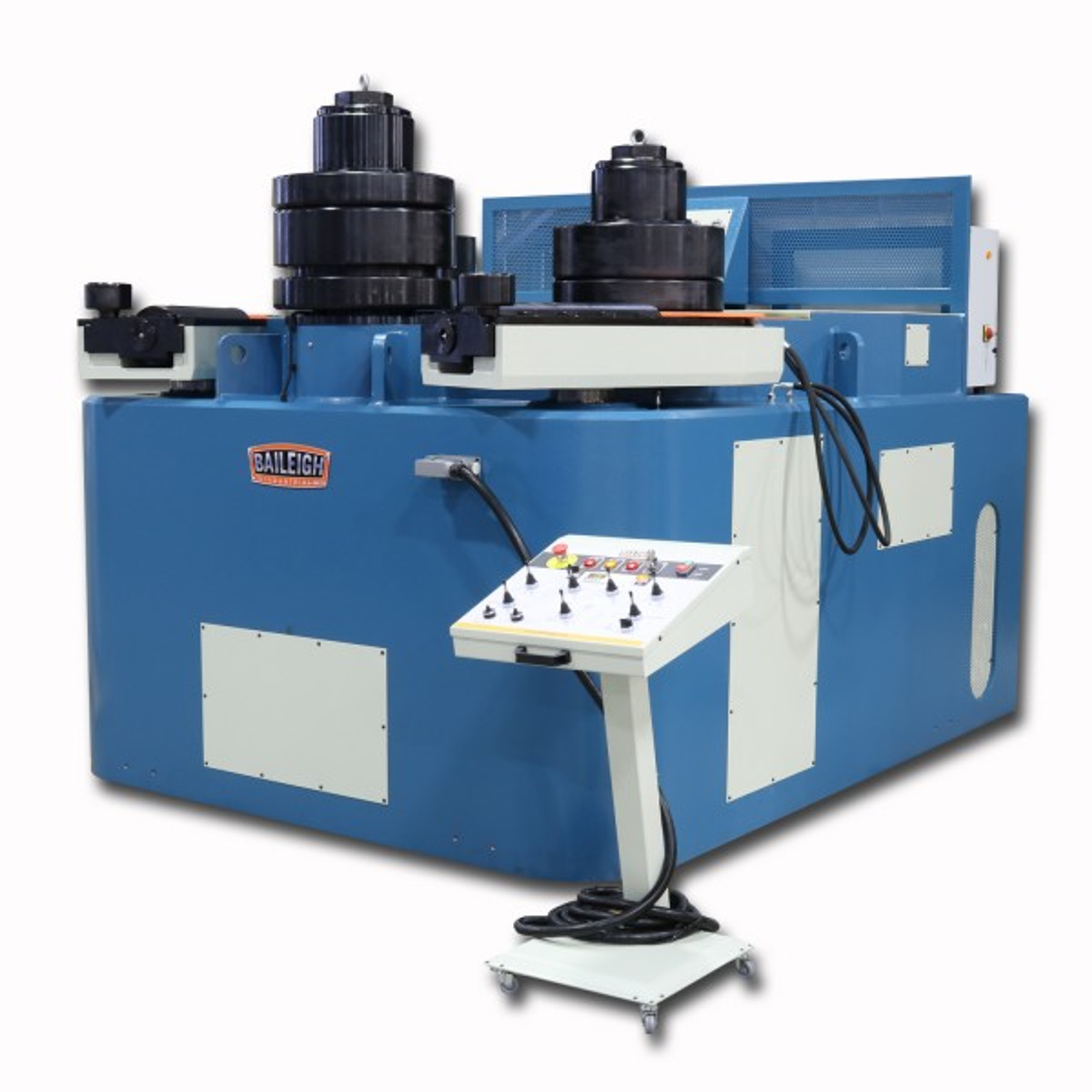

JPW Industries 1013389 | Heavy Duty Roll Bender R-H250

With a welded steel frame weighing 17 tons , this hydraulic roll bender can handle production runs in heavy-duty materials while maintaining accuracy.

JPW Industries - 1013389 - Features

• Runs on 220-volt 3-phase power.
• Double-pinch design with 3 driven rolls.
• Independently-adjustable left and right bending rolls minimize wasteful straight lengths at both the beginning and end of each part.
• Control all machine functions at once from the movable, easy-to-use podium.
• Digital readouts for every controlled element of the machine makes the programming of single radius bends virtually effortless.
• Baileigh backs this tubing bender with a 1-year parts warranty as well as lifetime technical support by phone.
• Use this machine for: Structural applications, playgrounds, shipyard building, or any high-production, low-waste project.
• Why choose the R-H250 over comparable machines?
• Heavy steel construction minimizes flex at full capacity. With an upper shaft diameter just under 7.5”, why settle for anything less? Few roll benders on the market can compete with that kind of structural strength!
• Independently-controlled hydraulic lateral guide rolls and lower bending rolls offer a level flexibility you'll only find in a Baileigh Industrial machine.
• Internal memory and position recording will improve efficiency at any shop doing large bending, regardless of production numbers.
• We’ll work with you to engineer a “turnkey” package, ready for use and specific to your applications.
• You can count on Baileigh’s team of customer reps (all with experience using our machines) to provide remote assistance and free application advice for as long as you’re using the R-H250.

JPW Industries - 1013389 - Product Categories

• Baleigh Industrial
• Metal Forming
• Roll Benders

JPW Industries - 1013389 - Specifications

Brand Name	Baleigh (JPW Industries)
Manufacturer Part Number	1013389
Item Description	Heavy Duty Roll Bender R-H250
Item Number	R-H250
Driven Rolls	3
Roll Adjustment	Hydraulic
Pipe Capacity	Size: 8" (sch. 40) / Min. Dia.: 98"
Square Tube Capacity	Size: 5.875" (.375")
Solid Round Capacity	Size: 5" / Min. Dia. 62"
Flat Bar Easy Way	Size: 13.75" (1.96") / Min. Dia. 36"
Flat Bar Hard Way	Size: 6.875" (1.5") / Min. Dia. 52"
Lower Shaft Dia.	9.05"
Upper Shaft Dia.	9.84"
Control	DRO
Motor	5.3 hp
Pinch	Double
Power	220V 3- phase
Shipping Weight	34000lbs
Material Type	All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
*Optional Tooling	Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.
Dimensions L x W x H	88" x 132.25" x 82"
