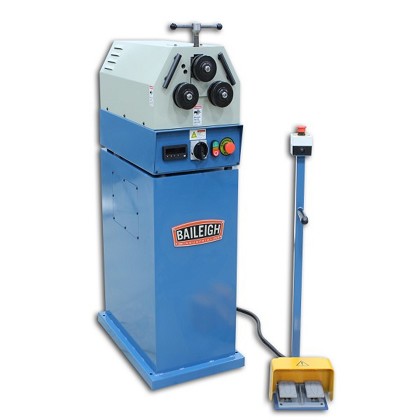

JPW Industries 1006850 | Roll Bender - R-M20-220

We designed the R-M20 ring roller with tight, compact roll formation to shape small diameter material and roll coils without trouble.

JPW Industries - 1006850 - Features

• Runs on 220-volt 3-phase power.
• Maximum capacity of.5" schedule 40 pipe and 1" round tube.
• Adjustable lateral guides let you bend to just about any coil width imaginable.
• Convenient foot pedals control forward and reverse roll direction.
• Easy-to-read digital display shows top roll position, making bend repeatability a cinch.
• Emergency stop protects your safety, as well as the machine.
• Rugged steel frame plus hardened, ground, and polished steel shafts ensure accuracy and years of productivity.
• Machine head separates from included stand to make the machine portable and easy to store —an advantage for working in small shops or traveling to work on-site.
• Covered by a 1-year parts warranty and lifetime technical support from Baileigh’s experienced reps.

JPW Industries - 1006850 - Product Categories

• Baleigh Industrial
• Metal Forming
• Roll Benders

JPW Industries - 1006850 - Specifications

Brand Name	Baleigh (JPW Industries)
Manufacturer Part Number	1006850
Item Description	Roll Bender - R-M20-220
Item Number	R-M20-220
Driven Rolls	2
Roll Adjustment	Manual
Pipe Capacity	Size: .5” (sch.40) / Min. Dia.: 14”
Round Tube Capacity	Size: 1" (.0625") Min. Dia.: 16"
Square Tube Capacity	.75" (.0625") Min. Dia.: 12"
Solid Round Capacity	Size: .5" Min. Dia.: 5"
Flat Bar Easy Way	Size: 1.75" Min. Dia.: 12"
Flat Bar Hard Way	Size: 1" Min. Dia.: 8"
Angle Iron Capacity	Size: .75" (.125") Min. Dia.: 10"
Shaft Diameter	.78"
Shaft Center Distance Lower Rolls	10.88"
Upper Roll Dia.	3.38"
Lower Roll Dia.	3.38”
Pinch	Single
Power	220V - 3-Phase
Shipping Weight	420lbs
Material Type	All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
*Optional Tooling	Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.
Speeds	14285
Shipping Dimensions (Inches)	60x44x59
