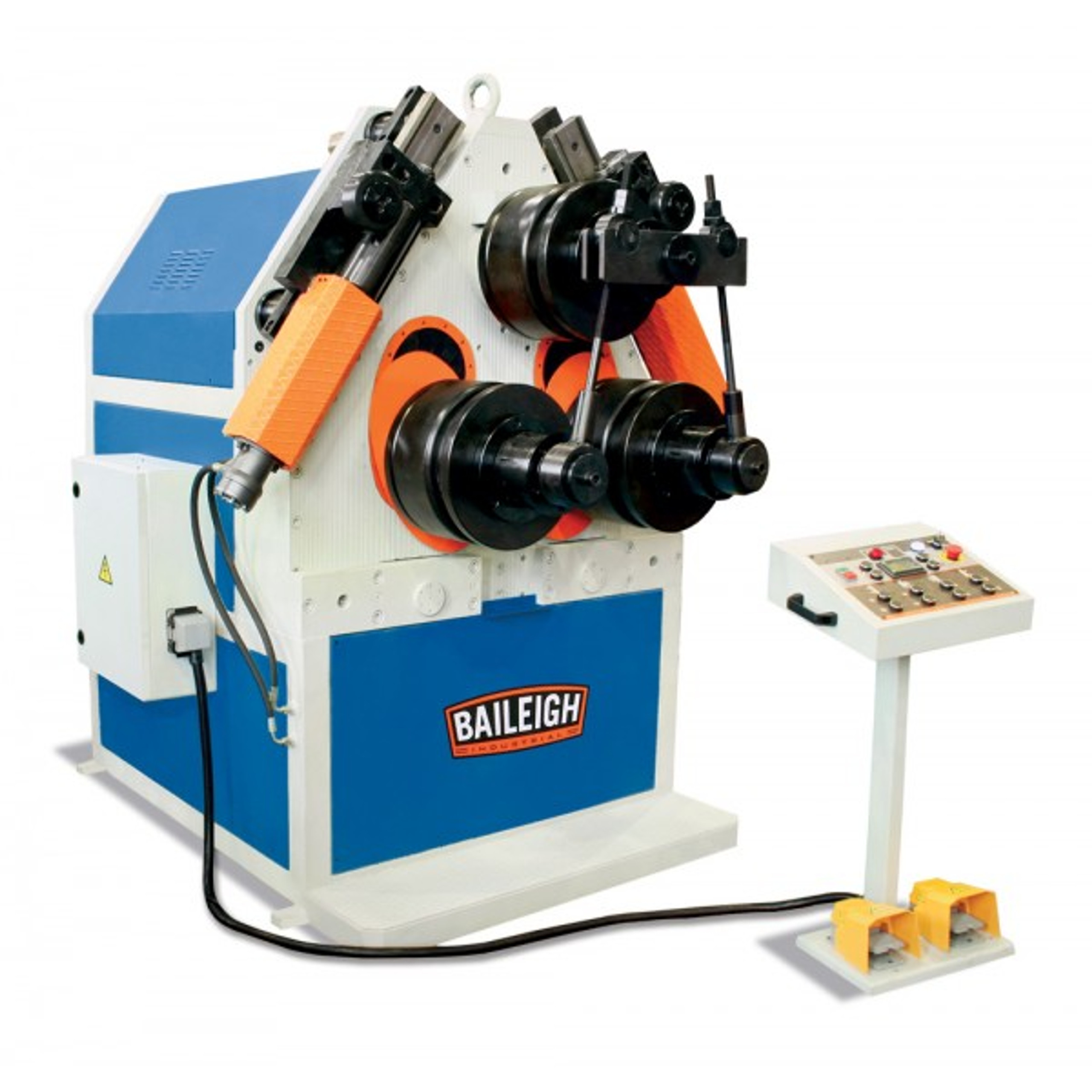

JPW Industries 1006833 | Hydraulic Roll Bender R-H150

The programmable double-pinch design of this tube roller lets you make repeatable bends and complex parts with ease.

JPW Industries - 1006833 - Features

• 3 driven rolls run on 220-volt 3-phase power.
• Rolls up to 6.25” round tube and 4.75” x 4.75” x 0.5” angle iron.
• Hydraulic cylinders connected to 2 bottom rolls accomplish pre- and post-bending to cut down on material waste.
• Digital readout displays positions of bottom rolls.
• You can program stops for each shaft for precise results.
• Movable operator podium includes control buttons and attached foot pedals to specify roll direction.
• Operate this ring roller in vertical position or lay it on its back, in horizontal position , for large radius jobs and long material sections.
• The machine’s heavy steel plate frame , bolted and welded together, minimizes flex and ensures accuracy over years of profitable production.
• Baileigh backs this tubing roller with a 1-year parts warranty and lifetime technical support by phone.
• Recommended for: Structural applications, playgrounds, shipyard building, or any high-production, low-waste project.
• Why choose the R-H150 hydraulic roll bender over similar machines?
• Double-pinch design eliminates wasted length of straight material at the ends of parts, a problem associated with most roll benders—but not this one!
• The R-H150 comes standard with lateral guide rolls for smooth angle correction, a feature that our competitors charge for as an upgrade.
• Digital readout helps you monitor precision, so you can take on production runs without hassle.
• We manufacture and stock optional tooling sets to fit many applications. Ask us which one would work best for your jobs!
• You can count on Baileigh’s team of experienced customer service reps for machine troubleshooting and project hacks—just a phone call away.
• We also offer a Vertical Metal Cutting Band Saw.

JPW Industries - 1006833 - Product Categories

• Baleigh Industrial
• Metal Forming
• Roll Benders

JPW Industries - 1006833 - Specifications

Brand Name	Baleigh (JPW Industries)
Manufacturer Part Number	1006833
Item Description	Hydraulic Roll Bender R-H150
Item Number	R-H150
Roll Adjustment	Hydraulic
Pipe Capacity	Size: 5.5" (sch. 40) / Min. Dia.:73"
Round Tube Capacity	Size: 6.250" (.125") / Min. Dia.: 118"
Square Tube Capacity	Size: 4" (.196") / Min. Dia.: 118"
Solid Round Capacity	Size: 3.375" / Min. Dia.: 36"
Flat Bar Easy Way	Size: 7.875" (2") / Min. Dia.: 40"
Flat Bar Hard Way	Size: 5.5" (1.125") / Min. Dia.: 118"
Angle Iron Capacity	Size: 4.75" (.5") / Min. Dia.: 60"
Shaft Diameter	4.724"
Lower Roll Dia.	15.354"
Pinch	Double
Digital Readout	Yes
Power	220V / 3-phase
Shipping Weight	10400lbs
Material Type	All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
*Optional Tooling	Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.
Shipping Dimensions (Inches)	58x79x81
