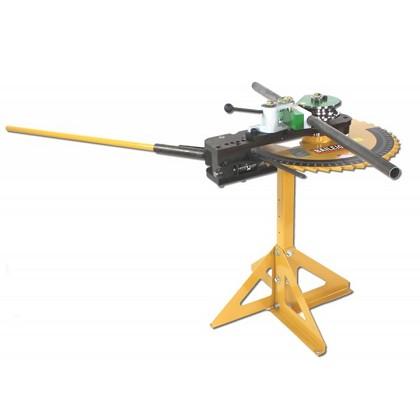

JPW Industries 1006773 | Tubing Bender - RDB-100

For the fabricator who needs to bend lower production runs , this manual tubing bender maintains a high standard of professional-looking bends.

JPW Industries - 1006773 - Features

• Bends up to 1.75” OD tubing with a maximum wall thickness of.095” and 1” schedule 40 pipe.
• Large-diameter indexing allows you to bend up to 206° (180° plus spring-back) without having to re-index and re-pin —unlike most other manual tube benders on the market.
• Quick-release counter die system lets you easily load and unload the material.
• Tension springback mechanism holds position as the bend mechanism grabs the next tooth on the index wheel.
• Degree scale displays your bend angle for fast reference.
• All tooling has a start-of-bend indicator line so you can make complex bends with accuracy and confidence.
• Ratcheting bend system lets you conveniently shift to manual override for lighter-gauge materials.
• Ships mostly pre-assembled ; simply attach the handle and stand.
• Accepts hundreds of round and square tubing die sets as well as round pipe die sets.
• Includes stand, degree dial, and handle.
• Steel plate construction ensures strength and precision.
• Backed by a 1-year parts warranty.
• Includes lifetime technical support. Contact our knowledgeable team by phone or email for as long as you’re using the bender.
• Recommended for: Projects using thin wall tubing.

JPW Industries - 1006773 - Product Categories

• Baleigh Industrial
• Metal Forming
• Rotary Draw Benders

JPW Industries - 1006773 - Specifications

Brand Name	Baleigh (JPW Industries)
Manufacturer Part Number	1006773
Item Description	Tubing Bender - RDB-100
Item Number	RDB-100
Country of Manufacture	United States
Minimum CLR	.5"
Minimum OD	.25"
Mild Steel Solid Rod	1"
Mild Steel Pipe Schedule 40	1"
Mild Steel Round Tube Wall	1.75" (.083)
Mild Steel Square Tube (Wall)	1" (.125)
Stainless Steel Pipe Schedule 40	.75"
Stainless Steel Round Tube Wall	1.5" (.083)
Chromolly Round Tube Wall	1.5" (.083)
Aluminum Round Tube Wall	2" (.125)
Maximum Center Line Radius Clr	10.5"
Power	Manual
Shipping Weight	410lbs
Special Notes	Tooling not included
Things to Know Before Purchase	All capacities based on A53 grade A (mild steel) 48,000 psi tensile materials; heavy wall and high tensile materials may reduce machine capacity. Consult Baileigh Industrial to review material specifications.
Shipping Dimensions (Inches)	48x45x26
