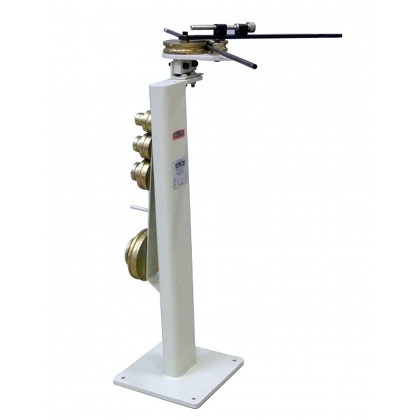

JPW Industries 1006772 | RDB-10 - Hand Bender

If your job involves building race cars, restoring autos and airplanes, or working with an automated machinery builder , you know the value of properly bent lines. Our simple and precise manual tubing bender will save you time and money from the first time you use it.

JPW Industries - 1006772 - Features

• Bends tubing up to 180°.
• Makes serpentine bends without difficulty at very tight radii (depending on the OD, material, and wall thickness).
• Comes standard with 10 different size combinations , from 1/4" to 5/8" OD in either 3 or 5 times the diameter radii.
• Works with mild steel, stainless steel, and certain coppers and aluminums.
• Includes a heavy pedestal and tooling rack (in addition to the bending machine itself).
• The RDB-10 Hand Bender is Recommended for: Bending air lines, brake lines, fuel lines, and general hydraulic lines.
• Included Die Sets
• 1/4 x 3D
• 6.350 mm x 3D
• 1/4 x 5D
• 6.350 mm x 5D
• 5/16 x 3D
• 7.938 mm x 3D
• 5/16 x 5D
• 7.938 mm x 5D
• 3/8 x 3D
• 9.525 mm x 3D
• 3/8 x 5D
• 9.525 mm x 5D
• 1/2 x 3D
• 12.7 mm x 3D
• 1/2 x 5D
• 12.7 mm x 5D
• 5/8 x 3D
• 15.875 mm x 3D
• 5/8 x 5D
• 15.875 mm x 5D
• You may also like the Manual Tube Bender RDB-050.
• Questions? Give us a call and talk to a Baileigh expert: (920) 684-4990.

JPW Industries - 1006772 - Product Categories

• Baleigh Industrial
• Metal Forming
• Rotary Draw Benders

JPW Industries - 1006772 - Specifications

Brand Name	Baleigh (JPW Industries)
Manufacturer Part Number	1006772
Item Description	RDB-10 - Hand Bender
Item Number	RDB-10
Power	Manual
Shipping Weight	155lbs
Things to Know Before Purchase	All capacities based on A53 grade A (mild steel) 48,000 psi tensile materials; heavy wall and high tensile materials may reduce machine capacity. Consult Baileigh Industrial to review material specifications.
Shipping Dimensions (Inches)	43x16x19
