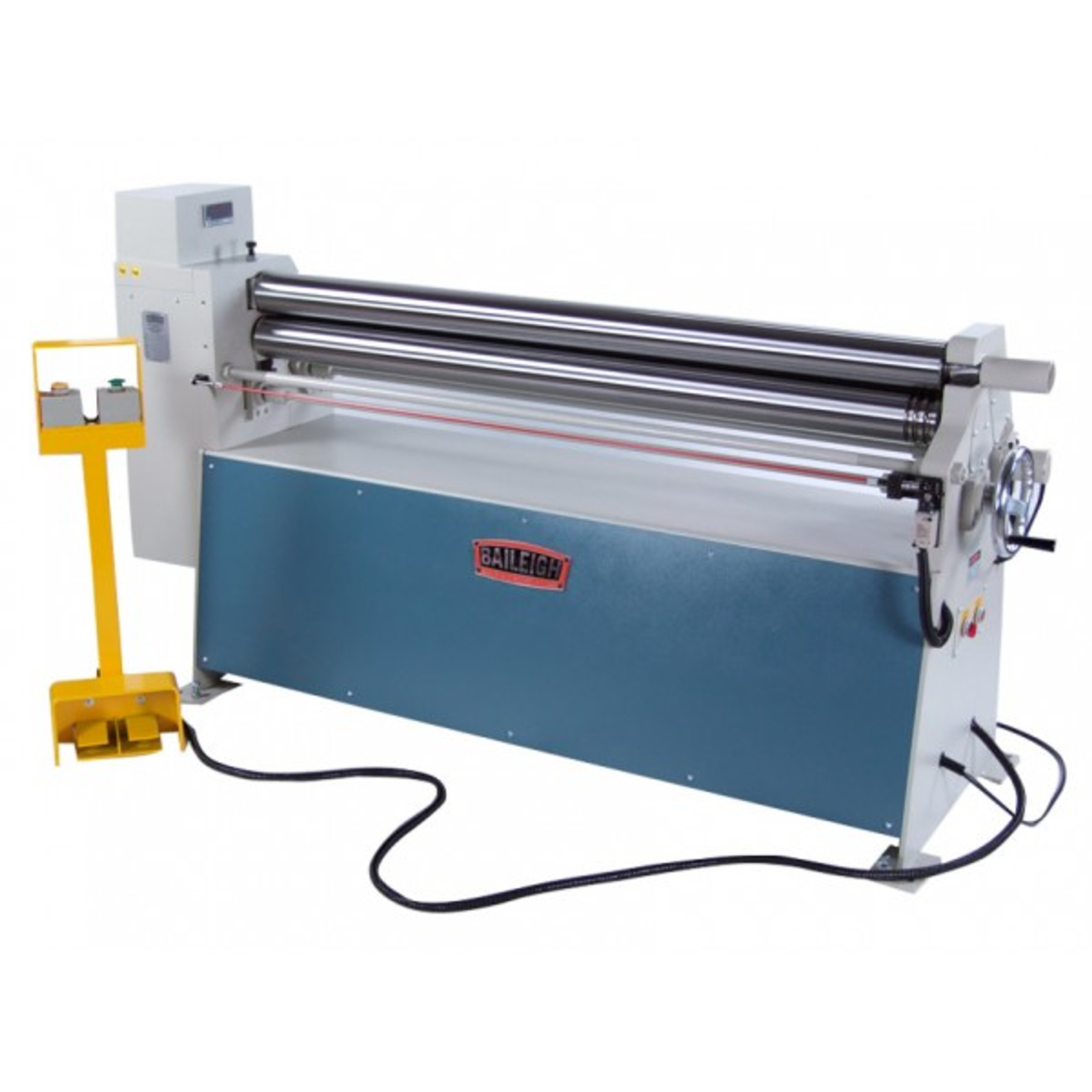

JPW Industries 1006546 | Plate Roller PR-514

The PR-514 is the perfect plate roll for small and medium applications. It comes standard with time-saving features, like a DRO, foot pedal controls, and an additional hydraulic motor.

JPW Industries - 1006546 - Features

• 5' working width.
• 14 gauge mild steel capacity across its full width.
• 2 hp 220-volt single-phase motor transfers power directly to the driven rolls.
• Second hydraulic motor controls the movement of the back roll.
• Remote control pedestal includes foot pedal controls and the buttons for advancing or retracting the back roll position.
• Digital readout displays back roll position so you can repeat bends easily.
• DRO is positioned at the head of the machine, giving you a good line of sight no matter where you’re standing.
• Rigid steel frame , machined to exacting tolerances, helps prevent deflection.
• Covered by a 1-year parts warranty.
• Includes lifetime technical support by phone from our team of reps with hands-on metalworking experience.

JPW Industries - 1006546 - Product Categories

• Baleigh Industrial
• Metal Forming
• Plate & Slip Rolls

JPW Industries - 1006546 - Specifications

Brand Name	Baleigh (JPW Industries)
Manufacturer Part Number	1006546
Item Description	Plate Roller PR-514
Item Number	PR-514
Forming Width	60"
Roll Speed	6 rpm.
Upper Roll Dia.	3.50"
Roll Adjustment Back	Hydraulic
Minimum Forming Dia	5.25"
Motor	2 hp
Wire Grooves	Yes
Capacity (Mild Steel)	14 ga. (.075")
Power	220V / 1-phase
Shipping Weight	1690lbs
Shipping Dimensions (Inches)	91x33x55
