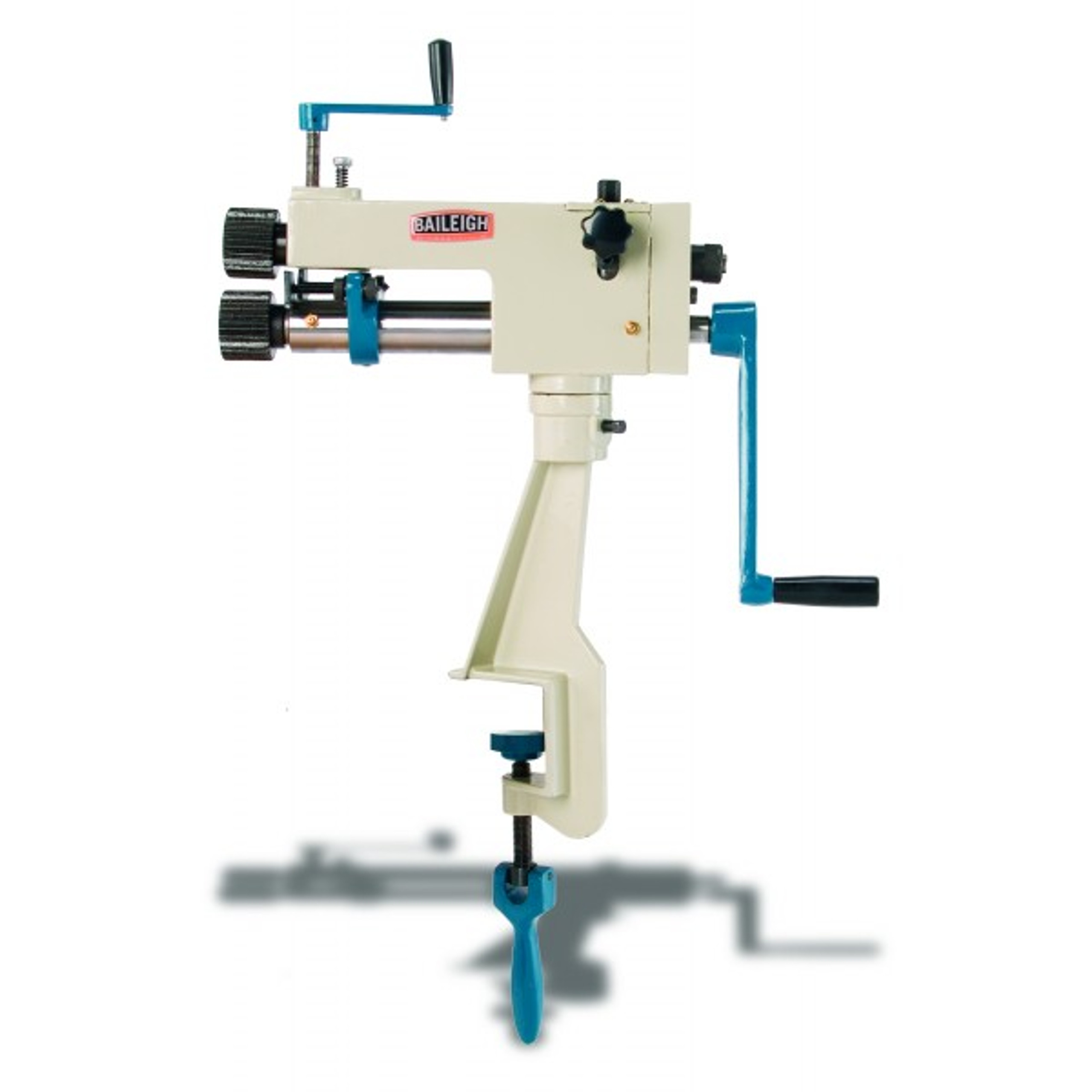

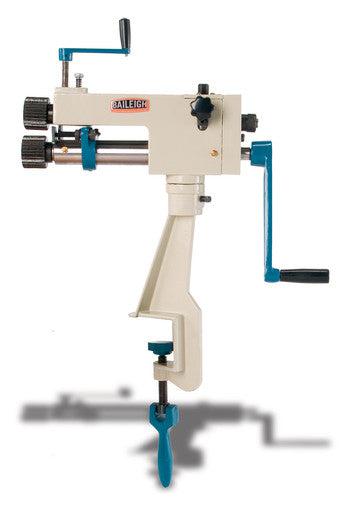

JPW Industries 1000936 | Bead Roller BR-22

Built with a cast iron body , this bench-mounted manual bead roller is one of the toughest models on the market. The BR-22 Baileigh Industrial bead roller is a must-have tool for any HVAC shop and includes 6 tooling sets.

JPW Industries - 1000936 - Features

• 22 gauge mild steel capacity.
• 7” throat depth.
• Roller head can swivel and pivot. Position it any way you want and get enough clearance.
• Manual crank handle moves the rolls and pulls the material through.
• You can feed the material from the left or right of the machine.
• 2 adjustable depth stops (one on each side) help you make straight, repeatable lines.
• Top knob lets you adjust the forming depth and bring the rolls together.
• Comes with 6 forming rolls , popular for HVAC projects: ¼” turning, ?” turning, wiring, crimping, burring, and ogee beads.
• Tooling changes are fast and simple.
• Base clamp can attach to your table or bench.
• Covered by a 1-year parts warranty.
• You can count on lifetime technical support by phone from a team of knowledgeable metalworkers.
• This metal bead roller and its replacement parts are usually in stock for fast shipping.
• Recommended for: HVAC ductwork applications, as well as hot rods and airplanes.

JPW Industries - 1000936 - Product Categories

• Baleigh Industrial
• Metal Forming
• Bead Rollers

JPW Industries - 1000936 - Specifications

Brand Name	Baleigh (JPW Industries)
Manufacturer Part Number	1000936
Item Description	Bead Roller BR-22
Item Number	BR-22
Throat Depth	7"
Capacity (Mild Steel)	22 ga.
Power	Manual
Shipping Weight	51lbs
Shipping Dimensions (Inches)	19x18x7
