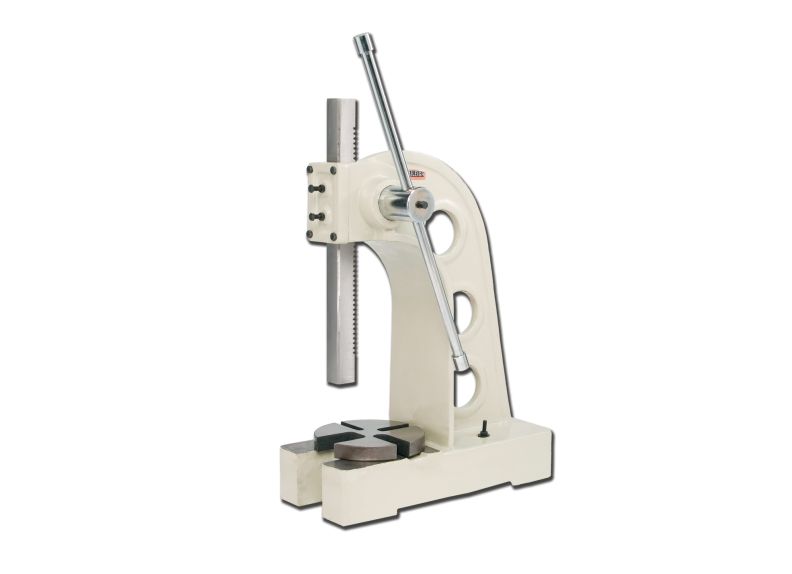

JPW Industries 1000264 | Arbor Press AP-5

We engineered the AP-5 manual arbor press to produce up to 5.6 tons of force and last for decades. A machined cast iron housing framework gives this manual sheet metal-forming press its “muscle” and increases its durability.

JPW Industries - 1000264 - Features

• Has a throat depth of 8.89” and accepts material up to 17.5” high.
• Thick 2” x 2” case-hardened ram transfers pressure without flex for maximum accuracy.
• Adjustable ram cap allows for gap adjustment of ram.
• 31” adjustable, single-leverage handle multiplies your force to produce strain-free pressure.
• Sturdy 2.375" pivot shaft supports smooth, powerful ram movement.
• Includes a durable 4-position bottom die plate to secure various broach sizes.
• You can remove the bottom plate to press items directly on the AP-5’s framework.
• Can be pedestal- or bench-mounted.
• Typically kept in stock for immediate shipment.
• The AP-5 Baileigh arbor press is covered by a 1-year warranty and lifetime technical support.
• Recommended for: Pressing bearings and bushings or broaching keyways in any fabrication or machine shop.
• Questions about this 5 ton arbor press? Feel free to give us a call at (920) 684-4990 and talk to a Baileigh expert.

JPW Industries - 1000264 - Product Categories

• Baleigh Industrial
• Metal Forming
• Presses

JPW Industries - 1000264 - Specifications

Brand Name	Baleigh (JPW Industries)
Manufacturer Part Number	1000264
Item Description	Arbor Press AP-5
Item Number	AP-5
Ram Size	2" x 2"
Throat Depth	8.89"
Maximum Material Height	15.75"
Capacity	5.6 tons
Maximum Arbor Height	2.75"
Power	Manual
Shipping Weight	400lbs
Ram Travel Per Revolution	8.5"
Shipping Dimensions (Inches)	48x45x43
