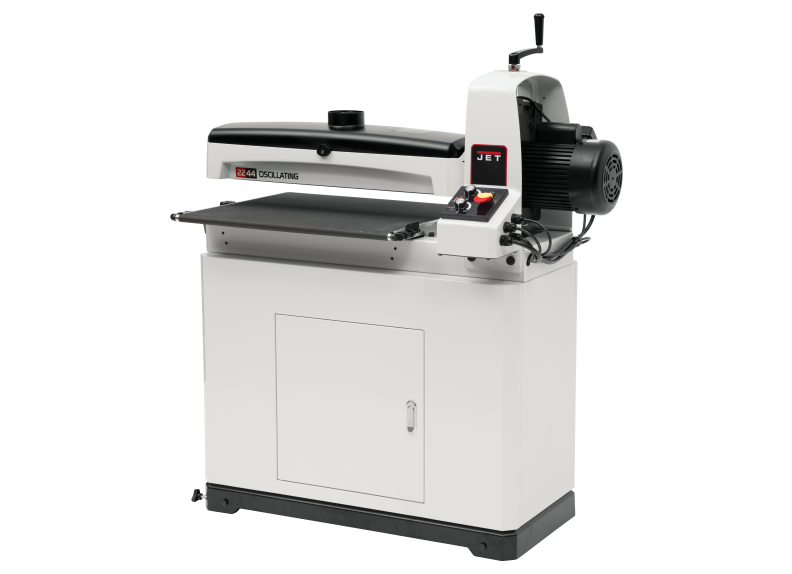

JET Tools 723544OSCK | JWDS-2244OSC Oscillating Drum Sander With Closed Stand

The newly re-designed 2244 Oscillating Drum Sander from JET has an exclusive oscillating feature that helps create the best sanding finish with the least amount of dust.

When in the oscillating mode, the sanding drum head oscillates from left to right which lowers heat build-up on the sanding belt, reducing loading and burning.

The innovative tool-less parallelism system keeps adjustments simple.

The worktable is easily positioned by a turn of the parallelism dial.

The Sandsmart conveyor system continuously monitors the load on the drum motor to prevent an overload situation.

The mirrored design of the dust hood optimizes dust collection preventing chips and dust from getting between your work-piece and the finish.

JET Tools - 723544OSCK - Features

• Self-Cooling Drum
• Exclusive variable speed oscillating drum moves from left to right—minimizing visual scratch patterns in workpieces and increasing the lifespan of abrasive paper
• Infinitely variable speed control of up to 10 feet per minute allows the user to choose the optimal feed rate
• Mobile cabinet features a heavy duty 45" x 24" footprint to increase stability and has a door to keep items stored securely
• One rotation of the top-position hand wheel adjusts the drum height by 1/16"
• Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and has 3/4" of oscillating stroke
• Redesigned conveyor system pulls the work piece through the sander instead of pushing
• Snipe is virtually eliminated thanks to the adjustable tension rollers that apply downward pressure to the work piece
• Tool less abrasive take-up clips make changing abrasives quick and easy

JET Tools - 723544OSCK - Specifications

Stock Number	723544OSCK
Drum Diameter (In.)	5
Dust Port Outside Diameter (In.)	4
Maximum Board Thickness (In.)	4
Minimum Board Length (In.)	2-3/8
Minimum Board Thickness (In.)	1/32
Motor Amps	15
Motor Power (HP)	1-3/4
Recommended Circuit Size (Amps.)	20
Weight (Lbs.)	216
