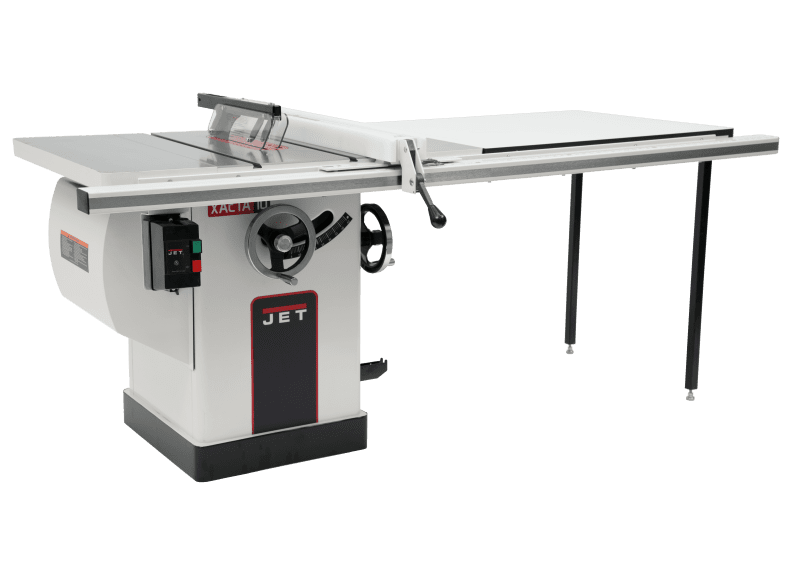

JET Tools 708675PK | Deluxe Xacta SAW 3HP, 1Ph, 50" Rip

If you've ever wondered about what a table saw can really do, look no further. Introducing the JET 10" Deluxe XACTA saw. The quick release riving knife and integrated push button arbor lock keeps the operator safe and more efficient. The Deluxe XACTA saw offers an upgraded Poly-V belt drive system for smooth operation and optimal power transfer, a fully shrouded blade for highly efficient dust collection. The 26" x 30" wings and deeper table gives you even more cast iron to work on. Also includes an on-board fence and miter gauge storage.

JET Tools - 708675PK - Features

• Deluxe miter gauge with adjustable positive stops and large soft grip handles provides large crosscutting capacity and accurate miters
• Heavy-duty chrome plated handwheels contribute to smooth trunnion/arbor movement
• Hinged motor cover on cabinet gives quick access to the motor and belts
• Independent leaf safety guard protects operator from blade while cutting, even at 45° tilt
• Left and right cast iron extension wings
• Powder coated paint for a long-lasting, chip-resistant finish
• Precision ground high luster cast iron table tops with front edge bevel for hassle-free workpiece positioning
• Rail-mounted magnetic switch is easy to reach and provides overload protection
• Wide stance heavy-duty trunnion for stability and smooth blade positioning
• Exclusive 50-in Commercial XACTA, Fence II with T-square design
• Quick-release riving knife greatly reduces binding and kickback risk
• Push button arbor lock for rapid blade change
• Shrouded blade increases dust collection efficiency
• Standard 11-in left and right cast-iron extension wings provides the largest table surface in its class
• Poly-V drive belt system delivers efficient, quiet operation
• Rail-mounted magnetic switch is easy to reach and provides overload protection
• Enclosed cabinet with built-in sealed storage drawer
• Hinged motor cover on cabinet gives quick access to the motor and belts
• Deluxe miter gauge with adjustable positive stops and large soft grip handles provides large crosscutting capacity and accurate miters
• Heavy-duty chrome plated hand wheels contribute to smooth trunnion and arbor movement
• Built-in 4-in port for dust collection
• Precision-ground, high-luster cast-iron table top with front edge bevel for hassle-free work piece positioning
• Left tilt, wide stance heavy-duty trunnion for stability and smooth blade positioning
• Independent leaf safety guard protects operator from blade while cutting - even at a 45, tilt
• Arbor wrench
• Powder-coated paint for a long-lasting, chip-resistant finish
• Includes:
• JTAS-10XL50-1DX, 3 HP 10-in Single Phase Left Tilt Deluxe XACTA Table Saw w/ 50-in XACTA, Fence II - 708675PK
• 50-in XACTA, Fence II

JET Tools - 708675PK - Specifications

Brand Name	JET Tools
Manufacturer Part Number	708675PK
Item Description	Deluxe Xacta SAW 3HP, 1Ph, 50" Rip
Blade Diameter (In.)	10
Dust Collection Minimum CFM Required (CFM)	350
Dust Port Outside Diameter (In.)	4
Maximum Depth of Cut at 45 Degrees (In.)	2-1/8
Maximum Diameter of Dado (In.)	8
Maximum Rip Right of Blade (In.)	50
Maximum Width of Dado (In.)	13/16
Miter Gauge Type	Deluxe
Model Number	JTAS-10XL50-1DX
Motor Amps	14.5
Motor Power (HP)	3
Motor Voltage (V.)	230
Prewired Voltage (V.)	230
Prop 65	Cancer and Reproductive Harm
Style (Type)	Cabinet
Table in Front of Saw Blade at Maximum Depth of Cut (In.)	10
Table Size (L x W) (In.)	29 x 20
Table Type	Cast Iron

JET Tools - 708675PK - Documents and Downloads

JET Tools 708675PK Specifications Sheet	Click to View
JET Tools 708675PK Manual	Click to View
