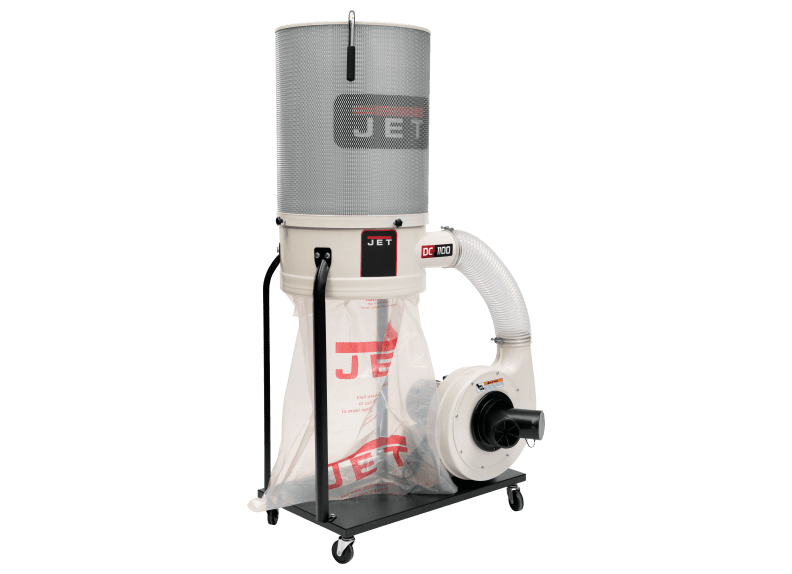

JET Tools 708659K | DC-1100VX-CK Dust Collector, 1.5HP 1PH 115/230V, 2-Micron Canister Kit

The JET DC-1100VX features the exclusive Vortex Cone which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The high air velocity (CFM) stands up to any competitive specifications, and the industrial controls are designed for years of durable use. Collection bags have a snap ring for fast installation and removal. Casters offer maneuverability within the shop.

JET Tools - 708659K - Features

• Eliminates premature filter clogging for sustained performance
• High air velocity (CFM) design stands up to any competitive specifications
• Includes four casters for maneuverability and total portability
• Industrial controls designed for years of trouble-free use
• Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
• Quick-connect collection bags with elastic band for fast, easy installation and removal
• Single-stage design for economical and quiet operation
• Vortex Cone improves chip separation and collector bag packing efficiency
• Vortex Cone improves chip separation and collector bag packing efficiency
• Eliminates premature filter clogging for sustained performance
• Single-stage design for economical and quiet operation
• Industrial controls designed for years of trouble-free use
• Quick-connect collection bags with elastic band for fast, easy installation and removal
• High air velocity (CFM) design stands up to any competitive specifications
• Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
• Includes four casters for maneuverability and total portability
• Includes:
• DC-1100VX-CK Vortex Dust Collector, 1.5HP 1PH 115/230V, 2-Micron Canister Kit - 708659K
• Resources:
• Manual

JET Tools - 708659K - Specifications

Brand Name	JET Tools
Manufacturer Part Number	708659K
Item Description	DC-1100VX-CK Dust Collector, 1.5HP 1PH 115/230V, 2-Micron Canister Kit
1-Hose Connection Diameter (In.)	6
2-Hoses Connection Diameter (In.)	4
Air Flow @ 4" (CFM)	1100
Bag Diameter (In.)	20
Collection Bag Capacity (Cu. Ft.)	5-3/10
Collection Bag Length (In.)	29
Efficiency (Micron)	2
Impeller Material	Steel
Model Number	DC-1100VX-CK
Motor Amps	11/5.5
Motor Power (HP)	1-1/2
Prewired Voltage (V.)	115
Prop 65	Cancer and Reproductive Harm
Sound Rating (Db.)	70 - 80
Static Pressure (Wc.)	10-1/2
Style (Type)	Canister
Velocity @ 4" (FPM)	12,571

JET Tools - 708659K - Documents and Downloads

JET Tools 708659K Specifications Sheet	Click to View
JET Tools 708659K Manual	Click to View
