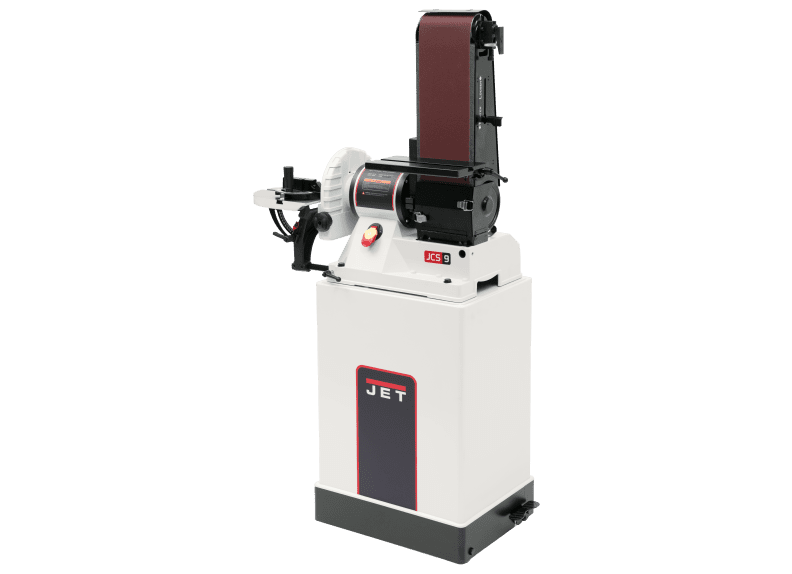

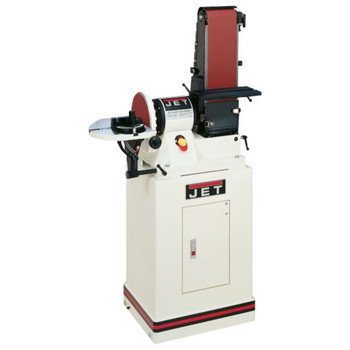

JET Tools 708597K | JSG-96CS, 6" x 48" Belt / 9" Disc Sander with Closed Stand, 3/4HP 1Ph, 115V

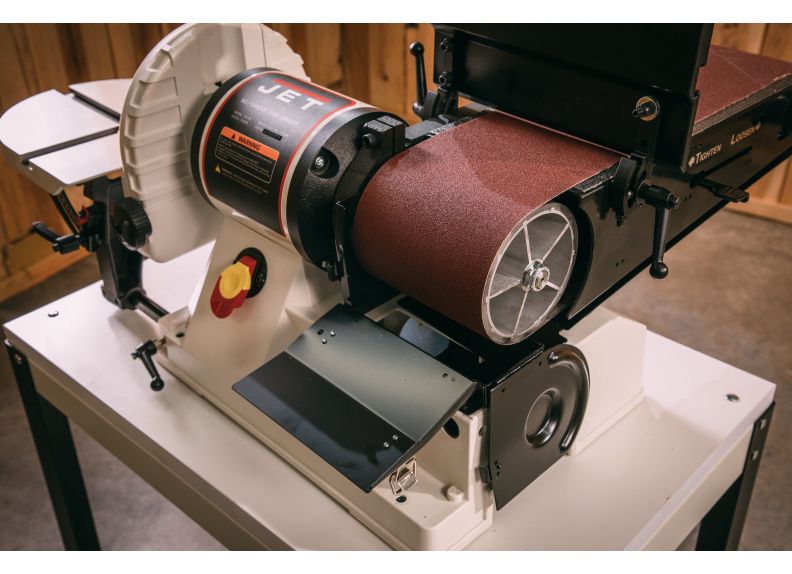

The unique JSG-96CS Sander combines a 9" disc and 6" x 48" belt for workshop versatility. While small and compact, the JSG-96 offers industrial 3/4 HP power while taking up a small footprint in your shop. A quick-release belt tension lever makes belt changes fast and easy while a quick-lock dust cover allows fast disc changes.

Industrial trolleys to help you move your hoist with ease

Brand Name - 708597K - Features

• Built-in handles for easier portability
• Drive drum is rubber-coated for a better grip on the sanding belt resulting in less slippage
• Exclusive dual thumbscrew belt tracking adjustment locks to keep belt on track during use
• Graphite covered steel platen runs cooler increasing machine and belt life
• Integrated locking wheels for easy mobility
• Large cast iron table has preset stops at 90° and 45° to let you use the belt sander vertically, horizontally or anywhere in between
• One-piece formed steel heavy-duty closed stand provides additional support and additional storage for abrasives
• Single 4" dust port on the back of the base collects dust effectively from both the belt and disc
• Specially designed belt guard allows full use of the 6" belt width and length
• Tracking adjustment knob with quick-lock handle keeps belt on track during use
• Designed for low maintenance and trouble-free operation through a wide range of beams
• For use with wide-flange H-beams, standard I-beams or curved track
• Multiple spacer washers make beam flange width adjustment quick and easy
• Rugged steel side plates feature built-in bumper guards
• Hardened wheels with lubricated for life, double sealed ball bearings
• Proof tested with test certificate
• Complies with OSHA, ANSI/ASME B30.11 and B30.17 standards
• Includes:
• 1-1/2-Ton Capacity Industrial-Duty Plain Trolley - 252015
• Beam Flange Width: 3-1/4-in - 8-in
• Beam Height: 4-in - 19-in
• Capacity: 1.5 Tons
• Min. Radius Curve: 43-in
• Ship Weight: 43 lbs.

JET Tools - 708597K - Specifications

Brand Name	JET Tools
Belt Table Tilt (Deg.)	10 Up, 45 Down
Disc Diameter (In.)	9.0000
Dust Port Outside Diameter (In.)	4
Model Number	JSG-96CS
Motor Amps	11
Motor Power (HP)	3/4
Prop 65	Cancer and Reproductive Harm
Style (Type)	Closed Stand

JET Tools - 708597K - Documents and Downloads

JET Tools 708597K Specifications Sheet	Click to View
JET Tools 708597K Manual	Click to View
