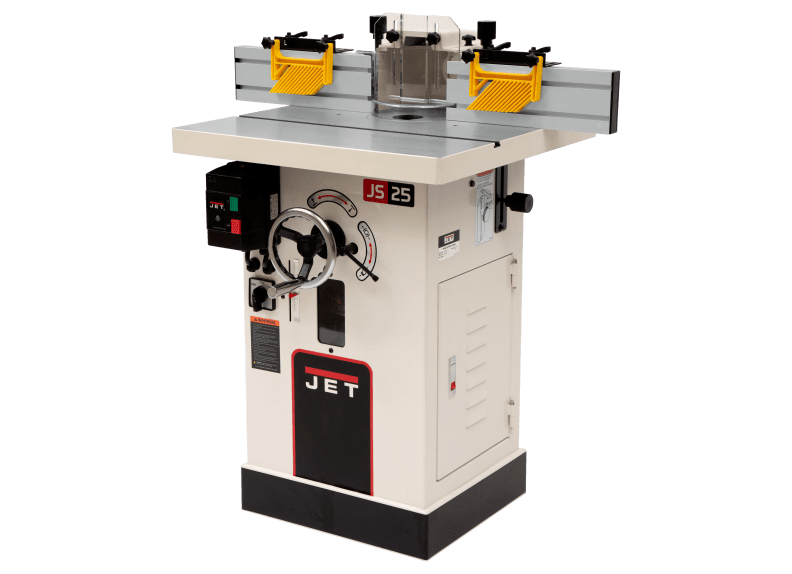

JET Tools 708309 | JWS-25X, JET Shaper, 3HP, 1PH

The new model JWS-25X Shaper features a powerful 3HP motor with magnetic controls. The large 25"x 25-1/2" precision ground cast iron table provides plenty of support. Safe, easy cutter set up is assisted by a positive detent spindle lock. The independently adjustable left and right fence has a built in 4" dust port.

JET Tools - 708309 - Features

• Extra large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
• Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
• Reversible spindle speeds for diverse shaping jobs
• Spindle lock for safe and easy cutter set up
• Starting Pins for irregular shaping
• Two-speeds let you select the best speed and torque for different cutter diameters
• V-belt transfers maximum power to the spindle
• Two-speeds let you select the best speed and torque for different cutter diameters
• Independently adjustable left and right fences, standard with a micro adjust control for precise positioning
• Large 25-in X 25-1/2-in precision ground cast iron table provides a durable work area
• Poly-V-belt transfers maximum power to the spindle
• Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
• Reversible spindle speeds for diverse shaping jobs
• Powerful 3HP, 1Ph motor with magnetic controls
• Starting pins for irregular shaping
• Extra large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
• 4-in Dust port built into fence for convenient hookup to any dust collection system
• Includes:
• JWS-25X, 3HP, 1Ph JET, Shaper - 708309

JET Tools - 708309 - Specifications

Brand Name	JET Tools
Manufacturer Part Number	708309
Item Description	JWS-25X, JET Shaper, 3HP, 1PH
Dust Collection Minimum CFM Required (CFM)	600
Dust Port Outside Diameter (In.)	4
Model Number	JWS-25X
Motor Amps	16
Motor Power (HP)	3
Motor Voltage (V.)	230
Prewired Voltage (V.)	230
Prop 65	Cancer and Reproductive Harm
Recommended Circuit Size (Amps.)	30
Spindle Travel (In.)	3-1/2
Table Height from Floor (In.)	33
Table Inserts (In.)	2
Table Opening Diameter (In.)	6-9/32
Table Size (L x W) (In.)	25-1/2 x 25

JET Tools - 708309 - Documents and Downloads

JET Tools 708309 Specifications Sheet	Click to View
JET Tools 708309 Manual	Click to View
