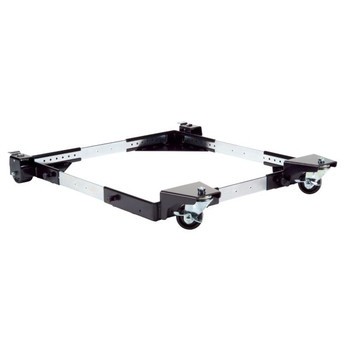

JET Tools 708119 | JMB-UMB-HD Universal Mobile base

The Mobile Base adds a new dimension of flexibility to your JET machines. Equipment previously considered immovable can easily be moved by only one person - rearrange your shop for special projects in just minutes. With 2 fixed and 2 swivel casters, the adjustable width and length let you configure the base to the tool for total support and portability. Trust genuine JET replacement parts when it's time to exchange a component.

The JET JLH Compact Lever Hoist integrates safety, durability and innovation enabling it to operate in the most demanding industrial environments. The lightweight design is achieved with a durable aluminum alloy housing that reduces weight for ease of transport. The dual pawl Weston style brake system splits the load to opposite sides of the ratchet gear for greater load security. Mechanical advantage is gained by the JET exclusive addition of the five gear drive train requiring less force to lift or secure a load. Included is a nylon carrying case for convenient transportation, reducing trips to the tool room and prevents any unnecessary damage to the hoist. The JET JLH Compact Lever Hoist is available in 1/4 ton and 1/2 ton capacities with standard lifts of 5, 10 and 15-ft (custom lifts available). Whether it's inverted, vertical, horizontal, or any other load angle, the JET JLH Compact Lever Hoist is the solution for your heavy-duty industrial needs.

Brand Name - 708119 - Features

• Spring-pin snap adjustment requires no tools for easy assembly
• Adjustable width and length let you configure the base to the tool for total support and portability
• Two fixed and two swivel casters provide easy maneuverability
• Strong, yet lightweight base can hold tools up to 1200 lbs.
• Expands from 24" x 24" to 34" x 34"
• Weston style dual pawl brake system's double pawl design increases safety by splitting the load to opposite sides of the ratchet gear for greater load security
• Industrial rated alloy steel hooks rotate 360 degrees for easy rigging. Hooks slowly stretch to indicate an overload situation increasing jobsite safety
• Nylon carrying case is included for convenient transportation, reducing trips to the tool room and prevents any unnecessary damage to the hoist
• With the work to weight ratio at 3.5 lbs., the 1/4 ton JLH Compact Lever Hoist can pull or hold a load more than 140 times its weight
• A 1/4 ton of compact pulling power that fits in the palm of your hand
• JET's exclusive five gear drive train requires less force to lift or secure a load
• Durable, impact resistant, Aluminum alloy housings makes the JLH Compact lever hoist one of the lightest hoists on the market
• Corrosive resistant grade 100 load chain is stronger than grade 80 load chain extending the life of the hoist
• Heat treated, case hardened and corrosive resistant coated internal parts extend the life of the hoist in the harshest of environments
• Compact design offers smaller body and lighter weight for low headroom applications and use in confined areas
• Complies with OSHA Regulations, ANSI / ASME B30.21 and HST-3 Standards
• Factory tested to 125% of capacity with load test certificate
• Includes:
• JLH-25-5, 1/4-Ton Compact Lever Hoist with 5-ft Lift - 181205
• Weight: 3.5 lbs.
• Capacity: 0.25 Tons
• Handle Length (In.): 5-3/4-in
• Headroom: 7-9/10-in
• Important: Before installation, read owner's manual for additional warnings and precautions. Not for use in an explosive environment
• Lever Pull Force (LBF): 45
• Load Chain (dia./mm): 3.2 x 9mm
• Number of Falls: 1
• Standard Lift: 5-ft

JET Tools - 708119 - Specifications

Brand Name	JET Tools
Model Number	INDUSTRIAL-DUTY UNIVERSAL MOBILE BASE
Prop 65	Cancer and Reproductive Harm

JET Tools - 708119 - Documents and Downloads

JET Tools 708119 Specifications Sheet	Click to View
JET Tools 708119 Manual	Click to View
