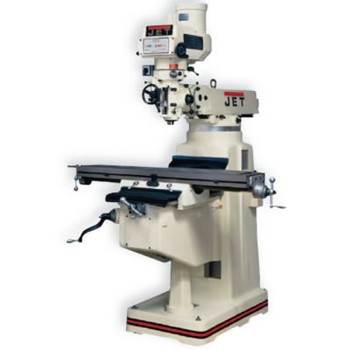

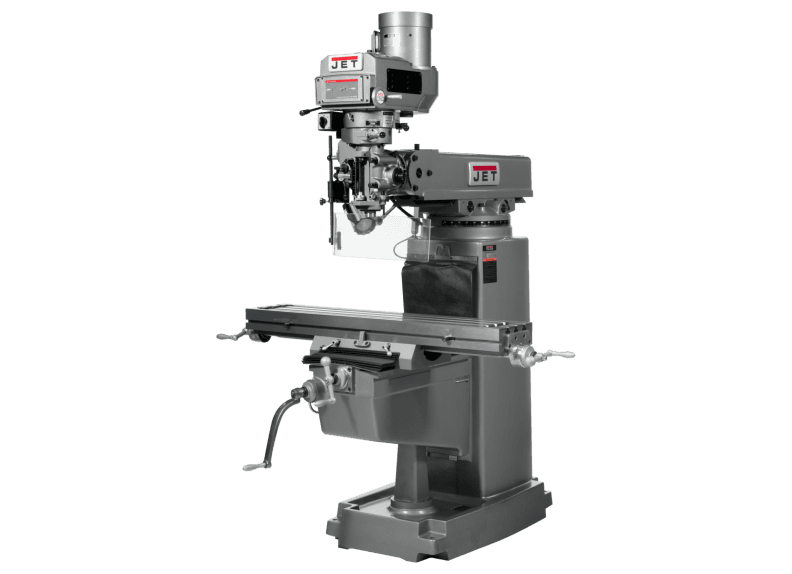

JET Tools 690307 | JTM-1050VS2 Mill With ACU-RITE 303 DRO With X and Y-Axis Powerfeeds

The JET JTM-1050VS2 features Certified Meehanite castings, a heavy-duty hardened and ground 10" x 50" table, and high precision class 7 precision bearings support the spindle. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty.

JET Tools - 690307 - Features

• Adjustable gibs throughout
• Chrome lead screws on X and Y axis
• Chrome-plated motor shaft with bearing support at end
• Hardened and ground square vertical knee ways and cross ways
• Heavy duty motor drive
• Large Diameter quill is chromed
• Locks on all moveable surfaces
• One shot lubrication system
• Spindle head is internally cooled
• Tolerance test sheet included
• Meehanite casting
• Hardened and ground table
• Chrome lead screws and Turcite B on X and Y axis
• Satin chrome finished dials
• Precision bored and honed milling head
• Large diameter quill is chromed
• High precision Class 7 spindle bearings
• Spindle head is internally cooled
• No Fuse breaker power connection
• Heavy duty motor drive
• Chrome plated motor shaft with bearing support at end
• One piece quill pinion and shaft
• Three stage power downfeed with automatic stop
• Heavy duty spindle brake
• Locks on all moveable surfaces
• Hardened and ground square vertical knee ways and cross ways
• Internal Coolant Tank Built (Coolant Pump Not Included)
• Includes:
• JTM-1050 Mill with 300S DRO, X and Y-TPFA - 690307
• Tolerance Test Sheet
• One Shot Lubrication System
• Way Covers
• Draw Bar
• Tool Box

JET Tools - 690307 - Specifications

Brand Name	JET Tools
Manufacturer Part Number	690307
Item Description	JTM-1050VS2 Mill With ACU-RITE 303 DRO With X and Y-Axis Powerfeeds
Collet Capacity	1/8 - 7/8
Distance Spindle to Column (Max.) (In.)	26
Max Distance Spindle to Table (In.)	19
Model Number	JTM-1050VS2
Motor (HP)	3 HP, 230/460V, 3Ph
Number of Axis	2
Overall Dimensions (L x W x H) (In.)	96 x 78 x 88
Powerfeed	X and Y-Axis
Prop 65	Cancer and Reproductive Harm
Quill Diameter (In.)	3-3/8
Quill Down Feed Rates (IPR)	.0015 - .003 - .006
Range of Spindle Speeds (RPM)	70 - 3,800
Spindle Taper (In. x TPI)	R-8
Spindle Travel (In.)	5
Style (Type)	Variable Speed R8
T-Slot Centers (In.)	2-1/2
Table Cross Travel (In.)	15-1/4
Table Longitudinal Travel (In.)	35
Table Longitudinal Travel With Powerfeed (In.)	29-3/4
Table Size (L x W) (In.)	10 x 50
Travel of Knee (In.)	14-1/4
Travel of Ram (In.)	20-1/2
Weight (Lbs.)	2900
Work Table Weight Capacity (Lbs.)	720
